A3030 | Pressure switch/gage | range 0-30" w.c. | Dwyer Instruments

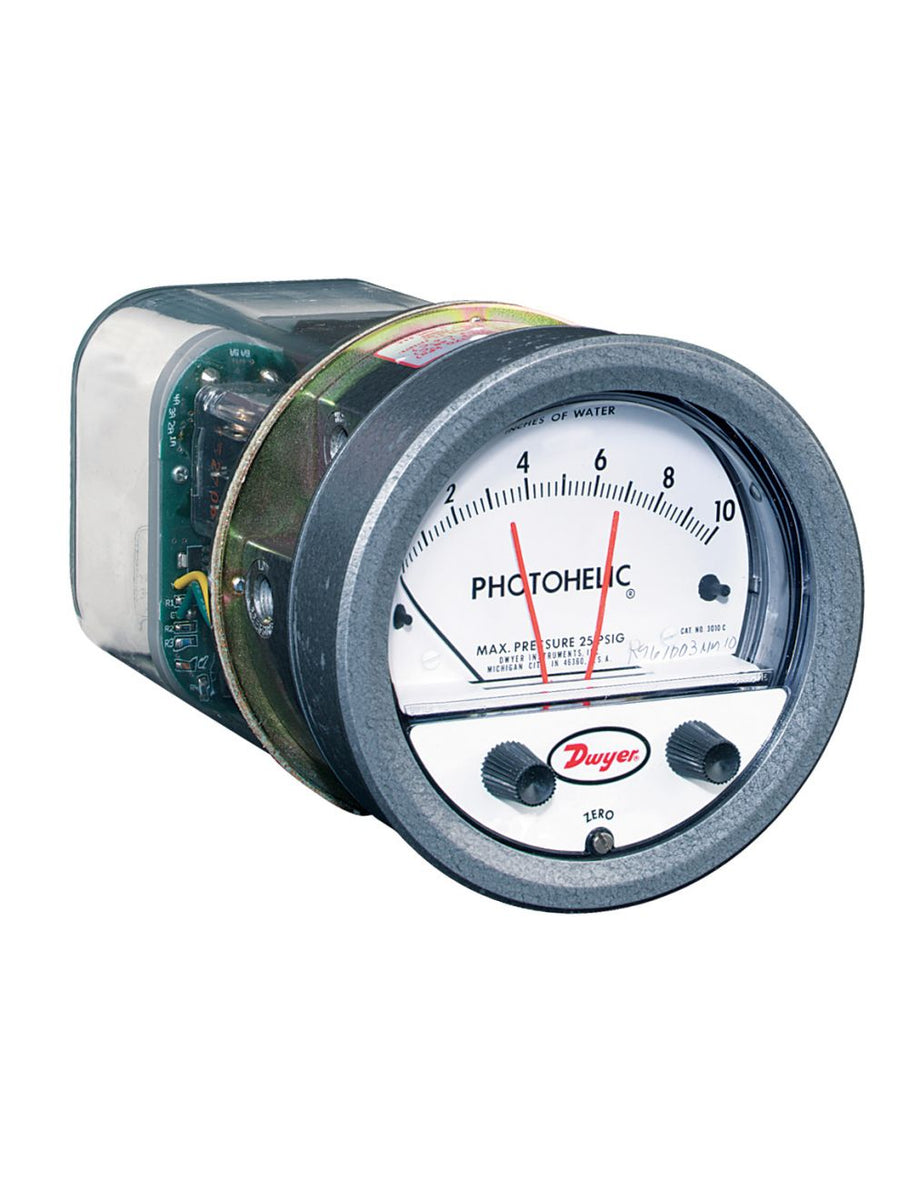

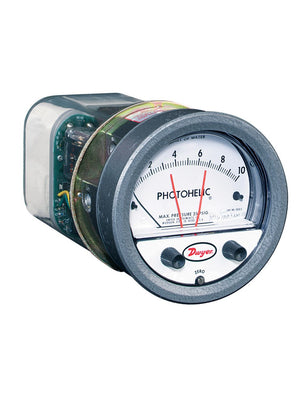

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A3030

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments A3030 Documents

Instruction Manual (3000)Instruction Manual (A3000)Series A3000 Catalog Page More Info

Overview

Details for A3030

Dwyer Instruments A3030 0/30"WC Photohelic # Sw/Gage The Dwyer Instruments A3030 Photohelic gauge is a reliable and accurate pressure gauge designed for measuring low air or non-combustible gas pressures. With a measuring range of 0 to 30"WC, this gauge is ideal for a variety of industrial applications. Key Features: - Measures low air or non-combustible gas pressures - Measuring range: 0 to 30"WC - High accuracy and reliability - Easy-to-read dial - Compact and portable design Applications: - Measuring pressure in HVAC systems - Monitoring pressure in industrial processes - Testing and calibrating equipment - Educational purposes our HVAC supply store offers the Dwyer Instruments A3030 Photohelic gauge at the best price, with fast shipping and excellent customer service. Order yours today!

Series A3000 Photohelic® Pressure Switch/Gage

3-in-1 Indicating Gage, Lo-limit and Hi-limit Control

The Series A3000 Photohelic® Switch/Gages function as versatile, highly repeatable pressure switches combined with a precise pressure gage employing the time-proven Magnehelic® gage design. The Photohelic® switch/gage measures and controls positive, negative or differential pressures of air and compatible gases. Standard models are rated to 25 psig (1.7 bar) with options to 35 (2.4) or 80 (5.5 bar) psig. Two phototransistor actuated, DPDT relays are included for low/high limit control. Easy to adjust set point indicators are controlled by knobs located on the gage face. Individual set point deadband is one pointer width - less than 1% of full scale. Set points can be interlocked to provide variable deadband - ideal for control of fans, dampers, etc. Gage reading is continuous and unaffected by switch operation, even during loss of electrical power. Choose from full scale pressure ranges from a low 0-.25 in (0-6 mm) w.c. up to 30 psi (21 bar).

NIST CALIBRATION available in Product Configurator.

Please see Series AT-A3000 for ATEX approved.

DID YOU KNOW that you can add YOUR logo to our Photohelic® Switch/Gage, call customer service for details.

Product Applications

Air Conditioning Systems
Clean Rooms
Fume Exhaust Systems

Bezel and front cover (with set point knobs and zero adjustment screw) removed to expose Photohelic® switch/gage set point mechanism. Cover is clear polycarbonate plastic.
Gage pointer and light shutter are mounted on helix and balancing counterweight. Shutter passes through slot in optical limit switch to expose phototransistors to integral infrared light source or mask them depending on applied pressure.
Light shield effectively protects phototransistors from strong outside light sources yet allows free pointer movement. It also gives interior a clean "finished" look.
Optical limit switches are used for reliability and long service life. Attached directly to set pointers, they are individually aligned to assure precise switching accuracy.
Semi-Flexible drive shaft connects to set point knobs.
Zero adjustment screw connects to screw in cover to adjust zero pressure reading.
Plastic enclosure protects electronic components and electrical connections.
Polycarbonate connection or terminal board is self-extinguishing.
Glass epoxy printed circuit boards for durability and permanence.
Load relays are DPDT with latching feature for maximum application versatility.
Electronics are designed to operate on 50/60 Hz, 120 volt current with 10% over or under voltage. Special units for other voltages are available.
Switch set pointers show switch settings at all times.
Spring loaded friction clutch prevents operator damage of set point mechanism.
3-in-1 instrument allows the reduction of several instruments with one product, saving inventory, installation time and money.
Patented design and 1% full scale dead band provides quick response to pressure changes means no delay in switching and chatter-free operation.
A wide range of models that can meet pressure measurement specifications from low to very high.

Specifications

Series: A3000 Photohelic® Pressure Switch/Gage
Category/Type: Pressure
Type: Differential Pressure
Series: A3000 Photohelic® Pressure Switch/Gage
: GAGE SPECIFICATIONS
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult Factory.
Accuracy: ±2% of FS at 70°F (21.1°C). ±3% on -0 and ±4% on -00 models.
Pressure Limits: -20" Hg. to 25 psig (-0.677 to 1.72 bar). MP option; 35 psig(2.41 bar); HP option; 80 psig (5.52 bar).
Temperature Limits: 20 to 120°F. (-6.67 to 48.9°C). -20 to 120°F (-28 to 48.9°C) with low temperature option.
Process Connections: 1/8" female NPT.
Size: 4" (101.6 mm) dial face; 5" (127 mm) O.D. x 8-1/4" (209.55 mm).
Weight: 4 lb (1.81 kg).
: SWITCH SPECIFICATIONS
Switch Type: Each setpoint has 2 Form C relays (DPDT).
Repeatability: ±1% of FS.
Electrical Rating: 10 A @ 28 VDC; 10 A @ 120; 240 VAC.
Electrical Connections: Screw terminals. Use 167°F (75°C) copperconductors only.
Power Requirements: 120 VAC; 50/60 Hz; 240 VAC & 24 VAC poweroptional.
Mounting Orientation: Diaphragm in vertical position. Consult factory forother position orientations.
Set Point Adjustment: Adjustable knobs on face.
Agency Approvals: CE; CSA; UL.
