A1VS-14 | Economical pressure switch | set point range 6-28" Hg (-20 to -94 kPa) | ±1.2" Hg (-4 kPa) repeatability | 3-14" Hg (-10 to -47 kPa) deadband. | Dwyer Instruments

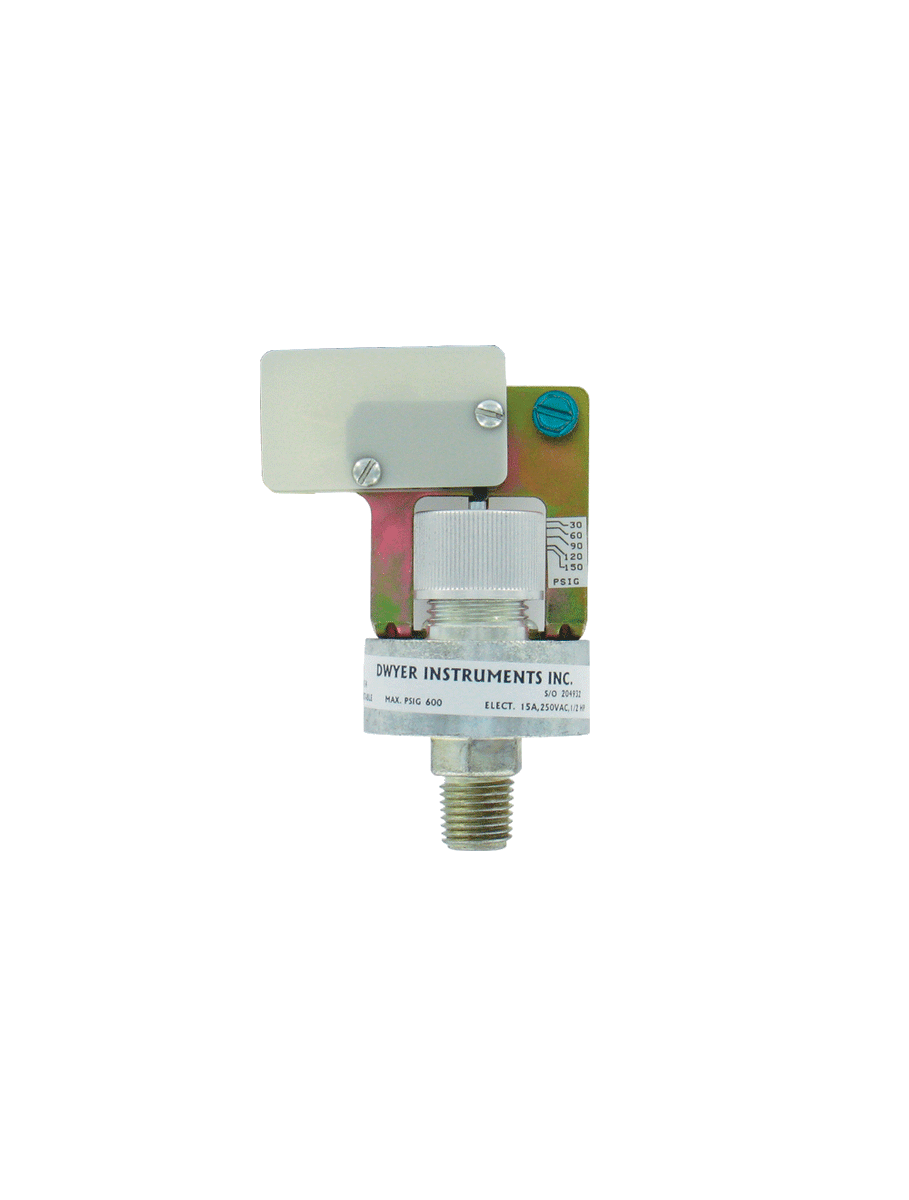

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A1VS-14

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments A1VS-14 Documents

A1PS/A1VS Series A1PS/A1VS Catalog Page More Info

Overview

Details for A1VS-14

The Dwyer Instruments A1VS-14 Pressure Switch monitors pressures from 6-28"Hg, making it ideal for a variety of industrial applications. Its durable construction ensures reliable operation in demanding environments, and its compact design allows for easy installation in space-constrained areas. The A1VS-14 features a single-pole, double-throw (SPDT) switch that provides ON/OFF control of equipment based on pressure changes within the system. This pressure switch offers precise pressure control, ensuring optimal system performance and safety. Our HVAC supply store offers competitive pricing and fast shipping, making it your trusted source for industrial products. Shop now to enhance the efficiency and reliability of your operations.

SERIES A1PS/A1VS ECONOMICAL PRESSURE SWITCH

Vacuum and Compound Ranges Available, Adjustable Set Point

Series A1PS/A1VS Economical Pressure Switches are designed with a 15 Amp SPDT switch for direct control of pumps and motors. Available in pressure, vacuum, or compound ranges, the switches offer a field adjustable set point. Easily adjust the switch by aligning the top of the self locking adjusting nut with the desired setting indicated on the adjacent range scale. Connection is 1/4" male NPT for quick installation and can be mounted in any position.

Product Applications

OEM
Compressors
Motor control
Process equipment
Pump control

15 A contact allows direct control reducing costs and reliability by having to introduceadditional contacts and relays
Field adjustable reduces installation time bring application on-line faster

Specifications

Series: A1PS/A1VS ECONOMICAL PRESSURE SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: A1PS/A1VS ECONOMICAL PRESSURE SWITCH
Service: Compatible liquids or gases.
Wetted Materials: Diaphragm: Buna-N; Body with Fitting: Zinc alloy; chromate finish.
Temperature Limits: -31 to 185°F (-35 to 85°C).
Pressure Limits: 600 psig.
Vacuum Limits: 29.9" Hg (vacuum and compound models only).
Switch Type: SPDT snap action.
Electrical Ratings: 15 A (resistive) @ 250 VAC; 1/2 HP @ 250 VAC.
Electrical Connections: Three screw terminals.
Process Connection: 1/4" male NPT.
Set Point: Field adjustable via knurled screw cap.
Cycling: Not to exceed 1 Hz.
Sensor Element: Diaphragm.
Weight: 7.4 oz (209 g).
Agency Approvals: UL.
