A1PS-24 | Economical pressure switch | set point range 3-40 psi (21-276 kPa) | ±1.0 psi (7 kPa) repeatability | 2-5 psi (14-34 kPa) deadband. | Dwyer Instruments

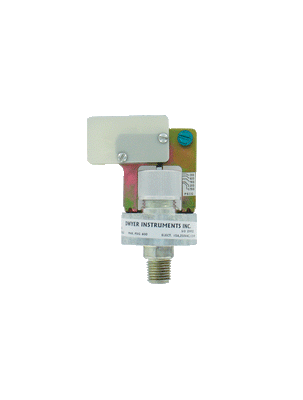

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A1PS-24

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments A1PS-24 Documents

A1PS/A1VS Series A1PS/A1VS Catalog Page More Info

Overview

Details for A1PS-24

Dwyer Instruments A1PS-24 ECO Press Switch (33-40 PSI) The Dwyer Instruments A1PS-24 ECO Press Switch is a reliable and accurate pressure switch designed for industrial applications. It features a set point range of 33 to 40 PSI, making it ideal for controlling pressure in a wide range of systems. The A1PS-24 is constructed with a durable brass body and stainless steel diaphragm, ensuring long-lasting performance in demanding environments. Key Features and Benefits: Set point range: 33-40 PSI Brass body and stainless steel diaphragm for durability UL and CSA approved for safety and reliability Easy to install and maintain Widely used in industrial applications such as pumps, compressors, and hydraulic systems Order your Dwyer Instruments A1PS-24 ECO Press Switch today from our HVAC supply store and benefit from our competitive prices and fast shipping. We offer a comprehensive selection of industrial products to meet your maintenance and engineering needs.

SERIES A1PS/A1VS ECONOMICAL PRESSURE SWITCH

Vacuum and Compound Ranges Available, Adjustable Set Point

Series A1PS/A1VS Economical Pressure Switches are designed with a 15 Amp SPDT switch for direct control of pumps and motors. Available in pressure, vacuum, or compound ranges, the switches offer a field adjustable set point. Easily adjust the switch by aligning the top of the self locking adjusting nut with the desired setting indicated on the adjacent range scale. Connection is 1/4" male NPT for quick installation and can be mounted in any position.

Product Applications

OEM
Compressors
Motor control
Process equipment
Pump control

15 A contact allows direct control reducing costs and reliability by having to introduceadditional contacts and relays
Field adjustable reduces installation time bring application on-line faster

Specifications

Series: A1PS/A1VS ECONOMICAL PRESSURE SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: A1PS/A1VS ECONOMICAL PRESSURE SWITCH
Service: Compatible liquids or gases.
Wetted Materials: Diaphragm: Buna-N; Body with Fitting: Zinc alloy; chromate finish.
Temperature Limits: -31 to 185°F (-35 to 85°C).
Pressure Limits: 600 psig.
Vacuum Limits: 29.9" Hg (vacuum and compound models only).
Switch Type: SPDT snap action.
Electrical Ratings: 15 A (resistive) @ 250 VAC; 1/2 HP @ 250 VAC.
Electrical Connections: Three screw terminals.
Process Connection: 1/4" male NPT.
Set Point: Field adjustable via knurled screw cap.
Cycling: Not to exceed 1 Hz.
Sensor Element: Diaphragm.
Weight: 7.4 oz (209 g).
Agency Approvals: UL.
