A-421 | Static Pressure Pickup | Dwyer Instruments

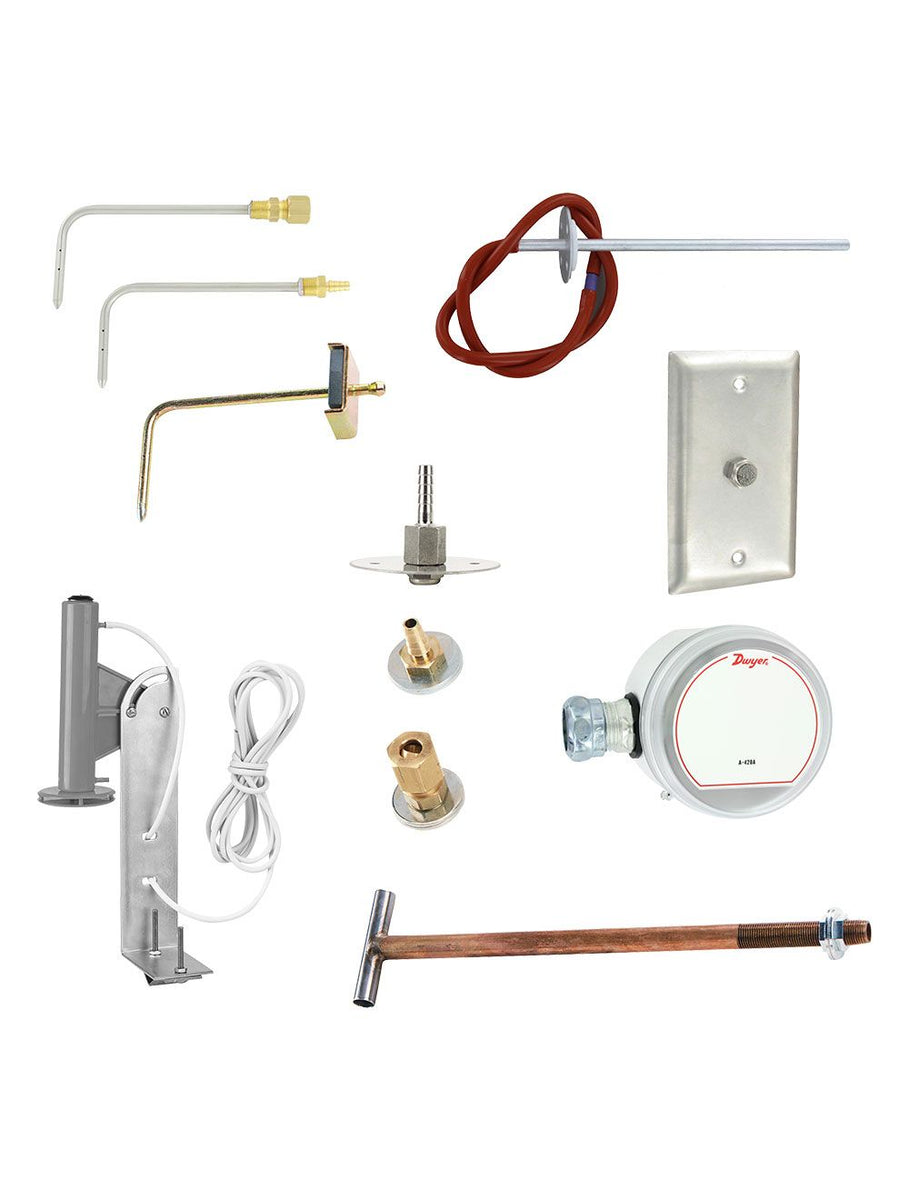

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-421

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments A-421 Documents

A-420 A-465 A-306 Static Pressure Acc Static Pressure Tips More Info

Overview

Details for A-421

A-421 Static Pressure Tip by Dwyer Instruments The A-421 Static Pressure Tip from Dwyer Instruments is a precision-engineered measurement tool designed for accurately measuring static pressure in various industrial applications. Made from durable materials and featuring a compact design, it offerså¯é çš„and precise readings in demanding environments. Key Features and Benefits: * Designed for measuring static pressure * Compact size and lightweight construction * Durable construction for extended service life * Provides precise and accurate measurements * Easy to install and operate Applications: * HVAC systems * Ductwork and piping * Industrial machinery and equipment * Laboratory and research settings Technical Specifications: * Material: Stainless steel * Pressure Range: Up to 100 inches of water column * Accuracy: Â±2% of full scale * Resolution: 0.1 inches of water column Our HVAC supply store is your trusted supplier for the A-421 Static Pressure Tip and other industrial measurement tools. We offer competitive prices and fast shipping to ensure your operations run smoothly. Contact us today to place your order and experience the difference in quality and service.

STATIC PRESSURE TIPS & ACCESSORIES

Senses Static Pressure

These sensors are for use with manometers, Magnehelic® gages, pressure switches, and other controllers to pick up or sense static pressure drop across air filters and cooling coils, blower input, discharge pressures, etc. The angled tips shown have 4" insertion depth. Each has four radially drilled .040" sensing holes. All except Model A-303 mount in 3/8" hole in duct. For portable use, a magnet holds No. A-303 in place. No. A-305 is used where a very low actuation or sensing point is required on a pressure switch or gage or where response time is critical. No. A-307 and A-308 are suitable for use in low-velocity systems or where the need for accuracy is less critical.
