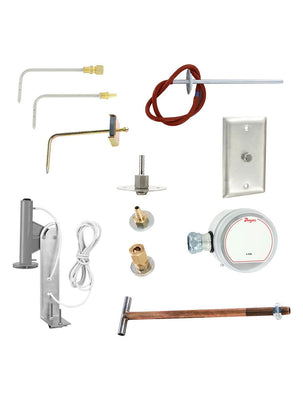

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-418A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments A-418A Documents

A-420 A-465 A-306 Static Pressure Acc Static Pressure Tips More Info

Overview

Details for A-418A

Dwyer Instruments A-418A Static Pressure Pickup Plate The Dwyer Instruments A-418A Static Pressure Pickup Plate is a rugged sensor designed to measure static pressure in various ducts or pipes. Constructed from durable materials, this plate offers reliable and accurate readings in challenging industrial environments. The A-418A features a diaphragm-style pickup with integral pulsation dampener, ensuring precise pressure measurement even in fluctuating conditions. The plate's compact size facilitates easy mounting in tight spaces. It comes with 1/4" NPT inlet and outlet ports for versatile connection options. This pickup plate is ideal for monitoring pressure levels in industrial processes, HVAC systems, and other applications requiring accurate static pressure measurement. Its high-quality construction ensures reliable operation over an extended lifespan. Technical Specifications: * SKU: A-418A * Pressure Range: -10" to +10" w.c. * Accuracy: Â±2% of full scale * Response Time: <1 sec * Mounting: 1/4" NPT * Material: Stainless steel and aluminum Enhance your industrial monitoring system with the Dwyer Instruments A-418A Static Pressure Pickup Plate. Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial supplies.

STATIC PRESSURE TIPS & ACCESSORIES

Senses Static Pressure

These sensors are for use with manometers, Magnehelic® gages, pressure switches, and other controllers to pick up or sense static pressure drop across air filters and cooling coils, blower input, discharge pressures, etc. The angled tips shown have 4" insertion depth. Each has four radially drilled .040" sensing holes. All except Model A-303 mount in 3/8" hole in duct. For portable use, a magnet holds No. A-303 in place. No. A-305 is used where a very low actuation or sensing point is required on a pressure switch or gage or where response time is critical. No. A-307 and A-308 are suitable for use in low-velocity systems or where the need for accuracy is less critical.
