A-306 | Outdoor static pressure sensor | includes 50' vinyl tubing | mounting bracket and hardware. Red sensor. | Dwyer Instruments

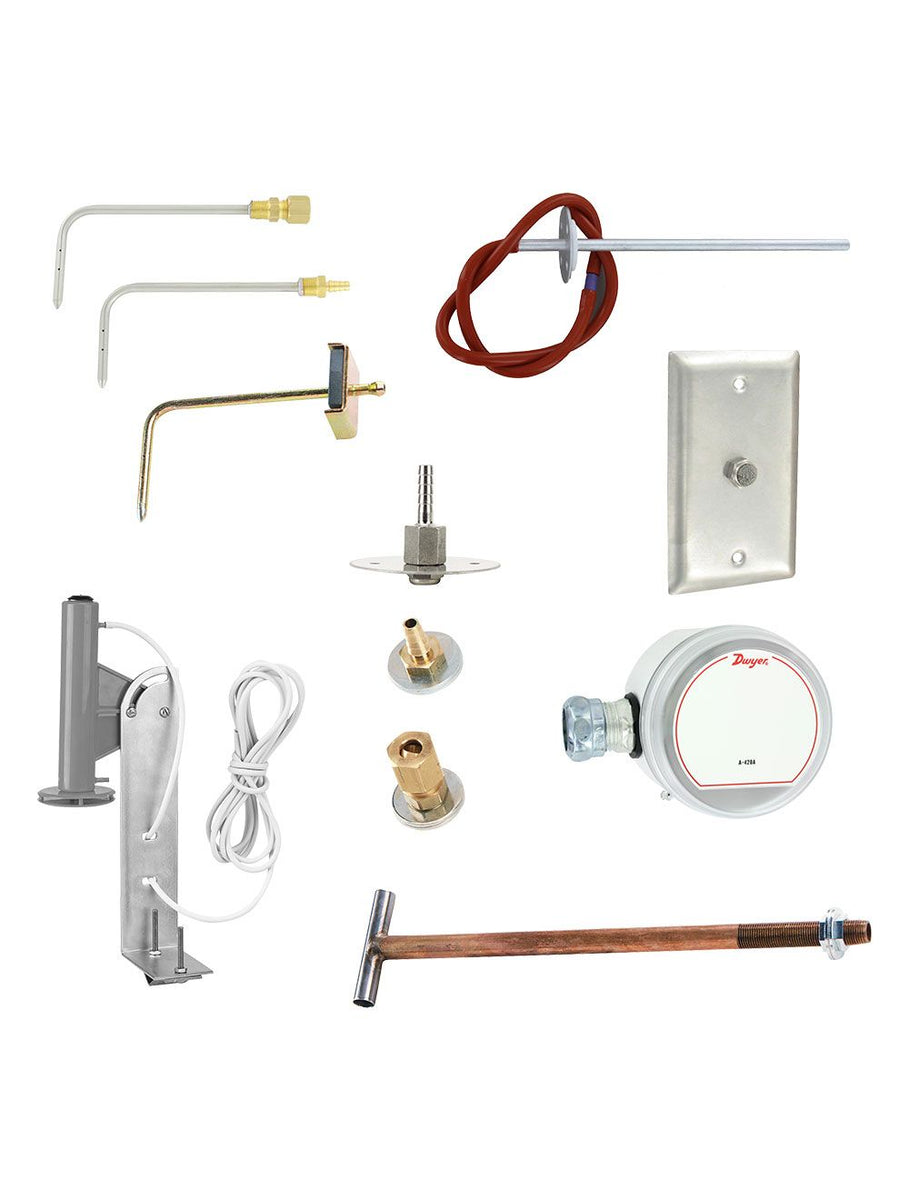

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-306

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments A-306 Documents

A-420 A-465 A-306 Static Pressure Acc Static Pressure Tips More Info

Overview

Details for A-306

Dwyer Instruments A-306 Outdoor Static # Sen W/50'Tube The Dwyer Instruments A-306 is a static pressure sensor with a 50-foot tube, designed for outdoor use. It is ideal for measuring static pressure in HVAC systems, ductwork, and other industrial applications. The A-306 features a rugged construction with a stainless steel housing and a brass sensing element, making it resistant to harsh environments and corrosive gases. It has an accuracy of Â±5% of full scale and a range of 0 to 50 inches of water column (inwc). The 50-foot tube allows for remote monitoring of static pressure, making it easy to take measurements in hard-to-reach areas. The sensor has a 1/8" NPT male connection and is compatible with most pressure gauges and transmitters. Overall, the Dwyer Instruments A-306 is a versatile and reliable static pressure sensor for outdoor applications. Its rugged construction, high accuracy, and remote monitoring capability make it an excellent choice for industrial engineers and maintenance professionals seeking a dependable and accurate pressure measurement solution. Our HVAC supply store offers the best prices and fast shipping for the Dwyer Instruments A-306. Shop now!

STATIC PRESSURE TIPS & ACCESSORIES

Senses Static Pressure

These sensors are for use with manometers, Magnehelic® gages, pressure switches, and other controllers to pick up or sense static pressure drop across air filters and cooling coils, blower input, discharge pressures, etc. The angled tips shown have 4" insertion depth. Each has four radially drilled .040" sensing holes. All except Model A-303 mount in 3/8" hole in duct. For portable use, a magnet holds No. A-303 in place. No. A-305 is used where a very low actuation or sensing point is required on a pressure switch or gage or where response time is critical. No. A-307 and A-308 are suitable for use in low-velocity systems or where the need for accuracy is less critical.
