A-301-C | Static pressure tip | for 1/4" metal tubing connection with 12" insertion depth. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-301-C

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments A-301-C Documents

A-420 A-465 A-306 Static Pressure Acc Static Pressure Tips More Info

Overview

Details for A-301-C

Dwyer Instruments A-301-C Static Pressure Tip The A-301-C Static Pressure Tip is a 12" insert designed for accurate measurement of static pressure. Its robust construction and precision design make it an essential tool for industrial engineers and maintenance professionals. Key Features: * 12" insertion length for precise measurement * Rugged construction for durability in harsh environments * Easy installation and maintenance * Compatible with most manometers and gauges Applications: * Measuring static pressure in ductwork and piping * Monitoring air flow and pressure in HVAC systems * Verifying pressure differentials in clean rooms and laboratories * Calibrating pressure gauges and transmitters Technical Specifications: * Material: Stainless steel * Length: 12" * Diameter: 0.125" * Operating temperature range: -40Â°C to 120Â°C (-40Â°F to 248Â°F) Benefits: * Improves accuracy and reliability of pressure measurements * Ensures optimal performance of HVAC systems * Facilitates compliance with industry standards and regulations * Reduces downtime and maintenance costs Our HVAC supply store - Your Source for Industrial Products Our HVAC supply store is your trusted source for the best prices and fastest shipping on Dwyer Instruments and other industry-leading products. Contact us today to learn more or place your order.

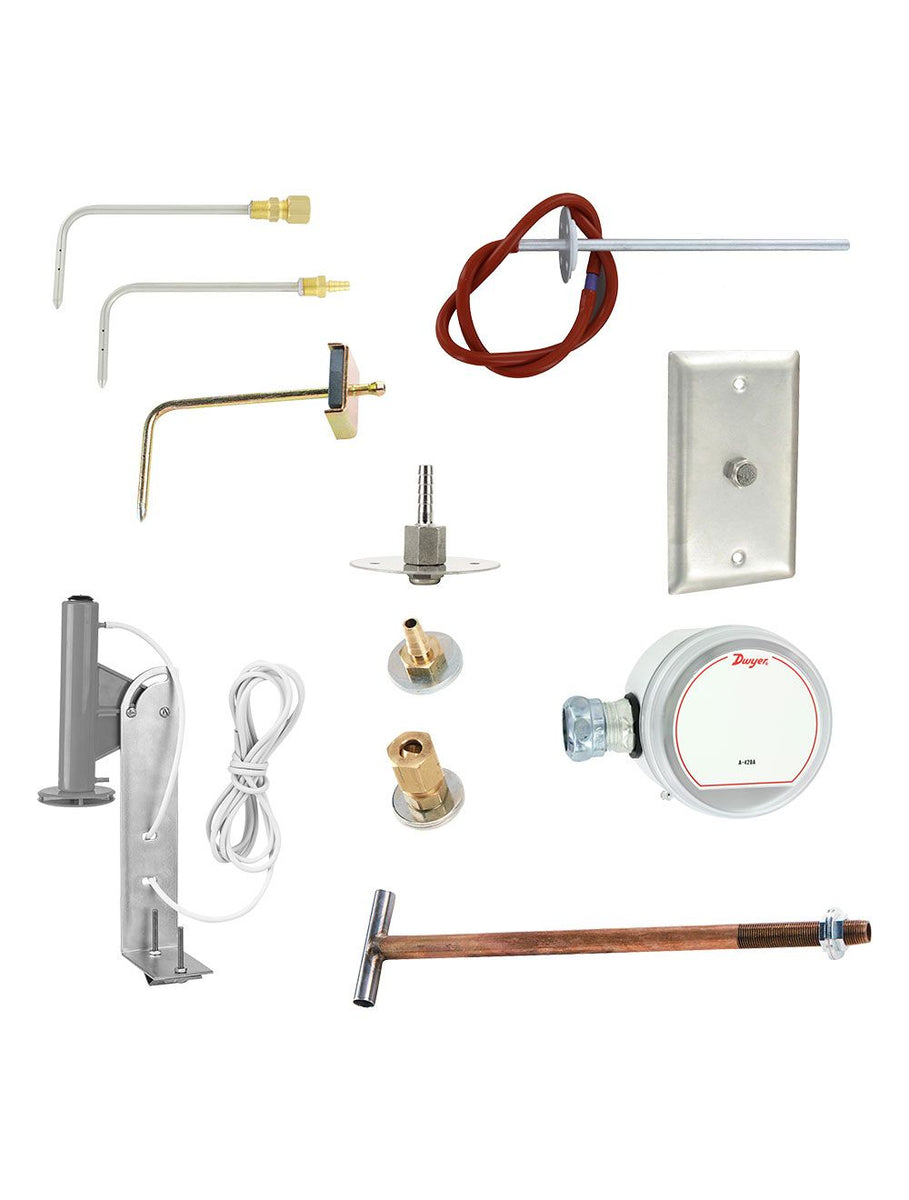

STATIC PRESSURE TIPS & ACCESSORIES

Senses Static Pressure

These sensors are for use with manometers, Magnehelic® gages, pressure switches, and other controllers to pick up or sense static pressure drop across air filters and cooling coils, blower input, discharge pressures, etc. The angled tips shown have 4" insertion depth. Each has four radially drilled .040" sensing holes. All except Model A-303 mount in 3/8" hole in duct. For portable use, a magnet holds No. A-303 in place. No. A-305 is used where a very low actuation or sensing point is required on a pressure switch or gage or where response time is critical. No. A-307 and A-308 are suitable for use in low-velocity systems or where the need for accuracy is less critical.
