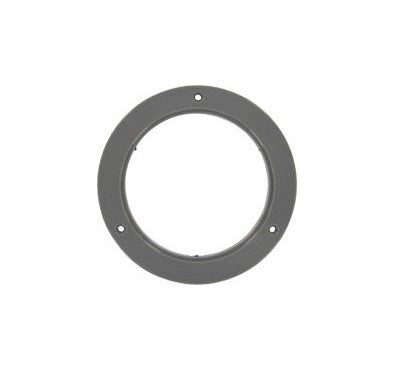

A-286 | 4-1/2" Gage panel mounting flange | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-286

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments A-286 Documents

Instruction Manual Model A-286 Catalog Page More Info

Overview

Details for A-286

The Dwyer Instruments A-286 Panel Mount Flange is engineered for industrial applications requiring secure mounting of gauges and instruments. Constructed with durable materials, it offers exceptional strength and corrosion resistance. The flange design allows for easy panel mounting, ensuring a sturdy and stable installation. Its precision-machined construction ensures a tight fit with compatible gauges, providing accurate readings and reliable performance. The A-286 is ideal for mounting pressure gauges, temperature gauges, and other instruments in harsh industrial environments where secure mounting is crucial.

Model A-286 Magnehelic® Gage Panel Mounting Flange

Flange for Panel Mounting 4-1/2" Diameter Gages

The A-286 Magnehelic® Gage Panel Mounting Flange can be used on any Dwyer Instruments gage that possesses a 4-1/2" (115 mm) diameter housing. The flange is secured to the gage behind its bezel with three set screws. The set screws hold the gage tight in place. The gage/flange can then be quickly attached to a surface or panel with a drill and the supplied mounting screws. The flange's three mounting holes follow the industry standard mounting pattern. The flange is made of a robust plastic composite and comes with three pre-installed set screws, an Allen wrench for tightening and three flange mounting screws.

Included Accessories:
(3) Pre-installed metal set screws
(3) Mounting screws
(1) Allen wrench
(1) Instruction manual with mounting template
