87W56 | Lennox 46132-050, Blower Motor, 3/4 HP, 460 Volts, 600-1200 RPM, 3.2 Amps, 46132-050 | Lennox
$0.00
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: LennoxSKU: 87W56
Availability: Get a Quote
The product is not cancelable or returnable unless found defective

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

87W56 | Lennox 46132-050, Blower Motor, 3/4 HP, 460 Volts, 600-1200 RPM, 3.2 Amps, 46132-050 | Lennox

Lennox | 87W56

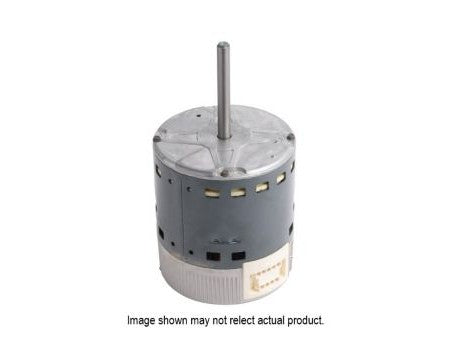

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 87W56

Documents and manuals

Lennox 87W56 Documents

Overview

Details for 87W56

Industrial-Grade Power: Lennox 3/4HP 460/60/1 X13 MOTOR (87W56) The Lennox 87W56 motor is an industrial workhorse, designed to deliver reliable performance in demanding environments. Its 3/4 horsepower rating and 1800 RPM speed make it suitable for powering a wide range of heavy-duty equipment. Crafted with superior materials and precision engineering, this motor boasts a sturdy 56-frame construction, aluminum flange, and rolled steel frame. These features ensure exceptional durability and resistance to corrosion, even in harsh conditions. Key Features: * 3/4 horsepower power output for demanding applications * 1800 RPM speed for efficient operation * 460/60/1 voltage compatibility for versatile use * Robust 56-frame construction for enhanced durability * Aluminum flange for lightweight and corrosion resistance * Rolled steel frame for added strength * X13 insulation class for high temperature resistance Trust the Lennox 87W56 motor to power your industrial equipment with efficiency and reliability. Experience the superior power and durability of this exceptional product. Upgrade your industrial operations today and get the Lennox 87W56 motor. We offer competitive prices and fast shipping. Contact our HVAC supply store for more information and to place your order.

Specifications

Item Number 87W56
Brand Lennox
Amperage (AMPs) 3.2A
Base Unit of Measure Unit(S)
Bearing Type Ball
Catalog Number 87W56
Core Product No
EAN / UPC 66255143793
Frame Size 48
Gross Weight 19 LB
Hertz 60 hz
Horsepower 3/4 HP
Material Description Lennox 46132-050 Programmed Blower Motor; 3/4HP; 460 Volts; 600-1200 RPM; 3.2 Amps
Model/Part Number 46132-050
Motor HP 3/4 HP
Motor Mounting Position Horizontal
Motor Mounting Type Belly Band
Motor Type ECM
Motor Type ECM - Programmed
Motor Voltage 460 VAC 1 Ph 60 Hz
Number of Speeds Variable
Phase 1 Phase
Product Voltage 460V
Rotation CCW
Rotation CCWLE
RPM Range 600 - 1200
RPM 600-1200 RPM
Shaft Size 1/2 x 3.92 IN
