8501XO44V02 | RELAY 600VAC 10AMP NEMA | Schneider Electric (Square D)

Schneider Electric (Square D) | 8501XO44V02

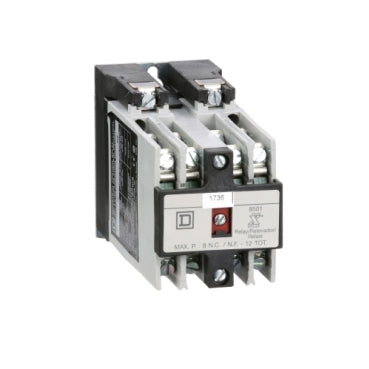

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501XO44V02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 8501XO44V02 Documents

More Info

Overview

Details for 8501XO44V02

RELAY 600VAC 10A: Schneider Electric (Square D) 8501XO44V02 The Schneider Electric (Square D) 8501XO44V02 is a 600VAC, 10A relay designed for use in various industrial applications. This heavy-duty relay features a compact design and rugged construction, ensuring reliable performance in demanding environments. Its 600VAC voltage rating and 10A current capacity make it suitable for controlling high-power electrical loads. With its high-quality construction and proven performance, the Schneider Electric (Square D) 8501XO44V02 relay is an excellent choice for industrial control applications. Our HVAC supply store offers the best prices and fast shipping, making it the go-to source for industrial engineers and maintenance professionals. 8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.

Specifications

Range: 8501X
Relay Type: Control
Product: Relay
Current Rating: 10 A AC;5 A DC
Coil Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
control circuit voltage limits: Operational 0.85...1.1 Uc AC 50/60 Hz
rated breaking capacity: 6 A 120 V AC inductive control circuit UL 508;3 A 240 V AC inductive control circuit UL 508;1.5 A 480 V AC inductive control circuit UL 508;1.2 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC resistive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
[Icm] rated short-circuit making capacity: 60 A 120 V AC inductive control circuit UL 508;30 A 240 V AC inductive control circuit UL 508;15 A 480 V AC inductive control circuit UL 508;12 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC inductive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
inrush power in VA: 148 VA 60 Hz;143 VA 50 Hz
hold-in power consumption in VA: 23 VA 60 Hz;25 VA 50 Hz
operating time: 15 ms - pick-up;16 ms - drop-out
Contact Configuration: 4 NO + 4 NC 8 standard contact cartridges
Electrical Connection: Screw clamp terminals
AWG gauge: AWG 18...AWG 12 copper
tightening torque: Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals
Mounting Type: Panel
Height: 3.5 in (88.90 mm)
Width: 2.23 in (56.64 mm)
Depth: 5.16 in (131.06 mm)
Operating Temperature: -40…160 °F (-40…71 °C)
Certifications: CSA LR60905 class 3211 03;UL listed file E78403 CCN NKCR
Category: 21158-8501 XO (AC)
Discount Schedule: CP2
GTIN: 785901018490
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.50 in (8.9 cm)
Package 1 Width: 2.24 in (5.7 cm)
Package 1 Length: 5.16 in (13.1 cm)
Package 1 Weight: 32.00 oz (907.185 g)
Warranty: 18 months
