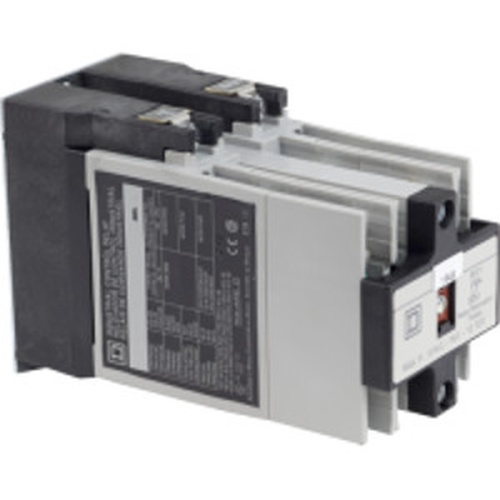

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501XO20V02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 8501XO20V02 Documents

More Info

Overview

Details for 8501XO20V02

Industrial-Grade Relay: NCO 8501XO20V02 from Schneider Electric (Square D) The NCO 8501XO20V02 relay from Schneider Electric (Square D) is a reliable control solution engineered for demanding industrial applications. This 120V, 10A relay features two contacts, providing precise control over electrical circuits with ease of use and durability. Constructed with high-quality materials, this relay offers extended operational life and resilience in harsh industrial environments. Its compact design simplifies integration into control systems, making it ideal for space-constrained applications. Designed for versatility, the NCO 8501XO20V02 relay is compatible with various control systems and automation setups. Its rugged construction ensures reliable performance in critical applications requiring precise control and dependability. Our HVAC supply store: Your Trusted Source for Industrial Products At Our HVAC supply store, we prioritize providing our customers with the best prices and rapid shipping. Choose us as your trusted supplier for a wide range of industrial products, including relays, motors, drives, and more. Contact us today to fulfill your industrial supply needs and experience our commitment to excellence. 8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has two 8501XC1 contact cartridges. This relay has two normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The two plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified. Relay is UL listed and CSA certified.

Specifications

Range: 8501X
Relay Type: Control
Product: Relay
Current Rating: 10 A AC;5 A DC
Coil Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
control circuit voltage limits: Operational 0.85...1.1 Uc AC 50/60 Hz
rated breaking capacity: 6 A 120 V AC inductive control circuit UL 508;3 A 240 V AC inductive control circuit UL 508;1.5 A 480 V AC inductive control circuit UL 508;1.2 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC resistive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
[Icm] rated short-circuit making capacity: 60 A 120 V AC inductive control circuit UL 508;30 A 240 V AC inductive control circuit UL 508;15 A 480 V AC inductive control circuit UL 508;12 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC inductive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
inrush power in VA: 148 VA 60 Hz;143 VA 50 Hz
hold-in power consumption in VA: 23 VA 60 Hz;25 VA 50 Hz
operating time: 15 ms - pick-up;16 ms - drop-out
Contact Configuration: 2 NO 2 standard contact cartridges
Electrical Connection: Screw clamp terminals
AWG gauge: AWG 18...AWG 12 copper
tightening torque: Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals
Mounting Type: Panel
Height: 3.5 in (88.90 mm)
Width: 2.23 in (56.64 mm)
Depth: 3.95 in (100.33 mm)
Operating Temperature: -40…160 °F (-40…71 °C)
Certifications: CSA LR60905 class 3211 03;UL listed file E78403 CCN NKCR
Category: 21158-8501 XO (AC)
Discount Schedule: CP2
GTIN: 785901536963
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.39 in (8.6 cm)
Package 1 Width: 4.61 in (11.7 cm)
Package 1 Length: 6.50 in (16.5 cm)
Package 1 Weight: 33.12 oz (938.9 g)
Unit Type of Package 2: PAL
Number of Units in Package 2: 360
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 764.00 lb(US) (346.544 kg)
Warranty: 18 months
