70-E301H | 120 VAC Industrial Actuator | On/Off | 3000 In-Lbs | Bray Commercial

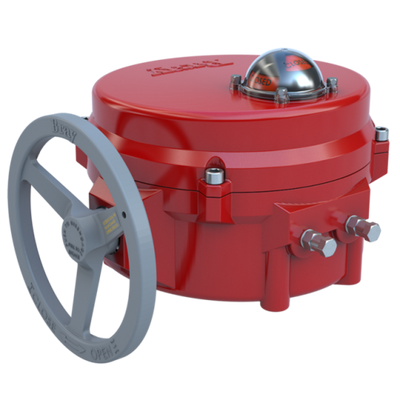

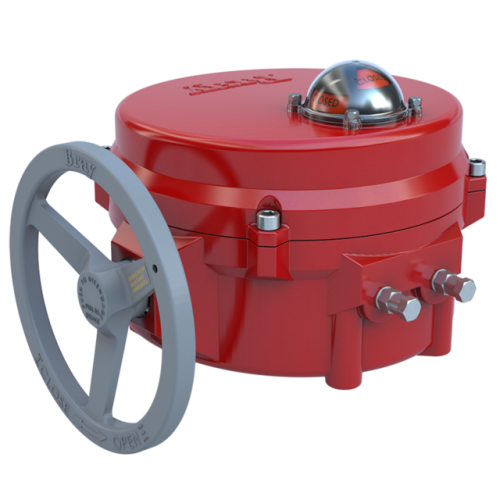

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 70-E301H

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial 70-E301H Documents

Bray 70-E301H Catalog Bray 70-E301H Submittal Bray 70-E301H Installer's Guide More Info

Overview

Details for 70-E301H

Transform Your Industrial Processes with the Bray Commercial 3000lb/in 120v NCO-70-E301H On/Off Torque Converter with Heater The Bray Commercial NCO-70-E301H Torque Converter is engineered to provide exceptional torque output of 3000lb/in, making it ideal for demanding industrial applications. Its 120v operating voltage ensures compatibility with most industrial power systems. Crafted from premium materials, this torque converter boasts a robust construction capable of withstanding harsh operating conditions. The On/Off switch allows for precise control, while the integrated heater enhances performance in cold environments. Its compact design makes it easy to integrate into existing systems, saving valuable space. This torque converter is also designed with safety in mind, offering reliable operation and protection against overloads. Whether you're upgrading your existing equipment or building a new system, the Bray Commercial 3000lb/in 120v NCO-70-E301H On/Off Torque Converter is the trusted choice for industrial engineers and maintenance professionals. Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial needs!

Description:

Bray 70-E301H Industrial Actuator Features:

- Direct replacement for 70-0301H.

- 120 VAC.

- 2 position.
- On/Off.

- 3000 In-Lbs.

- NEMA 4 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- 5 watt PTC style heater.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

There is no better choice for building automation!

Actuator Power:120V

Specifications

Product: 70-E301H
Actuator Control Signal: On/Off
Actuator Action: Non-Fail Safe
Actuator Features: Auxiliary Switches | Enclosed Terminal Strip | Heater | Manual Override Handwheel
Actuator Power Supply: 120 VAC
Area Classification: IP65 | IP67 | NEMA 4 | NEMA 4X
Torque Imperial: 3000
Conduit Connection: 2 x 3/4" NPT
Weight Lbs: 28
