70-24-0501H | 24 VAC Industrial Actuator | On/Off | 5000 In-Lbs | Bray Commercial

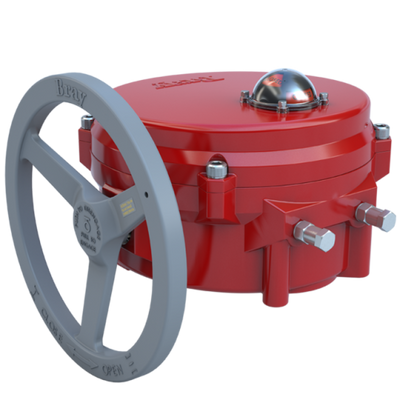

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 70-24-0501H

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial 70-24-0501H Documents

Bray 70-24-0501H Catalog Bray 70-24-0501H Submittal Bray 70-24-0501H Installer's Guide More Info

Overview

Details for 70-24-0501H

Bray Commercial ACTUATOR 5000IN# 24VAC ON/OFF. This actuator is designed for use in commercial applications and is powered by 24 volts AC. It offers a stroke length of 5000 inches and can be used for a variety of purposes, including opening and closing doors, windows, and gates. The actuator is constructed of durable materials and is designed to withstand heavy use. It is also easy to install and maintain. Our HVAC supply store offers the best prices and fast shipping!

Description:

Bray 70-24-0501H Industrial Actuator Features:

- 24 VAC.

- 2 position.
- On/Off.

- 5000 In-Lbs.

- NEMA 4 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- 5 watt PTC style heater.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

There is no better choice for building automation!

Actuator Power:24V

Specifications

Product: 70-24-0501H
Actuator Control Signal: On/Off
Actuator Action: Non-Fail Safe
Actuator Features: Auxiliary Switches | Enclosed Terminal Strip | Heater | Manual Override Handwheel
Actuator Power Supply: 24 VAC
Area Classification: IP65 | IP67 | NEMA 4 | NEMA 4X
Torque Imperial: 5000
Conduit Connection: 2 x 3/4" NPT
Weight Lbs: 48
