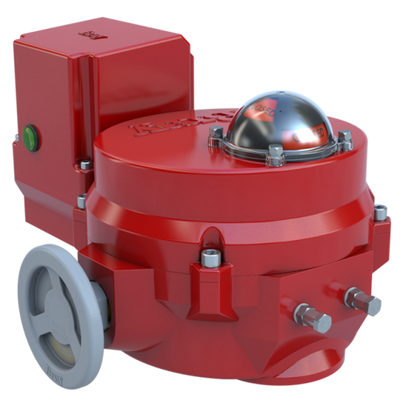

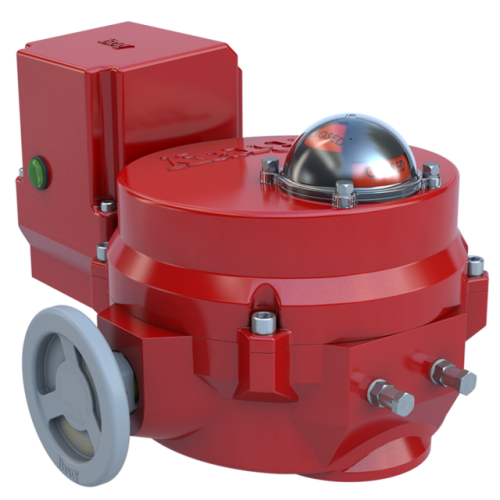

70-24-0081H-BBU | 24 VAC Industrial Actuator With Battery Backup | On/Off | 800 In-Lbs | Bray Commercial
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 70-24-0081H-BBU
Documents and manuals
Bray Commercial 70-24-0081H-BBU Documents
Overview
Details for 70-24-0081H-BBU
24V 2POS 800IN-LBS ACTUATORThe Bray Commercial 24V 2POS 800IN-LBS ACTUATOR (SKU: 70-24-0081H-BBU) is a heavy-duty linear actuator engineered for industrial and commercial applications. This robust actuator offers exceptional force and durability, making it ideal for demanding tasks such as lifting, positioning, and adjusting heavy loads.
With a 24V DC power supply, this actuator delivers a powerful 800 in-lbs of linear force, enabling it to handle significant loads. Its 2-position design allows for precise control and positioning of the connected machinery or equipment. The actuator's compact size and versatile mounting options make it easy to integrate into existing setups.
Constructed from high-grade materials, this actuator ensures long-lasting performance in harsh industrial environments. Its IP65 rating indicates resistance to dust and water ingress, ensuring reliable operation even in challenging conditions.
The Bray Commercial 24V 2POS 800IN-LBS ACTUATOR is a reliable and powerful solution for various industrial needs. Its robust design, precise control, and durability make it an excellent choice for engineers, maintenance professionals, and anyone seeking a high-quality linear actuator.
Our HVAC supply store offers competitive pricing and fast shipping on this exceptional actuator. Shop now and experience the difference in quality and efficiency!
Description:
Bray 70-24-0081H-BBU Industrial Actuator Features:
- Battery backup.
- 24 VAC.
- 2 position.
- On/Off.
- On/Off.
- 800 In-Lbs.
- NEMA 4 enclosure.
- High visibility beacon position indicator.
- Manual declutchable override hand wheel, pull to engage, push to disengage.
- 5 watt PTC style heater.
- Auxiliary switch.
- ASTM B85 pressure die cast aluminum housing with polyester powder coat.
- Stainless steel exposed fasteners.
- 2 conduit connections.
The Battery Backup BBU option for the Bray Series 70 24VAC actuators provides a convenient and cost effective solution to provide return of the valve or damper to a user-selectable position upon loss of supply power. The BBU is available for both On/Off and modulating actuators. The advanced circuitry of the BBU continuously monitors battery strength and provides a visual indication (LED) and remote indication (via dry contact). The BBU is housed in sturdy die cast aluminum NEMA 4x (IP 65) enclosure and is factory mounted and factory wired to the Bray Series 70 24VAC actuator.
Battery Backup Operation: In the normal mode of operation with power supplied to the actuator, the batteries maintain a charge and are in an offline mode. The power applied to the motor is from the power supply, not the batteries. When a power loss occurs, the BBU pauses for 5 seconds and then reads the “Open/Close” fail position switch setting. The BBU circuitry applies the stored power in the batteries to move the valve or damper to the full open or full closed position designated by the user. The actuator remains in this position until external power is restored to the unit. For two position (on/off units), and modulating units, the BBU board automatically detects when the actuator has reached the desired position and then disconnects the battery power from the motor.
The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.
There is no better choice for building automation!
- Actuator Power:24V
Specifications
- Product
- 70-24-0081H-BBU
- Actuator Control Signal
- On/Off
- Actuator Action
- Fail Safe
- Actuator Features
- Auxiliary Switches | Battery Back-Up Failsafe | Enclosed Terminal Strip | Heater | Manual Override Handwheel
- Actuator Power Supply
- 24 VAC/30 VDC
- Area Classification
- IP65 | IP67 | NEMA 4 | NEMA 4X
- Torque Imperial
- 800
- Conduit Connection
- 2 x 3/4" NPT
- Weight Lbs
- 18.7
