70-1300SVH | 120 VAC Industrial Actuator | Modulating | 13000 In-Lbs | Bray Commercial

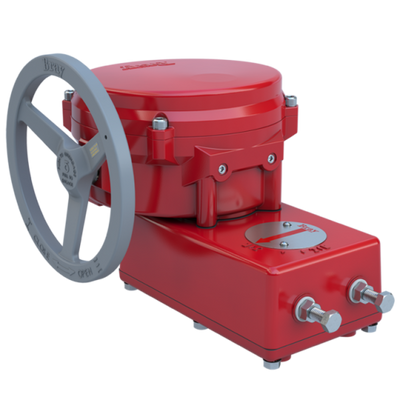

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 70-1300SVH

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial 70-1300SVH Documents

Bray 70-1300SVH Catalog Bray 70-1300SVH Submittal Bray 70-1300SVH Installer's Guide More Info

Overview

Details for 70-1300SVH

Precise Control with Bray Commercial's NCO-70-1300SVH Electronic ActuatorThe Bray Commercial NCO-70-1300SVH is a high-performance electronic actuator designed to provide precise and reliable control for industrial applications. With its 120V 4-20mA input, this actuator offers a wide range of control options for precise positioning and regulation.Durable Construction: The NCO-70-1300SVH is built to withstand harsh industrial environments, featuring a robust construction that ensures longevity and reliability. Its rugged design makes it suitable for demanding applications where durability and performance are crucial.Versatile Applications: This electronic actuator is ideal for various industrial applications, including HVAC systems, manufacturing processes, and automation systems. It provides precise control of valves, dampers, and other devices, ensuring optimal system performance.Efficient Operation: The NCO-70-1300SVH offers efficient operation, reducing energy consumption and lowering operating costs. Its optimized design ensures smooth and precise actuation, contributing to overall system efficiency.Expert Choice: Bray Commercial is a leading manufacturer of industrial actuators, known for their quality and reliability. The NCO-70-1300SVH reflects this commitment to excellence, providing industrial engineers and maintenance professionals with a dependable solution for their control needs.Shop now at our HVAC supply store, where you'll find the NCO-70-1300SVH at the best prices and fast shipping for your convenience!

Description:

Bray 70-1300SVH Industrial Actuator Features:

- 120 VAC.

- Modulating.

- 13000 In-Lbs.

- Modulating with Servo NXT technology.

- One touch menu driven push button selection of all settings.

- NEMA 4 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- 5 watt PTC style heater.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

The Series 70 Servo NXT provides precise modulating control of valve position:

- Single Finger Technology (SFT) menu driven, pushbutton, programming with LED confirmation of all settings.

- Optical isolation of all inputs/outputs.

- Input Control - 4-20 mA or 0-10 VDC or 0-5 VDC or 2-10 VD.

- Position Feedback - 4-20 mA or 0-10 VDC or 0-5 VDC.

- Auto Calibrating.

- Fail Position.

- Speed Control.

- Manual Mode.

- On board signal generator to simplify field set up.

- Fault display simplifies troubleshooting.

- Stall detection- Eliminates mechanical damage in case of obstruction or bad switch settings.

- Provides interoperability with all controllers.

- Earth ground tolerant.

- Allows for parallel operation.

There is no better choice for building automation!

Actuator Power:120V

Specifications

Product: 70-1300SVH
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Actuator Features: Auxiliary Switches | Enclosed Terminal Strip | Heater | Manual Override Handwheel
Actuator Power Supply: 120 VAC
Area Classification: IP65 | IP67 | NEMA 4 | NEMA 4X
Torque Imperial: 13000
Conduit Connection: 2 x 3/4" NPT
Weight Lbs: 118
