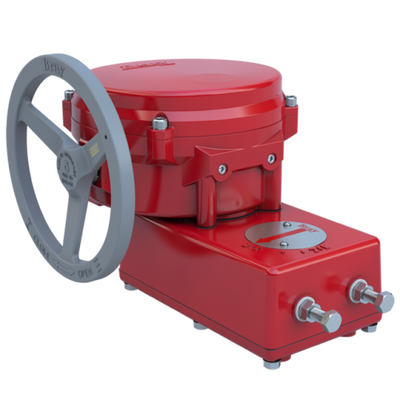

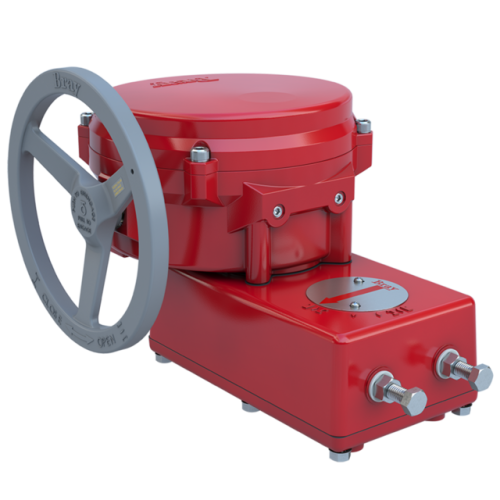

70-1300H | 120 VAC Industrial Actuator | On/Off | 13000 In-Lbs | Bray Commercial

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 70-1300H

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial 70-1300H Documents

Bray 70-1300H Catalog Bray 70-1300H Submittal Bray 70-1300H Installer's Guide More Info

Overview

Details for 70-1300H

120vAC Bray Commercial 70-1300H On/Off Actuator, NEMA 4 (70-1300H)The Bray Commercial 70-1300H is a 120vAC on/off actuator in a NEMA 4 enclosure. The product's key feature is that it provides a compact and powerful solution for controlling industrial equipment in harsh environments. With its 13K-in torque, the actuator can handle heavy loads, making it suitable for a wide range of applications. The NEMA 4 enclosure ensures protection against dust, water, and corrosion, making it ideal for outdoor or harsh industrial environments. This actuator is easy to install and maintain, reducing downtime and maintenance costs. Shop now at our HVAC supply store for the best prices and fast shipping on your industrial products!

Description:

Bray 70-1300H Industrial Actuator Features:

- 120 VAC.

- 2 position.
- On/Off.

- 13000 In-Lbs.

- NEMA 4 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- 5 watt PTC style heater.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

There is no better choice for building automation!

Actuator Power:120V

Specifications

Product: 70-1300H
Actuator Control Signal: On/Off
Actuator Action: Non-Fail Safe
Actuator Features: Auxiliary Switches | Enclosed Terminal Strip | Heater | Manual Override Handwheel
Actuator Power Supply: 120 VAC
Area Classification: IP65 | IP67 | NEMA 4 | NEMA 4X
Torque Imperial: 13000
Conduit Connection: 2 x 3/4" NPT
Weight Lbs: 118
