70-0651H | 120 VAC Industrial Actuator | On/Off | 6500 In-Lbs | Bray Commercial

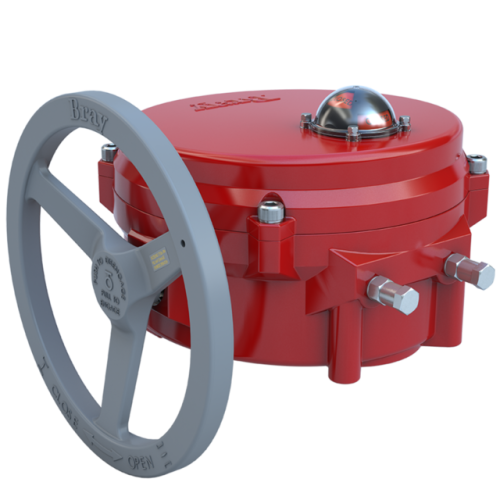

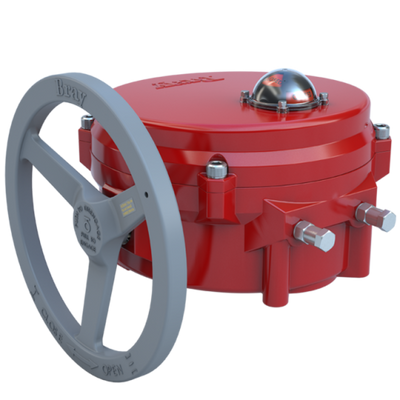

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 70-0651H

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial 70-0651H Documents

Bray 70-0651H Catalog Bray 70-0651H Submittal Bray 70-0651H Installer's Guide More Info

Overview

Details for 70-0651H

ACTUATOR, 120V, NEMA4, 2POS The Bray Commercial ACTUATOR is a high-performance actuator designed for demanding industrial applications. With its durable construction and reliable performance, it is ideal for use in various industries, including manufacturing, automation, and robotics. Key Features: - Voltage: 120V - Enclosure: NEMA4 - Positions: 2 - Brand: Bray Commercial Benefits: - Durable construction ensures longevity and reliability - NEMA4 enclosure provides protection against water and dust ingress - Two-position operation allows for precise control and positioning - Compatible with various industrial equipment and systems - Backed by the trusted Bray Commercial brand Applications: - Industrial automation systems - Robotics and machinery - Manufacturing equipment - Conveyor systems - Packaging machinery Shop now at our HVAC supply store for the best prices and fast shipping on the Bray Commercial ACTUATOR!

Description:

Bray 70-0651H Industrial Actuator Features:

- 120 VAC.

- 2 position.
- On/Off.

- 6500 In-Lbs.

- NEMA 4 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- 5 watt PTC style heater.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

There is no better choice for building automation!

Actuator Power:120V

Specifications

Product: 70-0651H
Actuator Control Signal: On/Off
Actuator Action: Non-Fail Safe
Actuator Features: Auxiliary Switches | Enclosed Terminal Strip | Heater | Manual Override Handwheel
Actuator Power Supply: 120 VAC
Area Classification: IP65 | IP67 | NEMA 4 | NEMA 4X
Torque Imperial: 6500
Conduit Connection: 2 x 3/4" NPT
Weight Lbs: 48
