70-0501SVH | 120 VAC Industrial Actuator | Modulating | 5000 In-Lbs | Bray Commercial

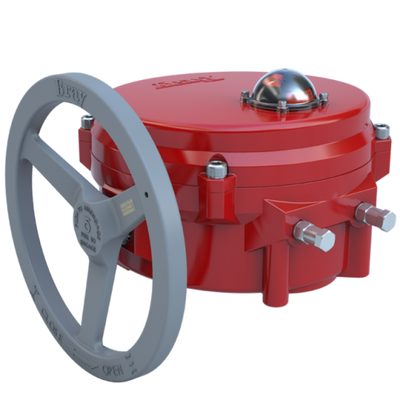

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 70-0501SVH

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial 70-0501SVH Documents

Bray 70-0501SVH Catalog Bray 70-0501SVH Submittal Bray 70-0501SVH Installer's Guide More Info

Overview

Details for 70-0501SVH

5000lb/in 120v 4-20ma Actuator: The Bray Commercial 70-0501SVH actuator delivers a powerful performance with its 5000lb/in force output. Ideal for industrial applications, this actuator is powered by a 120-volt motor and utilizes a 4-20mA control signal for precise positioning. Its compact design makes it easy to integrate into various equipment, providing reliable and efficient operation. Trust Bray Commercial for your industrial actuator needs. Shop our HVAC supply store for the best prices and fast shipping on the 70-0501SVH actuator and other industrial products!

Description:

Bray 70-0501SVH Industrial Actuator Features:

- 120 VAC.

- Modulating.

- 5000 In-Lbs.

- Modulating with Servo NXT technology.

- One touch menu driven push button selection of all settings.

- NEMA 4 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- 5 watt PTC style heater.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

The Series 70 Servo NXT provides precise modulating control of valve position:

- Single Finger Technology (SFT) menu driven, pushbutton, programming with LED confirmation of all settings.

- Optical isolation of all inputs/outputs.

- Input Control - 4-20 mA or 0-10 VDC or 0-5 VDC or 2-10 VD.

- Position Feedback - 4-20 mA or 0-10 VDC or 0-5 VDC.

- Auto Calibrating.

- Fail Position.

- Speed Control.

- Manual Mode.

- On board signal generator to simplify field set up.

- Fault display simplifies troubleshooting.

- Stall detection- Eliminates mechanical damage in case of obstruction or bad switch settings.

- Provides interoperability with all controllers.

- Earth ground tolerant.

- Allows for parallel operation.

There is no better choice for building automation!

Actuator Power:120V

Specifications

Product: 70-0501SVH
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Actuator Features: Auxiliary Switches | Enclosed Terminal Strip | Heater | Manual Override Handwheel
Actuator Power Supply: 120 VAC
Area Classification: IP65 | IP67 | NEMA 4 | NEMA 4X
Torque Imperial: 5000
Conduit Connection: 2 x 3/4" NPT
Weight Lbs: 48
