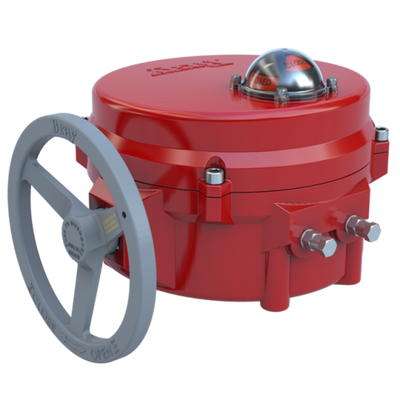

70-0121SVH | 120 VAC Industrial Actuator | Modulating | 1200 In-Lbs | Bray Commercial

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 70-0121SVH

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial 70-0121SVH Documents

Bray 70-0121SVH Catalog Bray 70-0121SVH Submittal Bray 70-0121SVH Installer's Guide More Info

Overview

Details for 70-0121SVH

1200 lb-in, 120V Bray Commercial Actuator (70-0121SVH) The Bray Commercial 70-0121SVH Actuator delivers exceptional power handling with 1200 lb-in of torque and 120V input. It features a compact design, making it ideal for applications where space is limited. This actuator offers reliable performance and durability, ensuring long-lasting operation in industrial settings. Its heavy-duty construction ensures resistance to wear and tear, while the advanced motor technology provides efficient and quiet operation. The 70-0121SVH Actuator is suitable for various applications requiring precise control and high torque, such as automated manufacturing processes, material handling systems, and robotics. Shop now at our HVAC supply store for the best prices and fast shipping on the Bray Commercial 70-0121SVH Actuator. Get your project up and running today!

Description:

Bray 70-0121SVH Industrial Actuator Features:

- 120 VAC.

- Modulating.

- 1200 In-Lbs.

- Modulating with Servo NXT technology.

- One touch menu driven push button selection of all settings.

- NEMA 4 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- 5 watt PTC style heater.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

The Series 70 Servo NXT provides precise modulating control of valve position:

- Single Finger Technology (SFT) menu driven, pushbutton, programming with LED confirmation of all settings.

- Optical isolation of all inputs/outputs.

- Input Control - 4-20 mA or 0-10 VDC or 0-5 VDC or 2-10 VD.

- Position Feedback - 4-20 mA or 0-10 VDC or 0-5 VDC.

- Auto Calibrating.

- Fail Position.

- Speed Control.

- Manual Mode.

- On board signal generator to simplify field set up.

- Fault display simplifies troubleshooting.

- Stall detection- Eliminates mechanical damage in case of obstruction or bad switch settings.

- Provides interoperability with all controllers.

- Earth ground tolerant.

- Allows for parallel operation.

There is no better choice for building automation!

Actuator Power:120V

Specifications

Product: 70-0121SVH
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Actuator Features: Auxiliary Switches | Enclosed Terminal Strip | Heater | Manual Override Handwheel
Actuator Power Supply: 120 VAC
Area Classification: IP65 | IP67 | NEMA 4 | NEMA 4X
Torque Imperial: 1200
Conduit Connection: 2 x 3/4" NPT
Weight Lbs: 28
