70-0081SVH | 120 VAC Industrial Actuator | Modulating | 800 In-Lbs | Bray Commercial

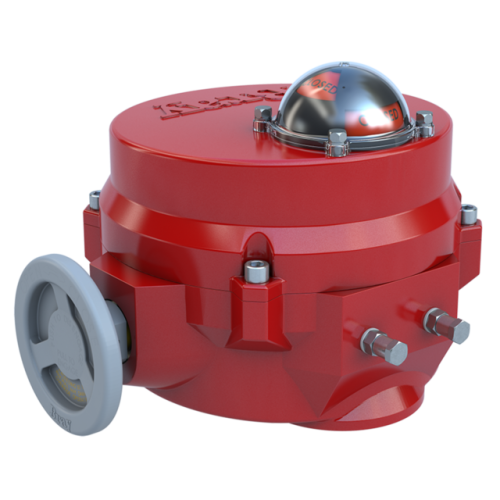

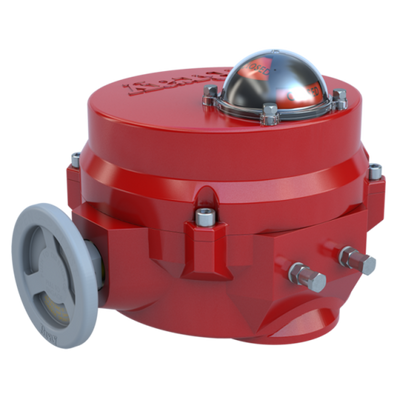

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 70-0081SVH

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial 70-0081SVH Documents

Bray 70-0081SVH Catalog Bray 70-0081SVH Submittal Bray 70-0081SVH Installer's Guide More Info

Overview

Details for 70-0081SVH

120V NEMA4 800# MOD ACT by Bray Commercial [sku] is designed for commercial applications, deliveringå¯é operation in demanding environments. Its 120V power supply and NEMA4 rating make it suitable for both indoor and outdoor use. This 800# MOD ACT provides exceptional durability and corrosion resistance, ensuring long-lasting performance. With its compact design and advanced features, this product is an ideal choice for industrial engineers and maintenance professionals. Our HVAC supply store offers competitive prices and fast shipping on this product. Don't miss out on this exceptional deal, order now!

Description:

Bray 70-0081SVH Industrial Actuator Features:

- 120 VAC.

- Modulating.

- 800 In-Lbs.

- Modulating with Servo NXT technology.

- One touch menu driven push button selection of all settings.

- NEMA 4 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- 5 watt PTC style heater.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

The Series 70 Servo NXT provides precise modulating control of valve position:

- Single Finger Technology (SFT) menu driven, pushbutton, programming with LED confirmation of all settings.

- Optical isolation of all inputs/outputs.

- Input Control - 4-20 mA or 0-10 VDC or 0-5 VDC or 2-10 VD.

- Position Feedback - 4-20 mA or 0-10 VDC or 0-5 VDC.

- Auto Calibrating.

- Fail Position.

- Speed Control.

- Manual Mode.

- On board signal generator to simplify field set up.

- Fault display simplifies troubleshooting.

- Stall detection- Eliminates mechanical damage in case of obstruction or bad switch settings.

- Provides interoperability with all controllers.

- Earth ground tolerant.

- Allows for parallel operation.

There is no better choice for building automation!

Actuator Power:120V

Specifications

Product: 70-0081SVH
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Actuator Features: Auxiliary Switches | Enclosed Terminal Strip | Heater | Manual Override Handwheel
Actuator Power Supply: 120 VAC
Area Classification: IP65 | IP67 | NEMA 4 | NEMA 4X
Torque Imperial: 800
Conduit Connection: 2 x 3/4" NPT
Weight Lbs: 13
