682-3 | Industrial pressure transmitter | range 0-250 psi | 500 psi overpressure. | Dwyer Instruments

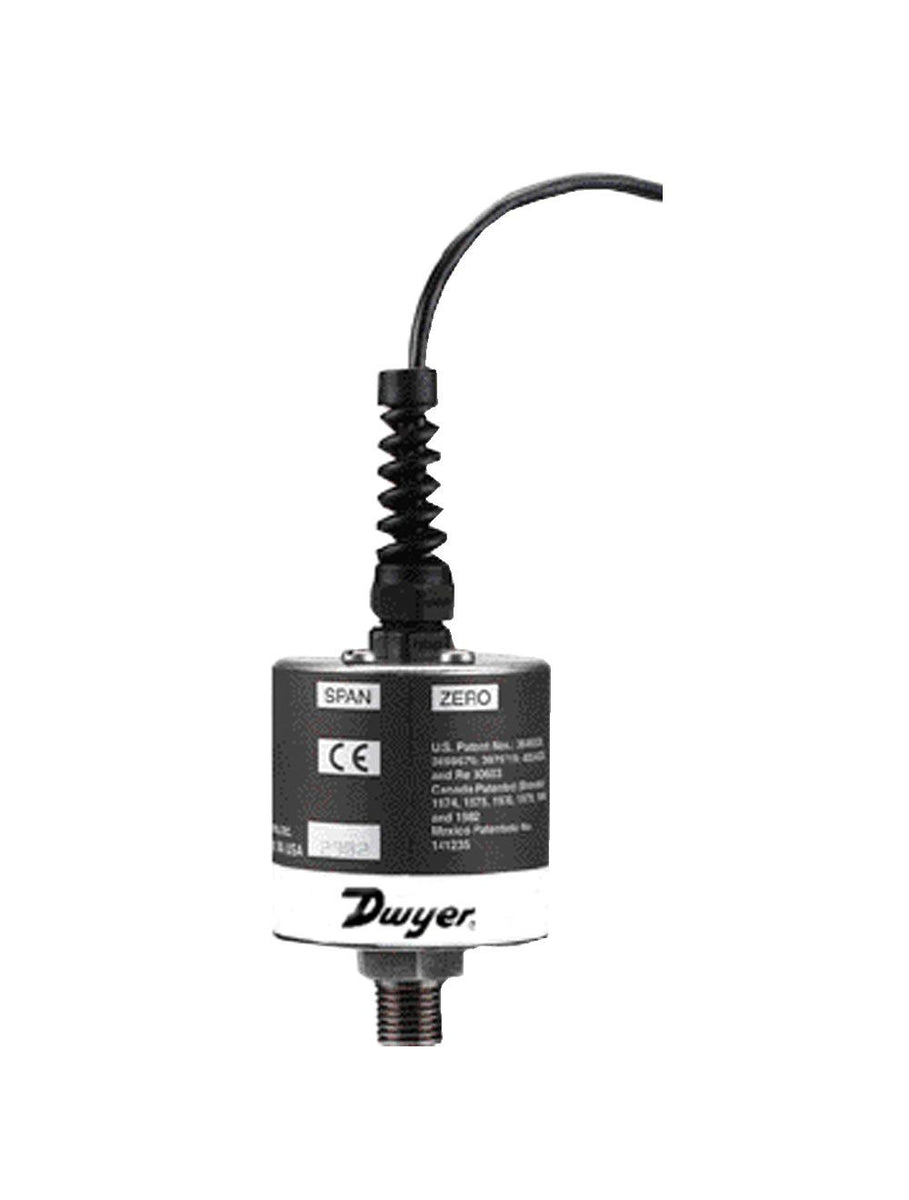

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 682-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 682-3 Documents

682 Series 682 Catalog Page 682 More Info

Overview

Details for 682-3

0/250# #Trnsmitter 4-20maOut by Dwyer Instruments The Dwyer 682-3 is a versatile pressure transmitter designed for industrial applications. This transmitter measures pressure ranges from 0 to 250 psi and provides a 4-20 mA output signal. The rugged construction of the 682-3 ensures reliable performance in harsh environments. Features and Benefits: - Measures pressure ranges from 0 to 250 psi - 4-20 mA output signal - Rugged construction for durability - Compact size for easy installation Applications: - Monitoring pressure levels in pipelines - Controlling pressure in industrial processes - Measuring pressure in HVAC systems Our HVAC supply store offers the Dwyer 682-3 at a competitive price with fast shipping! Contact us today to learn more about this product and how it can benefit your operation.

Series 682 Industrial Pressure Transmitter

±0.13% F.S. Accuracy, External Adjustments, 4-20 mA Output

The Series 682 Industrial Pressure Transmitter is designed to withstand environmental effects such as shock, vibration, temperature, and EMI/RFI. The electronics and capacitive sensor are packaged in a welded stainless steel housing and meets NEMA 4 (IP65) protection ratings.

Calibration Option available under Accessories.

Product Applications

Off-road equipment
Hydraulic systems
Compressor control
Industrial engines
Industrial refrigeration

Weatherproof welded housing provides device protection for outdoor use or harshenvironment operation
Not affected by environmental effects such as temperature, shock, vibration, andEMI/RFI provides reliable switching for equipment
External span and zero adjustments reduce installation and service time

Specifications

Series: 682 Industrial Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 682 Industrial Pressure Transmitter
Service: Compatible liquids and gases.
Wetted Parts: 17-4 PH Stainless Steel.
Accuracy: ±.13% FS (includes non-linearity; hysteresis and non-repeatability).
Temperature Limits: -40 to 260°F (-40 to 125°C) 10 to 90% RH; non-condensing.
Pressure Limit: See Catalog page.
Compensated Temperature Range: -4 to 176°F (-20 to 80°C).
Thermal Effect: Zero shift: 1.0% FS/100°F (% FS/50°C); span shift: ±1.5% FS/100°F (% FS/50°C).
Power Requirements: 9-30 VDC.
Output: 4-20 mA; 2-wire.
Zero and Span Adjustment: ±0.5 mA; non-interactive.
Response Time: 5 ms.
Loop Resistance: 800 ohms.
Electrical Connections: 2 ft (51 cm) multiconductor cable.
Process Connection: 1/4" male NPT.
Weight: 8 oz (227 g).
Agency Approvals: CE.
Shock: 200 g operating.
Vibration: 20 g 50-2000 Hz.
