682-1 | 0-50# PRESSURE TRANSMITTER | Dwyer Instruments

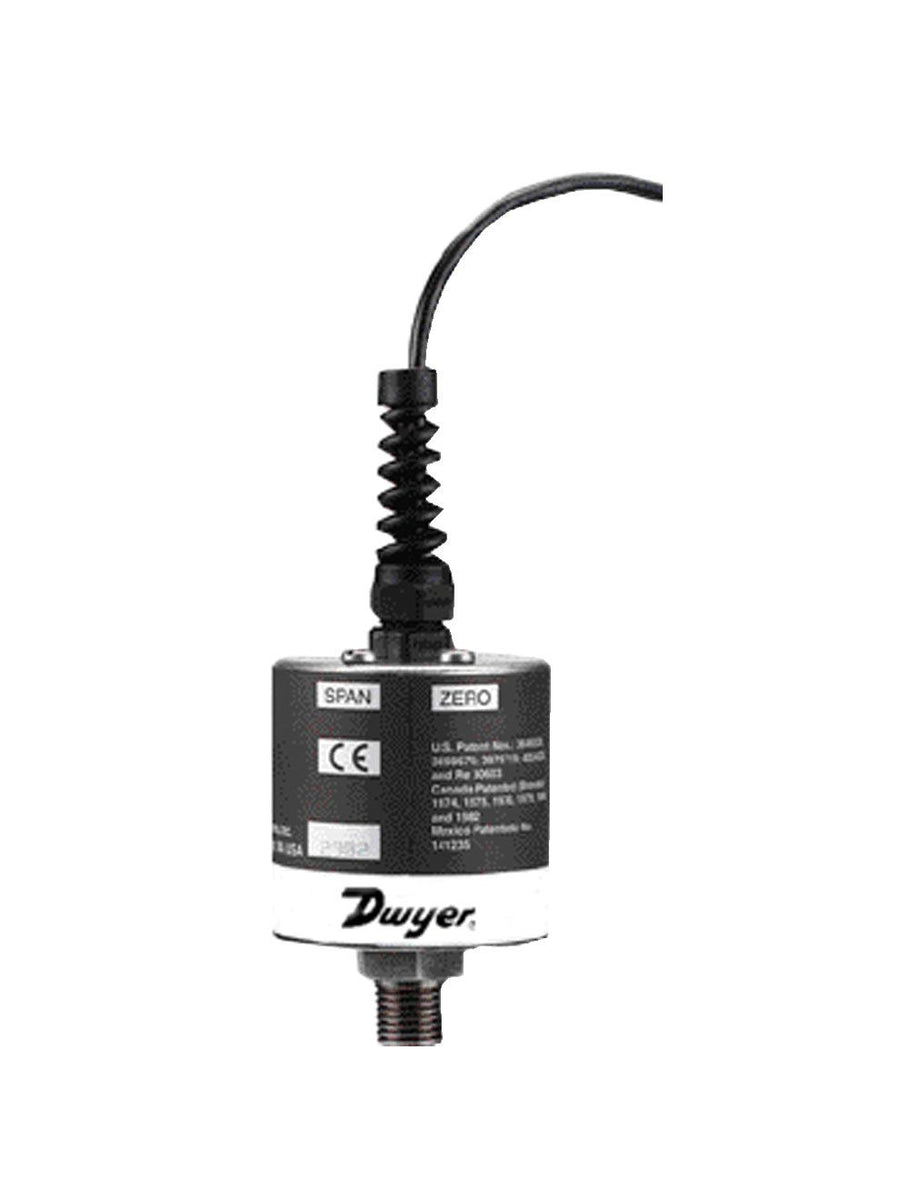

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 682-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 682-1 Documents

682 Series 682 Catalog Page 682 More Info

Overview

Details for 682-1

NCO-682-1 Dwyer Instruments: Precision Pressure Measurement Dwyer Instruments' NCO-682-1 pressure transmitter offers precise and reliable pressure measurement for demanding industrial applications. With a measuring range of 0-50 psi, this transmitter provides accurate readings for a wide range of pressure monitoring needs. Its rugged construction and high-quality components ensure durability and longevity in harsh operating environments. Key Features: * Pressure measurement range: 0-50 psi * 4-20 mA output for easy integration with control systems * Compact and robust design for various applications * Excellent accuracy and stability for reliable measurements * Suitable for industrial, process control, and HVAC systems Benefits: * Accurate and reliable pressure monitoring * Easy installation and maintenance * Cost-effective solution for precise pressure measurement * Wide range of applications in various industries Our HVAC supply store provides the best prices and fast shipping for the NCO-682-1 pressure transmitter. Contact us today to order yours and experience the exceptional quality of Dwyer Instruments' products. We offer expert support and competitive pricing, ensuring you get the right solutions for your industrial pressure measurement requirements.

Series 682 Industrial Pressure Transmitter

±0.13% F.S. Accuracy, External Adjustments, 4-20 mA Output

The Series 682 Industrial Pressure Transmitter is designed to withstand environmental effects such as shock, vibration, temperature, and EMI/RFI. The electronics and capacitive sensor are packaged in a welded stainless steel housing and meets NEMA 4 (IP65) protection ratings.

Calibration Option available under Accessories.

Product Applications

Off-road equipment
Hydraulic systems
Compressor control
Industrial engines
Industrial refrigeration

Weatherproof welded housing provides device protection for outdoor use or harshenvironment operation
Not affected by environmental effects such as temperature, shock, vibration, andEMI/RFI provides reliable switching for equipment
External span and zero adjustments reduce installation and service time

Specifications

Series: 682 Industrial Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 682 Industrial Pressure Transmitter
Service: Compatible liquids and gases.
Wetted Parts: 17-4 PH Stainless Steel.
Accuracy: ±.13% FS (includes non-linearity; hysteresis and non-repeatability).
Temperature Limits: -40 to 260°F (-40 to 125°C) 10 to 90% RH; non-condensing.
Pressure Limit: See Catalog page.
Compensated Temperature Range: -4 to 176°F (-20 to 80°C).
Thermal Effect: Zero shift: 1.0% FS/100°F (% FS/50°C); span shift: ±1.5% FS/100°F (% FS/50°C).
Power Requirements: 9-30 VDC.
Output: 4-20 mA; 2-wire.
Zero and Span Adjustment: ±0.5 mA; non-interactive.
Response Time: 5 ms.
Loop Resistance: 800 ohms.
Electrical Connections: 2 ft (51 cm) multiconductor cable.
Process Connection: 1/4" male NPT.
Weight: 8 oz (227 g).
Agency Approvals: CE.
Shock: 200 g operating.
Vibration: 20 g 50-2000 Hz.
