677B-01 | Differential pressure transmitter | range 0-.1" w.c. | Dwyer Instruments

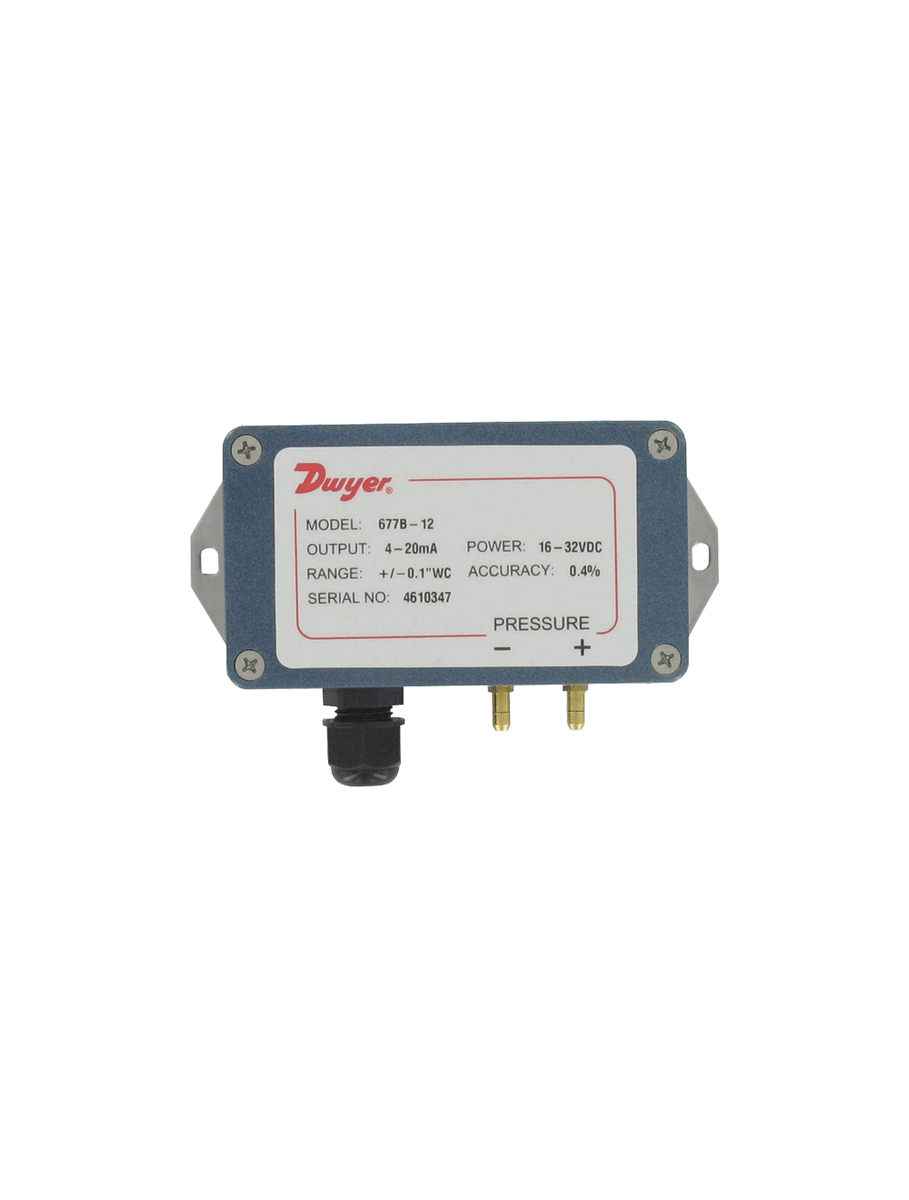

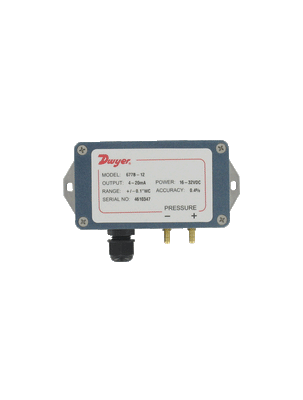

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 677B-01

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 677B-01 Documents

Instruction Manual Series 677B Catalog Page More Info

Overview

Details for 677B-01

0-.1"WC Differential Pressure Transmitter (677B-01) by Dwyer Instruments Dwyer's 677B-01 is a high-accuracy differential pressure transmitter designed for precise measurement of air pressure differences in industrial and HVAC applications. With a differential pressure range of 0 to 0.1" WC, this transmitter provides accurate readings for applications such as air flow monitoring, duct static pressure measurement, and filter monitoring. Key Features: â€¢ Differential Pressure Range: 0 to 0.1" WC â€¢ High Accuracy: Â±2% of full scale â€¢ Output Signal: 4-20 mA â€¢ Compact and Lightweight Design Benefits: â€¢ Precise Measurement: Provides accurate and reliable pressure readings for critical applications. â€¢ Versatile Use: Suitable for various industrial and HVAC applications involving air flow measurement and monitoring. â€¢ Easy Installation: Compact design and lightweight construction simplify installation in tight spaces. Applications: â€¢ Air Flow Monitoring â€¢ Duct Static Pressure Measurement â€¢ Filter Monitoring â€¢ HVAC System Balancing Shop our HVAC supply store today for the best prices and fast shipping on Dwyer Instruments products!

Series 677B Differential Pressure Transmitter

NEMA 4 Enclosure with Integral Mounting Bracket

Series 677B Differential Pressure Transmitters are designed to measure pressures as low as 0.1 in w.c. with ±0.4% accuracy. Use Series 677B for building energy management systems, environmental pollution control, oven pressurization, lab and fume hood control, HVAC and VAV applications. The transmitter features 15 psid overpressure, reverse polarity protection and EMI/RFI protection. Internal regulation permits use with unregulated DC power supplies. The NEMA 4 housing allows for versatile mounting locations and integral mounting tabs simplify installation.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Building energy management
Environmental pollution control
Lab and fume hood control
Variable air volume

NEMA 4 housing enables a range of use outdoor or indoor where water is present
High accuracy at low pressure ranges provides exceptional measurement for insuring tight-control and minimizing costly out of specification conditions
Use with unregulated DC power permits easy access to electrical supply reducing costly power conditioning and wiring

Specifications

Series: 677B Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 677B Differential Pressure Transmitter
Service: Air and non-conductive; non-corrosive gases.
Wetted Materials: 302 SS; glass; nickel; silicone rubber and brass.
Accuracy: ±0.4% FS* at roomtemperature.*RSS includes non-linearity; hysteresisand non-repeatability.
Stability: ±1% FS/yr.
Temperature Limits: >Operating and Compensated: 0 to185°F (-18 to 85°C);Storage: -65 to 220°F (-54 to105°C).
Pressure Limit: 15 psi (100 kPa).
Thermal Effects: (Includes zero andspan) <0.028% FS/°F; 0 to 185°F (-18to 85°C).
Power Requirements: 16 to 32 VDC.
Output: 4 to 20 mA DC; 2-wire.
Zero and Span Adjustments: Internally accessible potentiometers;noninteractive.
Response Time: Approximately 10 ms.
Max. Loop Resistance: DC: 0 to 800 Ohms.
Process Connection: 3/16" OD barbed brass pressure fitting.
Enclosure Rating: NEMA 4 (IP65).
Weight: 11.5 oz (330 g).
Agency Approval: CE.
