673-8 | Pressure transmitter | range 0-200 psi. | Dwyer Instruments

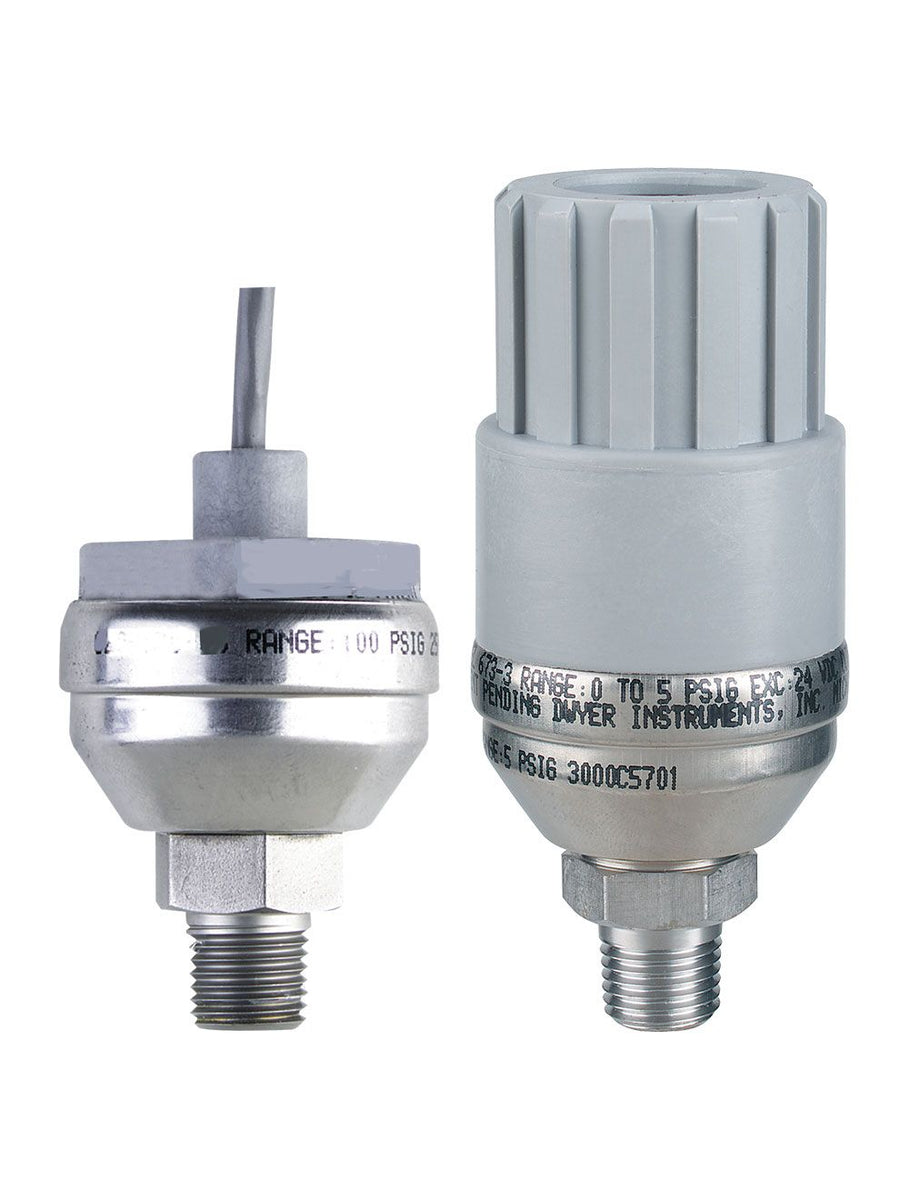

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 673-8

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 673-8 Documents

Instruction Manual Series 673 Catalog Page More Info

Overview

Details for 673-8

Dwyer Instruments 200 PSI Pressure Transmitter (sku: 673-8) Dwyer Instruments Pressure Transmitter, model 673-8, is designed to accurately measure and transmit pressure signals in demanding industrial applications. With a range of 0-200 PSI, this transmitter provides reliable and precise pressure monitoring. Featuring a rugged stainless steel construction, this pressure transmitter can withstand harsh environments and ensure long-lasting performance. Its 4-20mA output signal allows for easy integration with various monitoring and control systems. The 673-8 pressure transmitter finds applications in industrial settings, HVAC systems, manufacturing processes, and more. Its compact design and easy installation make it an ideal choice for space-constrained applications. Key Features: â€¢ Pressure Range: 0-200 PSI â€¢ Output Signal: 4-20mA â€¢ Construction: Rugged stainless steel â€¢ Accuracy: Â±0.25% â€¢ Applications: Industrial settings, HVAC, manufacturing processes â€¢ Shop our HVAC supply store now for the best prices and fast shipping

Series 673 Pressure Transmitter

±0.25% FS Accuracy, 4-20 mA Signal, Ranges to 1000 psi

The low cost Series 673 Pressure Transmitter is a fixed range transmitter designed for harsh environments and suitable for high shock and vibration applications. Constructed of stainless steel, the Series 673 provides a 4 to 20 mA output signal with 0.25% accuracy. Use the Series 673 in industrial OEM equipment, hydraulic systems, HVAC equipment, industrial engines and compressor control.

Calibration Option available under Accessories.

Product Applications

OEM
Hydraulic systems
HVAC equipment
Industrial engines
Compressors

High-shock and vibration resistant insures stability in controlling pressure for processapplications

Specifications

Series: 673 Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 673 Pressure Transmitter
Service: Non-combustible liquid; gas; or vapor.
Wetted Materials: 17-4 PH Stainless Steel.
Accuracy: RSS* (at constant temperature) ±0.25%. Non-linearity (BSFL) ±0.22% FS; Hysteresis 0.10% FS; Non-repeatability 0.05% FS.
Temperature Limits: -40 to 185°F (-40 to 85°C).
Compensated Temperature Range: -40 to 176°F (-40 to 80°C).
Pressure Limits: 2X max range.
Thermal Effects: Zero Shift: ±2.0% FS/100°F (±1.8% FS/50°C); Span Shift: ±1.5% FS/100°F (±1.3% FS/50°C); Warm-up Shift: ±0.1% FS total.
Stability: 0.5% FS/year.
Response Time: 5 ms.
Power Requirements: 9-30 VDC.
Output: 4-20 mA**; 2-wire.
Zero and Span Adjustment: Fixed.
Loop Resistance: 0 to 800 Ω.
Shock: 200 g.
Vibration: 20 g.
Electrical Connections: 2 ft (61 cm) multiconductor cable. Conduit Models: 1/4"-18 (22.3 mm) knockout.
Enclosure: Stainless Steel and Valox.
Weight: 2.3 oz (65 g).
Agency Approvals: CE.
: *RSS of non-linearity; hysteresis; and non-repeatability.**Zero output factory set to within ±0.16 mA; Span (full scale) output factory set to within ±0.16 mA.
