673-6 | Pressure transmitter | range 0-50 psi. | Dwyer Instruments

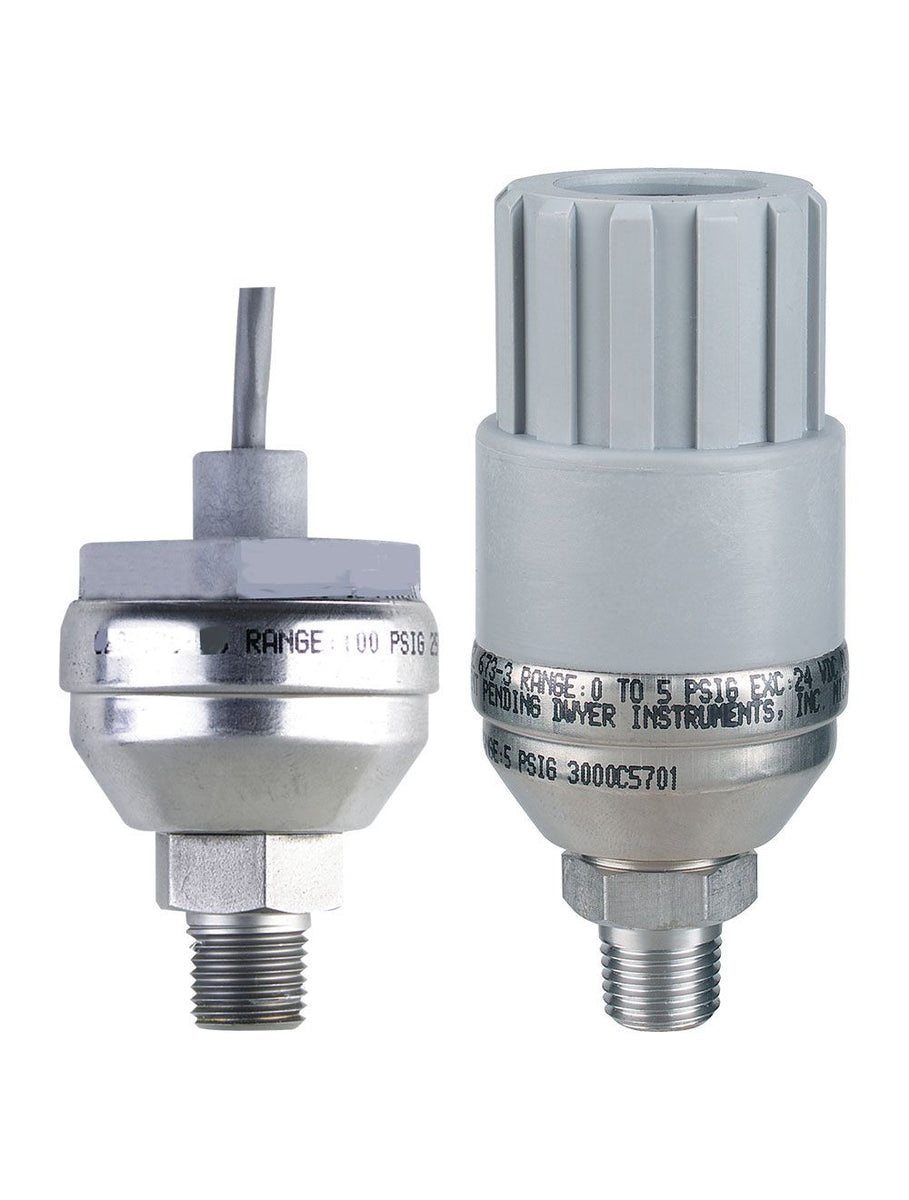

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 673-6

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 673-6 Documents

Instruction Manual Series 673 Catalog Page More Info

Overview

Details for 673-6

Dwyer Instruments NCO-673-6 Pressure Transmitter The Dwyer Instruments NCO-673-6 Pressure Transmitter is a highly accurate and reliable device designed to measure and transmit pressure signals in industrial applications. With a pressure range of 0-50 psi and a 4-20mA output signal, it provides precise and continuous monitoring of pressure levels. Crafted from durable materials, the NCO-673-6 is built to withstand harsh industrial environments. Its compact design and easy installation make it ideal for mounting in tight spaces or on machinery. The transmitter's advanced technology ensures accurate readings over a wide temperature range. Its fast response time and low hysteresis allow for real-time monitoring of pressure fluctuations. Key Features: â€¢ Pressure range: 0-50 psi â€¢ Output signal: 4-20mA â€¢ Compact and rugged design â€¢ Accurate and reliable measurements â€¢ Fast response time and low hysteresis The Dwyer Instruments NCO-673-6 Pressure Transmitter is a valuable tool for industrial engineers and maintenance professionals. It provides reliable pressure monitoring for applications such as process control, equipment monitoring, and safety systems. Trust our HVAC supply store for the best prices and fast shipping on all your industrial equipment needs!

Series 673 Pressure Transmitter

±0.25% FS Accuracy, 4-20 mA Signal, Ranges to 1000 psi

The low cost Series 673 Pressure Transmitter is a fixed range transmitter designed for harsh environments and suitable for high shock and vibration applications. Constructed of stainless steel, the Series 673 provides a 4 to 20 mA output signal with 0.25% accuracy. Use the Series 673 in industrial OEM equipment, hydraulic systems, HVAC equipment, industrial engines and compressor control.

Calibration Option available under Accessories.

Product Applications

OEM
Hydraulic systems
HVAC equipment
Industrial engines
Compressors

High-shock and vibration resistant insures stability in controlling pressure for processapplications

Specifications

Series: 673 Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 673 Pressure Transmitter
Service: Non-combustible liquid; gas; or vapor.
Wetted Materials: 17-4 PH Stainless Steel.
Accuracy: RSS* (at constant temperature) ±0.25%. Non-linearity (BSFL) ±0.22% FS; Hysteresis 0.10% FS; Non-repeatability 0.05% FS.
Temperature Limits: -40 to 185°F (-40 to 85°C).
Compensated Temperature Range: -40 to 176°F (-40 to 80°C).
Pressure Limits: 2X max range.
Thermal Effects: Zero Shift: ±2.0% FS/100°F (±1.8% FS/50°C); Span Shift: ±1.5% FS/100°F (±1.3% FS/50°C); Warm-up Shift: ±0.1% FS total.
Stability: 0.5% FS/year.
Response Time: 5 ms.
Power Requirements: 9-30 VDC.
Output: 4-20 mA**; 2-wire.
Zero and Span Adjustment: Fixed.
Loop Resistance: 0 to 800 Ω.
Shock: 200 g.
Vibration: 20 g.
Electrical Connections: 2 ft (61 cm) multiconductor cable. Conduit Models: 1/4"-18 (22.3 mm) knockout.
Enclosure: Stainless Steel and Valox.
Weight: 2.3 oz (65 g).
Agency Approvals: CE.
: *RSS of non-linearity; hysteresis; and non-repeatability.**Zero output factory set to within ±0.16 mA; Span (full scale) output factory set to within ±0.16 mA.
