673-4C | Pressure transmitter | range 0-10 psi. | Dwyer Instruments

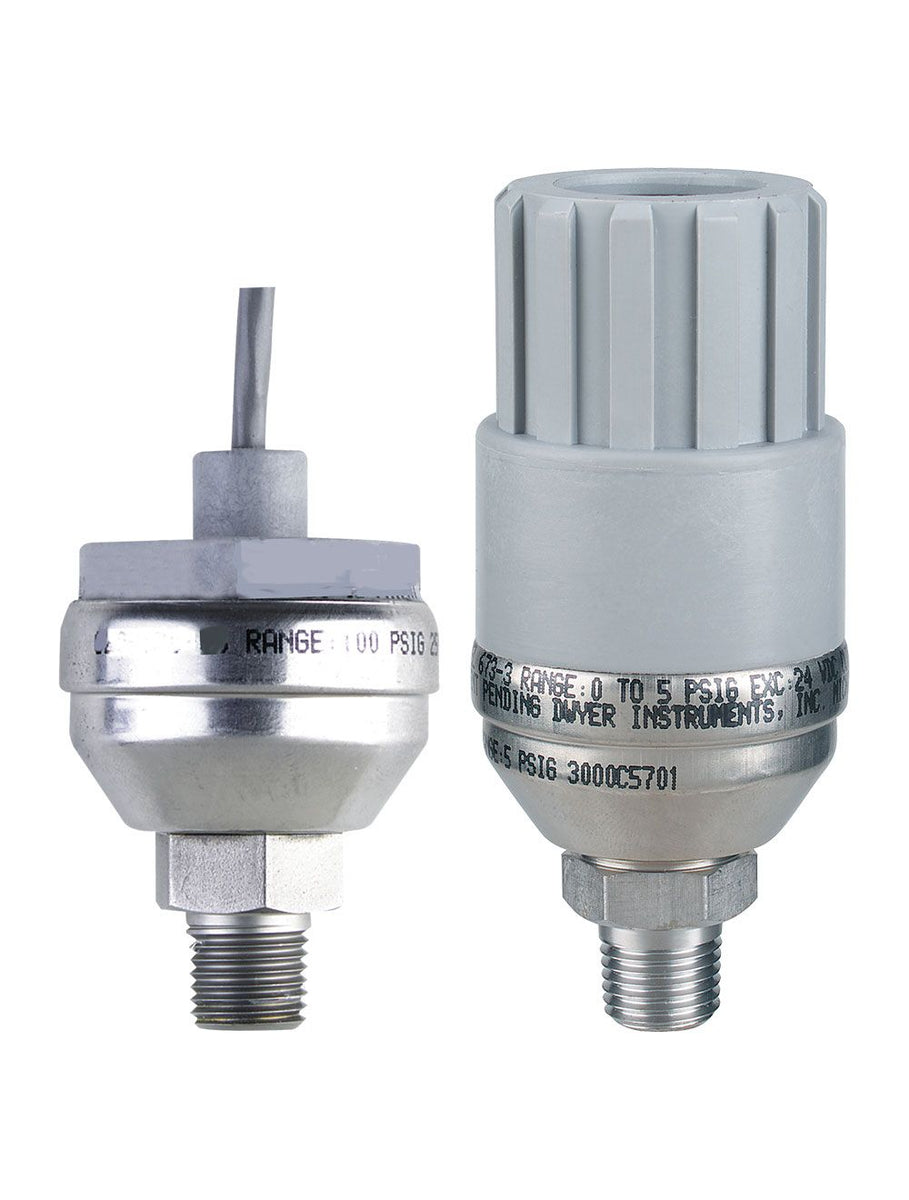

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 673-4C

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 673-4C Documents

Instruction Manual Series 673 Catalog Page More Info

Overview

Details for 673-4C

Dwyer Instruments NCO-673-4C 10 PSI Pressure Transmitter The Dwyer Instruments NCO-673-4C 10 PSI Pressure Transmitter is a highly accurate and reliable device designed to measure and transmit pressure signals in industrial applications. Featuring a rugged construction and advanced technology, this transmitter delivers precise pressure readings and ensures reliable performance. Key Features: * Pressure Range: 0 to 10 PSI * Output Type: 4-20 mA * Accuracy: Â±0.5% of full scale * Operating Temperature: -40Â°F to 150Â°F * Compact and lightweight design for easy installation Applications: * Monitoring pressure levels in hydraulic and pneumatic systems * Measuring pressure in process lines * Controlling pressure-sensitive equipment * Ensuring accuracy in pressure testing Benefits: * Enhanced process control and efficiency * Improved system safety and reliability * Reduced downtime and maintenance costs Additional Features: * Corrosion-resistant stainless steel wetted parts * Integral mounting bracket for versatile installation * Intrinsically safe design for hazardous environments Upgrade your industrial operations with the Dwyer Instruments NCO-673-4C 10 PSI Pressure Transmitter. Its precision, reliability, and ease of use make it an essential tool for engineers and maintenance professionals seeking accurate pressure measurements. Our HVAC supply store offers competitive prices and fast shipping, ensuring you get the best value for your investment.

Series 673 Pressure Transmitter

±0.25% FS Accuracy, 4-20 mA Signal, Ranges to 1000 psi

The low cost Series 673 Pressure Transmitter is a fixed range transmitter designed for harsh environments and suitable for high shock and vibration applications. Constructed of stainless steel, the Series 673 provides a 4 to 20 mA output signal with 0.25% accuracy. Use the Series 673 in industrial OEM equipment, hydraulic systems, HVAC equipment, industrial engines and compressor control.

Calibration Option available under Accessories.

Product Applications

OEM
Hydraulic systems
HVAC equipment
Industrial engines
Compressors

High-shock and vibration resistant insures stability in controlling pressure for processapplications

Specifications

Series: 673 Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 673 Pressure Transmitter
Service: Non-combustible liquid; gas; or vapor.
Wetted Materials: 17-4 PH Stainless Steel.
Accuracy: RSS* (at constant temperature) ±0.25%. Non-linearity (BSFL) ±0.22% FS; Hysteresis 0.10% FS; Non-repeatability 0.05% FS.
Temperature Limits: -40 to 185°F (-40 to 85°C).
Compensated Temperature Range: -40 to 176°F (-40 to 80°C).
Pressure Limits: 2X max range.
Thermal Effects: Zero Shift: ±2.0% FS/100°F (±1.8% FS/50°C); Span Shift: ±1.5% FS/100°F (±1.3% FS/50°C); Warm-up Shift: ±0.1% FS total.
Stability: 0.5% FS/year.
Response Time: 5 ms.
Power Requirements: 9-30 VDC.
Output: 4-20 mA**; 2-wire.
Zero and Span Adjustment: Fixed.
Loop Resistance: 0 to 800 Ω.
Shock: 200 g.
Vibration: 20 g.
Electrical Connections: 2 ft (61 cm) multiconductor cable. Conduit Models: 1/4"-18 (22.3 mm) knockout.
Enclosure: Stainless Steel and Valox.
Weight: 2.3 oz (65 g).
Agency Approvals: CE.
: *RSS of non-linearity; hysteresis; and non-repeatability.**Zero output factory set to within ±0.16 mA; Span (full scale) output factory set to within ±0.16 mA.
