673-3 | Pressure transmitter | range 0-5 psi. | Dwyer Instruments

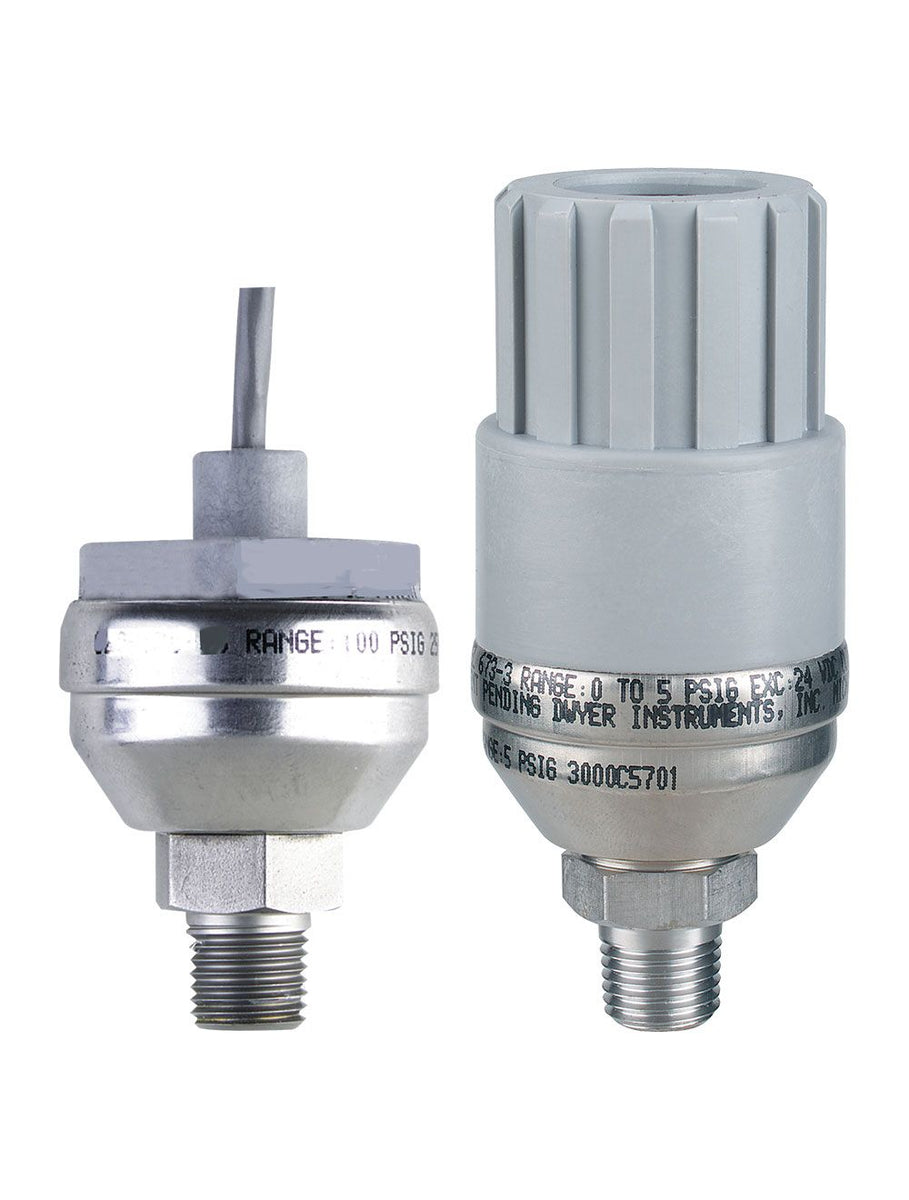

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 673-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 673-3 Documents

Instruction Manual Series 673 Catalog Page More Info

Overview

Details for 673-3

Dwyer Instruments NCO-673-3: Precision Pressure Measurement for Industrial Applications The Dwyer Instruments NCO-673-3 is a high-performance pressure transmitter designed to provide accurate and reliable pressure measurements in industrial settings. This 0-5 psi pressure transmitter is crafted from durable materials to withstand harsh environments, ensuring longevity and reliability. Featuring a standard design, the NCO-673-3 is well-suited for a wide range of pressure monitoring applications, including process control, instrumentation, and HVAC systems. Its compact size and easy installation make it a versatile choice for various industrial machinery and equipment. With its exceptional precision and accuracy, this pressure transmitter delivers consistent and reliable measurements, enabling efficient process monitoring and control. Its robust construction and rugged design ensure reliable operation even in demanding industrial environments. Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

Series 673 Pressure Transmitter

±0.25% FS Accuracy, 4-20 mA Signal, Ranges to 1000 psi

The low cost Series 673 Pressure Transmitter is a fixed range transmitter designed for harsh environments and suitable for high shock and vibration applications. Constructed of stainless steel, the Series 673 provides a 4 to 20 mA output signal with 0.25% accuracy. Use the Series 673 in industrial OEM equipment, hydraulic systems, HVAC equipment, industrial engines and compressor control.

Calibration Option available under Accessories.

Product Applications

OEM
Hydraulic systems
HVAC equipment
Industrial engines
Compressors

High-shock and vibration resistant insures stability in controlling pressure for processapplications

Specifications

Series: 673 Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 673 Pressure Transmitter
Service: Non-combustible liquid; gas; or vapor.
Wetted Materials: 17-4 PH Stainless Steel.
Accuracy: RSS* (at constant temperature) ±0.25%. Non-linearity (BSFL) ±0.22% FS; Hysteresis 0.10% FS; Non-repeatability 0.05% FS.
Temperature Limits: -40 to 185°F (-40 to 85°C).
Compensated Temperature Range: -40 to 176°F (-40 to 80°C).
Pressure Limits: 2X max range.
Thermal Effects: Zero Shift: ±2.0% FS/100°F (±1.8% FS/50°C); Span Shift: ±1.5% FS/100°F (±1.3% FS/50°C); Warm-up Shift: ±0.1% FS total.
Stability: 0.5% FS/year.
Response Time: 5 ms.
Power Requirements: 9-30 VDC.
Output: 4-20 mA**; 2-wire.
Zero and Span Adjustment: Fixed.
Loop Resistance: 0 to 800 Ω.
Shock: 200 g.
Vibration: 20 g.
Electrical Connections: 2 ft (61 cm) multiconductor cable. Conduit Models: 1/4"-18 (22.3 mm) knockout.
Enclosure: Stainless Steel and Valox.
Weight: 2.3 oz (65 g).
Agency Approvals: CE.
: *RSS of non-linearity; hysteresis; and non-repeatability.**Zero output factory set to within ±0.16 mA; Span (full scale) output factory set to within ±0.16 mA.
