673-10 | Pressure transmitter | range 0-1000 psi. | Dwyer Instruments

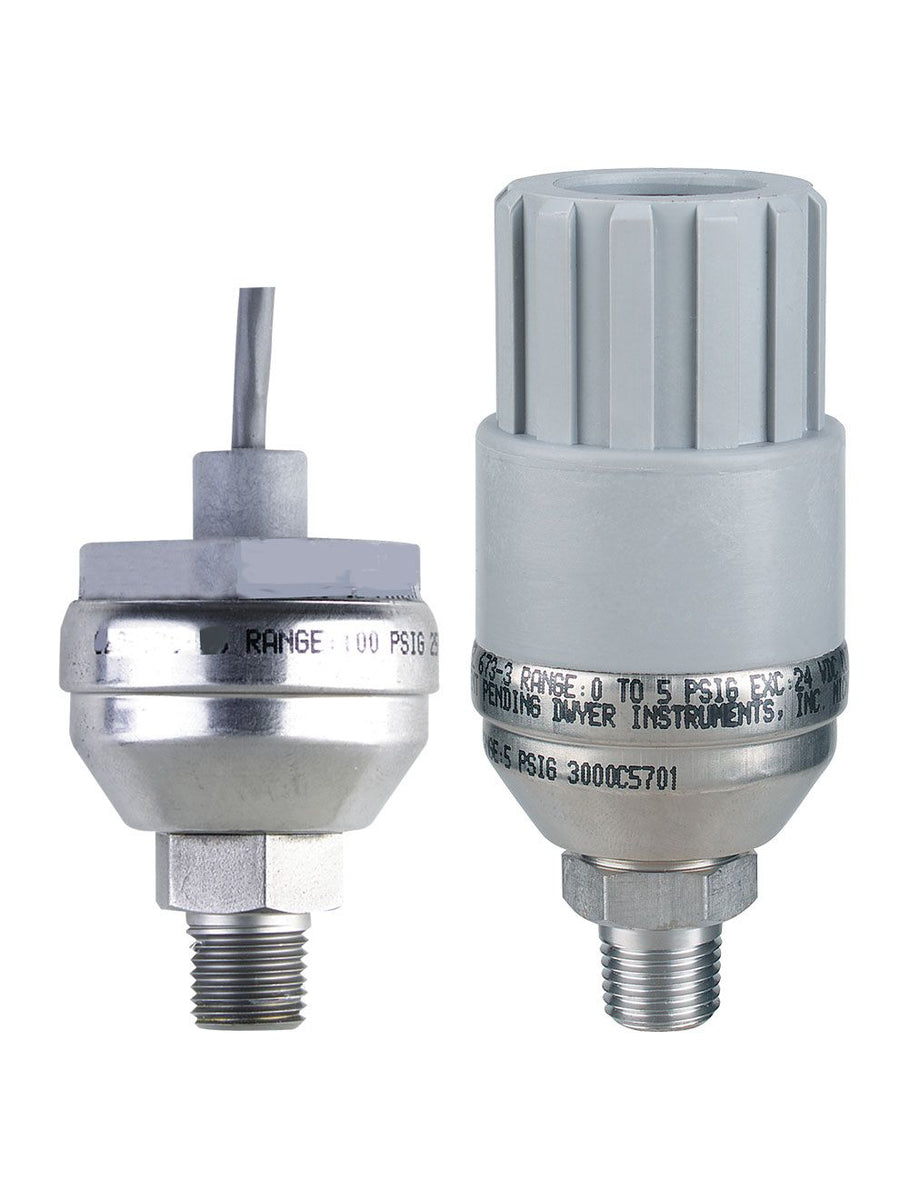

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 673-10

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 673-10 Documents

Instruction Manual Series 673 Catalog Page More Info

Overview

Details for 673-10

Dwyer Instruments 0-1000PSI Pressure Transmiter (673-10) This precise and reliable pressure transmitter from Dwyer Instruments provides accurate measurements for industrial applications. With a measurement range of 0-1000PSI, the 673-10 transmitter is ideal for monitoring pressure levels in various systems. Its compact and rugged design ensures durability even in harsh industrial environments. The transmitter utilizes state-of-the-art technology for accurate and consistent readings, making it an indispensable tool for monitoring pressure in diverse applications such as process control, machine monitoring, and fluid power systems. Key Features: - Measurement range: 0-1000PSI - Durable and compact design - Accurate and reliable readings - Versatile applications in industrial settings our HVAC supply store offers the best prices and fast shipping for your industrial supplies. Order the Dwyer Instruments 673-10 Pressure Transmiter today and experience precise pressure monitoring solutions.

Series 673 Pressure Transmitter

±0.25% FS Accuracy, 4-20 mA Signal, Ranges to 1000 psi

The low cost Series 673 Pressure Transmitter is a fixed range transmitter designed for harsh environments and suitable for high shock and vibration applications. Constructed of stainless steel, the Series 673 provides a 4 to 20 mA output signal with 0.25% accuracy. Use the Series 673 in industrial OEM equipment, hydraulic systems, HVAC equipment, industrial engines and compressor control.

Calibration Option available under Accessories.

Product Applications

OEM
Hydraulic systems
HVAC equipment
Industrial engines
Compressors

High-shock and vibration resistant insures stability in controlling pressure for processapplications

Specifications

Series: 673 Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 673 Pressure Transmitter
Service: Non-combustible liquid; gas; or vapor.
Wetted Materials: 17-4 PH Stainless Steel.
Accuracy: RSS* (at constant temperature) ±0.25%. Non-linearity (BSFL) ±0.22% FS; Hysteresis 0.10% FS; Non-repeatability 0.05% FS.
Temperature Limits: -40 to 185°F (-40 to 85°C).
Compensated Temperature Range: -40 to 176°F (-40 to 80°C).
Pressure Limits: 2X max range.
Thermal Effects: Zero Shift: ±2.0% FS/100°F (±1.8% FS/50°C); Span Shift: ±1.5% FS/100°F (±1.3% FS/50°C); Warm-up Shift: ±0.1% FS total.
Stability: 0.5% FS/year.
Response Time: 5 ms.
Power Requirements: 9-30 VDC.
Output: 4-20 mA**; 2-wire.
Zero and Span Adjustment: Fixed.
Loop Resistance: 0 to 800 Ω.
Shock: 200 g.
Vibration: 20 g.
Electrical Connections: 2 ft (61 cm) multiconductor cable. Conduit Models: 1/4"-18 (22.3 mm) knockout.
Enclosure: Stainless Steel and Valox.
Weight: 2.3 oz (65 g).
Agency Approvals: CE.
: *RSS of non-linearity; hysteresis; and non-repeatability.**Zero output factory set to within ±0.16 mA; Span (full scale) output factory set to within ±0.16 mA.
