673-1 | Pressure transmitter | range 0-1 psi. | Dwyer Instruments

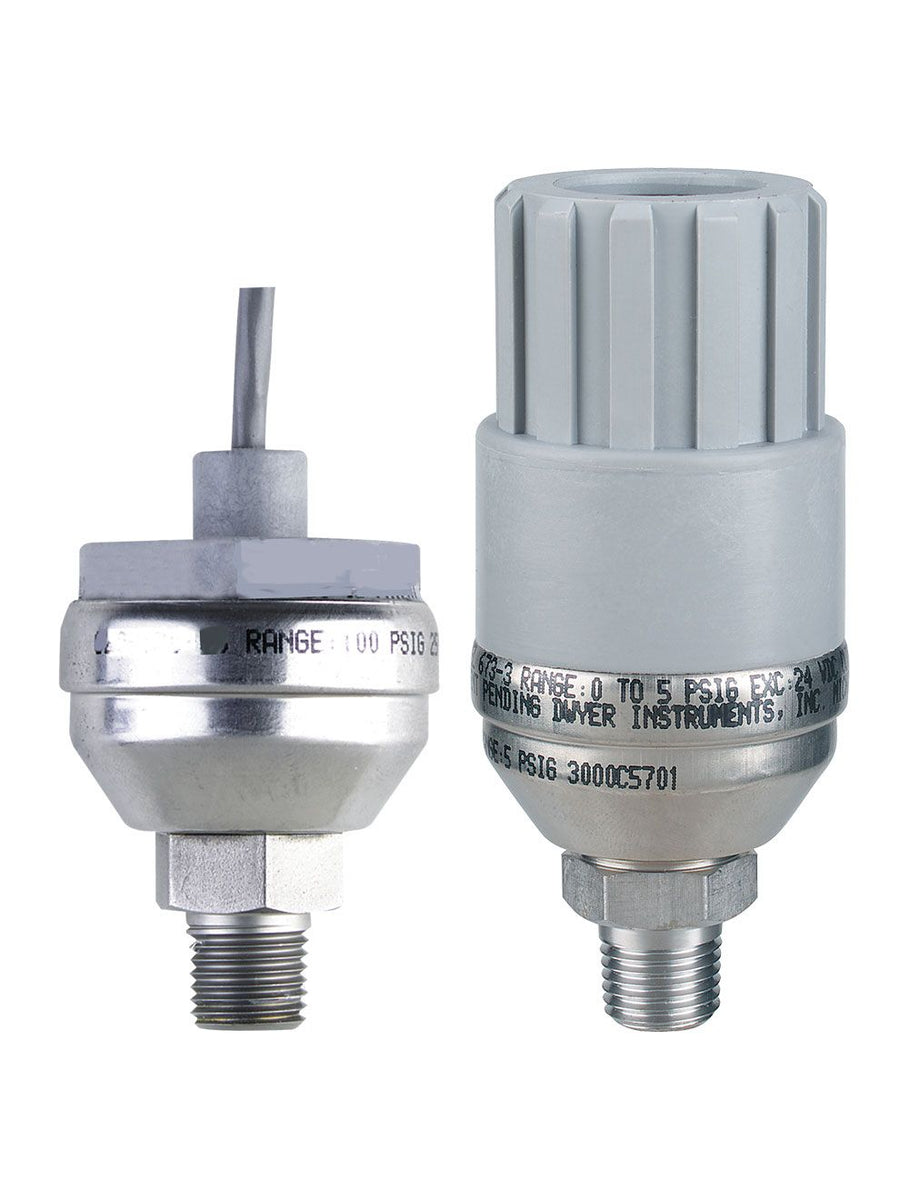

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 673-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 673-1 Documents

Instruction Manual Series 673 Catalog Page More Info

Overview

Details for 673-1

NCO-673-1 Dwyer Instruments 0-1# Pressure Transmitter Dwyer Instruments' NCO-673-1 is a high-performance pressure transmitter designed to provide accurate and reliable pressure measurements in industrial applications. With a wide pressure measurement range of 0-1#, this transmitter is ideal for monitoring and controlling various process systems. The NCO-673-1 features a rugged construction, ensuring durability in demanding environments. Its compact design allows for easy installation in space-constrained areas. The transmitter utilizes a piezoresistive sensing element, delivering exceptional accuracy and stability over a wide range of temperatures. Its analog output signal enables seamless integration with data acquisition systems and PLCs for monitoring and control purposes. The transmitter also supports a variety of pressure connections, providing flexibility for integration into different pipe systems. Key Features: * Pressure measurement range: 0-1# * Piezoresistive sensing element for accuracy and stability * Rugged construction for durability * Compact design for easy installation * Analog output signal for integration with data acquisition systems and PLCs Applications: * Pressure monitoring and control in manufacturing processes * Compressed air systems * Liquid level monitoring * Hydraulic and pneumatic systems Shop our HVAC supply store for the Best Prices and Fast Shipping!

Series 673 Pressure Transmitter

±0.25% FS Accuracy, 4-20 mA Signal, Ranges to 1000 psi

The low cost Series 673 Pressure Transmitter is a fixed range transmitter designed for harsh environments and suitable for high shock and vibration applications. Constructed of stainless steel, the Series 673 provides a 4 to 20 mA output signal with 0.25% accuracy. Use the Series 673 in industrial OEM equipment, hydraulic systems, HVAC equipment, industrial engines and compressor control.

Calibration Option available under Accessories.

Product Applications

OEM
Hydraulic systems
HVAC equipment
Industrial engines
Compressors

High-shock and vibration resistant insures stability in controlling pressure for processapplications

Specifications

Series: 673 Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 673 Pressure Transmitter
Service: Non-combustible liquid; gas; or vapor.
Wetted Materials: 17-4 PH Stainless Steel.
Accuracy: RSS* (at constant temperature) ±0.25%. Non-linearity (BSFL) ±0.22% FS; Hysteresis 0.10% FS; Non-repeatability 0.05% FS.
Temperature Limits: -40 to 185°F (-40 to 85°C).
Compensated Temperature Range: -40 to 176°F (-40 to 80°C).
Pressure Limits: 2X max range.
Thermal Effects: Zero Shift: ±2.0% FS/100°F (±1.8% FS/50°C); Span Shift: ±1.5% FS/100°F (±1.3% FS/50°C); Warm-up Shift: ±0.1% FS total.
Stability: 0.5% FS/year.
Response Time: 5 ms.
Power Requirements: 9-30 VDC.
Output: 4-20 mA**; 2-wire.
Zero and Span Adjustment: Fixed.
Loop Resistance: 0 to 800 Ω.
Shock: 200 g.
Vibration: 20 g.
Electrical Connections: 2 ft (61 cm) multiconductor cable. Conduit Models: 1/4"-18 (22.3 mm) knockout.
Enclosure: Stainless Steel and Valox.
Weight: 2.3 oz (65 g).
Agency Approvals: CE.
: *RSS of non-linearity; hysteresis; and non-repeatability.**Zero output factory set to within ±0.16 mA; Span (full scale) output factory set to within ±0.16 mA.
