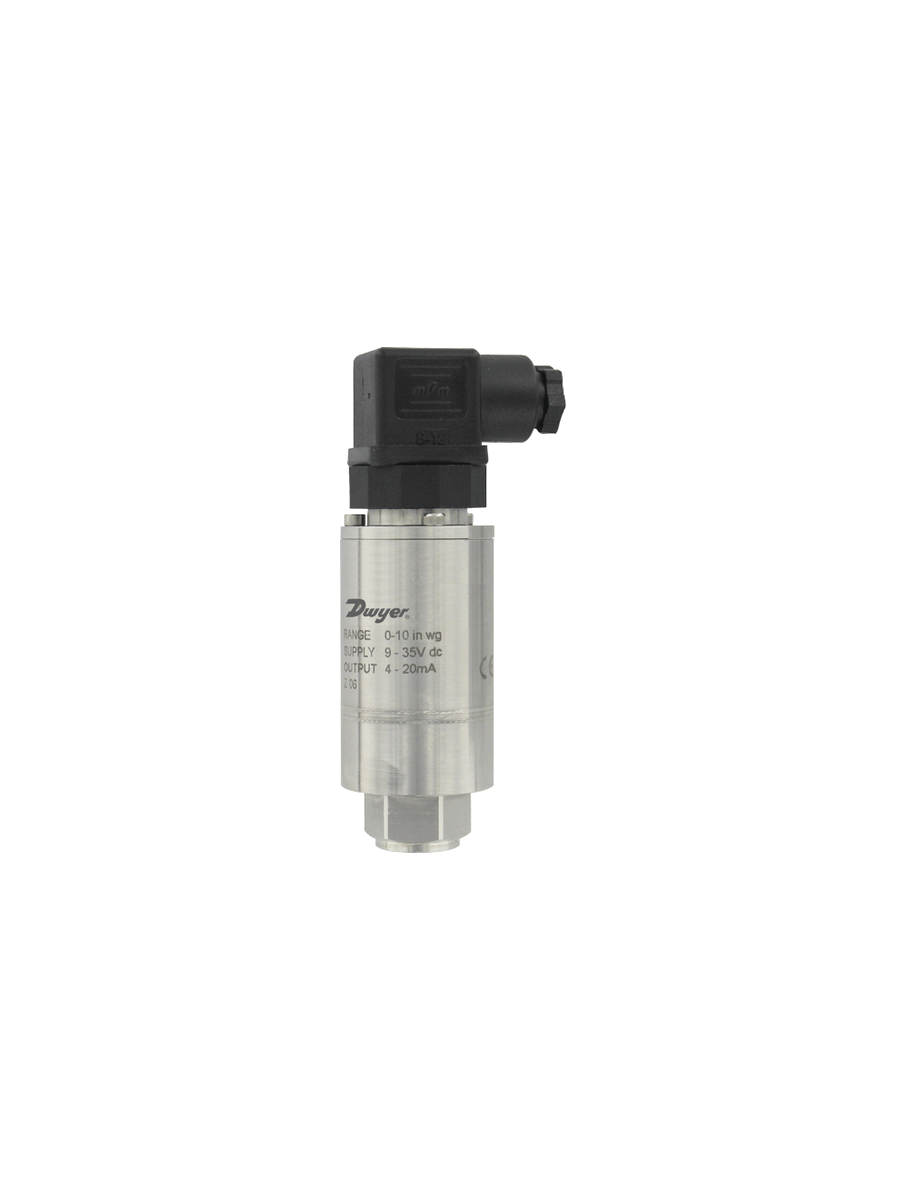

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 672-4-A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 672-4-A Documents

Instruction Manual Series 672 Catalog Page More Info

Overview

Details for 672-4-A

Dwyer Instruments NCO-672-4-A Low Pressure Transmitter: The Dwyer Instruments NCO-672-4-A is a highly precise and reliable low-pressure transmitter designed to measure and transmit pressure readings within a range of 0-50" WC. Engineered with state-of-the-art technology and constructed from durable stainless steel, this transmitter delivers exceptional performance in demanding industrial environments. Key Features: Measuring Range: 0-50" WC Accuracy: Â±0.5% FS Output Signal: 4-20 mA Process Connection: 1/4" NPT Power Supply: 12-32 VDC Benefits: * Provides accurate and reliable pressure measurements in low-pressure applications. * Features a 4-20 mA output signal, which simplifies integration with various industrial control systems. * Constructed from corrosion-resistant stainless steel, ensuring longevity in harsh conditions. * Easy to install and maintain, reducing downtime and maintenance costs. Applications: * HVAC systems monitoring * Industrial process control * Leak detection * Pressure filtration systems Our HVAC supply store offers the NCO-672-4-A Low Pressure Transmitter at competitive prices, along with fast shipping and exceptional customer service. Contact us today to place your order and benefit from our industry-leading expertise and product availability.

Series 672 Low Pressure Transducer

Single Pressure Connection, Ranges Down to 10 in w.c.

The Series 672 Low Pressure Transducer is a perfect solution to any application where a very accurate low pressure transducer is necessary. Using variable capacitance technology, the Series 672 is designed to measure pressures as low as 10 in w.c. up to 400 in w.c., very low ranges for a single connection pressure transducer. The 672 also features a 0.25% F.S. accuracy. Use the Series 672 in liquid level, flood warning, waste water, clean room, and open channel flow applications.

Calibration Option available under Accessories.

Product Applications

Liquid level
Flood warning
Waste water
Clean room
Open flow applications

Low range high accuracy provides precise control for process applications

Specifications

Series: 672 Low Pressure Transducer
freeship
Category/Type: Pressure
Type: Single Pressure
Series: 672 Low Pressure Transducer
Service: Compatible liquids and gases.
Wetted Materials: 318 Duplex SS; Ceramic; Fluoroelastomer (FKM).
Housing Material: 318 Stainless Steel.
Accuracy: ±0.25% F.S. (RSS). Includes non-linearity; hysteresis; and non-repeatability.
Stability: 0.25% F.S./1 year.
Temperature Limits: -40 to 212°F (-40 to 100°C).
Compensated Temperature Limits: -5 to 140°F (-20 to 60°C).
Pressure Limits: 29 psi (2 bar) for up to 85" w.c. (0.2 bar) ranges; 58 psi (4 bar) for 85" to 140" w.c. (0.2 to 0.35 bar); 73 psi (5 bar) for 141" to 400" w.c. (0.35 to 1 bar).
Thermal Effects: Zero: 1.0%F.S./100°F (2.0%F.S./100°C); Span: 1.0%F.S./100°F (2.0%F.S./100°C).
Power Requirements: 4-20 mA: 9-35 VDC; 0-5 VDC: 7.5-35 VDC.
Output Signal: 4-20 mA (2-wire) or 0-5 VDC (3-wire).
Zero & Span Adjustment: ±10% F.S. each (by Potentiometer).
Response Time: 5 ms.
Max Loop Resistance: 1.325 kΩ.
Electrical Connections: Large DIN 43650 connector with mating plug.
Process Connection: 1/4"-18 NPT male.
Enclosure Rating: NEMA 4X (IP65).
Weight: 11.6 oz (330 g).
Agency Approval: CE.
