672-3-V | Low pressure transducer | 0-25" w.c. | 0-5 VDC output. | Dwyer Instruments

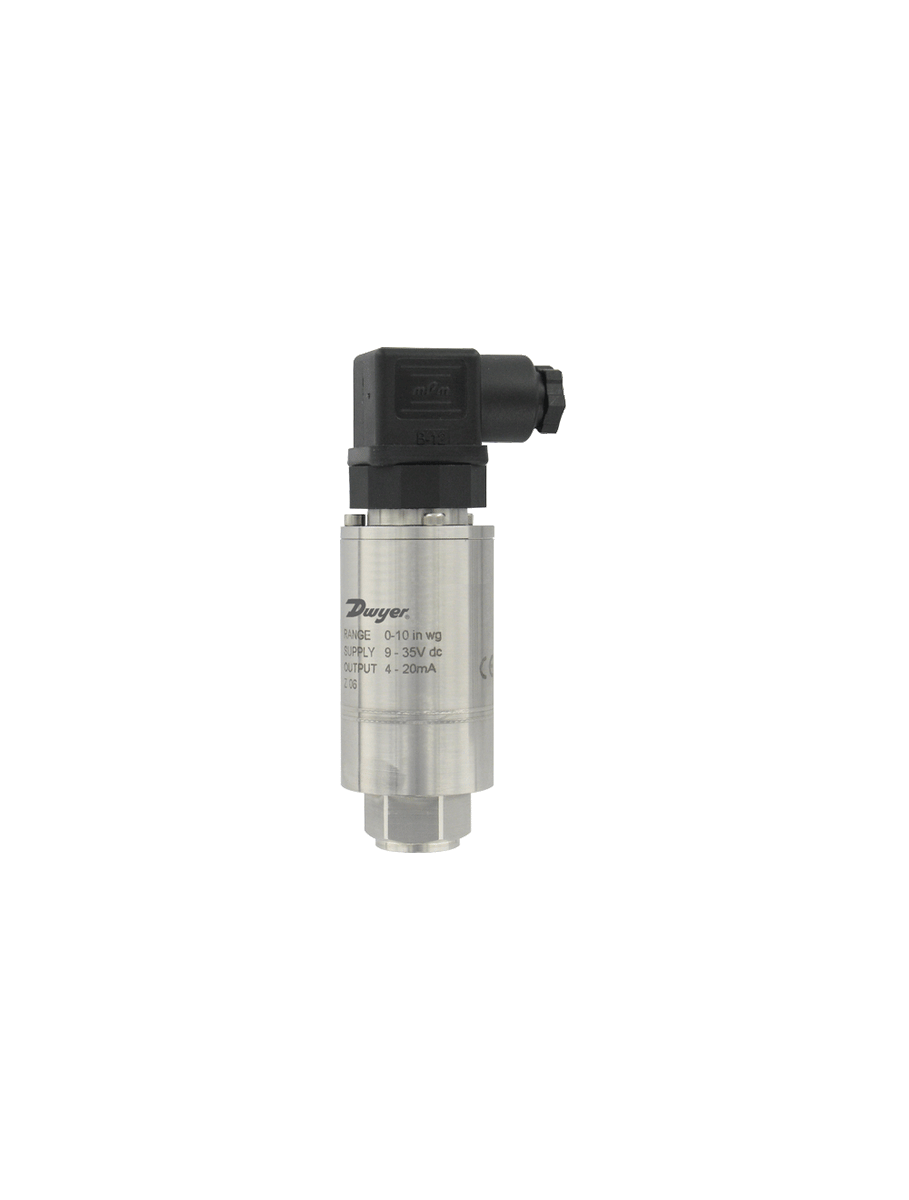

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 672-3-V

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 672-3-V Documents

Instruction Manual Series 672 Catalog Page More Info

Overview

Details for 672-3-V

Dwyer Instruments NCO-672-3-V: Low-Pressure Transmitter for Industrial Applications The Dwyer Instruments NCO-672-3-V is a highly accurate and reliable low-pressure transmitter designed specifically for industrial applications. With its 0-25" WC (0-5V) measurement range, this transmitter provides precise pressure readings for a wide range of industrial processes. Crafted from durable materials, the NCO-672-3-V withstands harsh industrial environments, ensuring long-term performance and reliability. Its compact size and lightweight design make it easy to install in tight spaces, while its versatility allows for various mounting options. The Dwyer NCO-672-3-V transmitter offers exceptional accuracy and repeatability, making it an ideal solution for demanding industrial applications where precision is paramount. It utilizes a voltage output of 0-5V, providing a linear and proportional signal for easy integration with control systems. Whether you need to monitor pressure levels in pneumatic systems, HVAC applications, or other industrial processes, the Dwyer Instruments NCO-672-3-V low-pressure transmitter delivers reliable and accurate measurements. Choose our HVAC supply store for the best prices and fast shipping on all your industrial products!

Series 672 Low Pressure Transducer

Single Pressure Connection, Ranges Down to 10 in w.c.

The Series 672 Low Pressure Transducer is a perfect solution to any application where a very accurate low pressure transducer is necessary. Using variable capacitance technology, the Series 672 is designed to measure pressures as low as 10 in w.c. up to 400 in w.c., very low ranges for a single connection pressure transducer. The 672 also features a 0.25% F.S. accuracy. Use the Series 672 in liquid level, flood warning, waste water, clean room, and open channel flow applications.

Calibration Option available under Accessories.

Product Applications

Liquid level
Flood warning
Waste water
Clean room
Open flow applications

Low range high accuracy provides precise control for process applications

Specifications

Series: 672 Low Pressure Transducer
freeship
Category/Type: Pressure
Type: Single Pressure
Series: 672 Low Pressure Transducer
Service: Compatible liquids and gases.
Wetted Materials: 318 Duplex SS; Ceramic; Fluoroelastomer (FKM).
Housing Material: 318 Stainless Steel.
Accuracy: ±0.25% F.S. (RSS). Includes non-linearity; hysteresis; and non-repeatability.
Stability: 0.25% F.S./1 year.
Temperature Limits: -40 to 212°F (-40 to 100°C).
Compensated Temperature Limits: -5 to 140°F (-20 to 60°C).
Pressure Limits: 29 psi (2 bar) for up to 85" w.c. (0.2 bar) ranges; 58 psi (4 bar) for 85" to 140" w.c. (0.2 to 0.35 bar); 73 psi (5 bar) for 141" to 400" w.c. (0.35 to 1 bar).
Thermal Effects: Zero: 1.0%F.S./100°F (2.0%F.S./100°C); Span: 1.0%F.S./100°F (2.0%F.S./100°C).
Power Requirements: 4-20 mA: 9-35 VDC; 0-5 VDC: 7.5-35 VDC.
Output Signal: 4-20 mA (2-wire) or 0-5 VDC (3-wire).
Zero & Span Adjustment: ±10% F.S. each (by Potentiometer).
Response Time: 5 ms.
Max Loop Resistance: 1.325 kΩ.
Electrical Connections: Large DIN 43650 connector with mating plug.
Process Connection: 1/4"-18 NPT male.
Enclosure Rating: NEMA 4X (IP65).
Weight: 11.6 oz (330 g).
Agency Approval: CE.
