668-6 | Differential pressure transmitter | range 0-10" w.c. | Dwyer Instruments

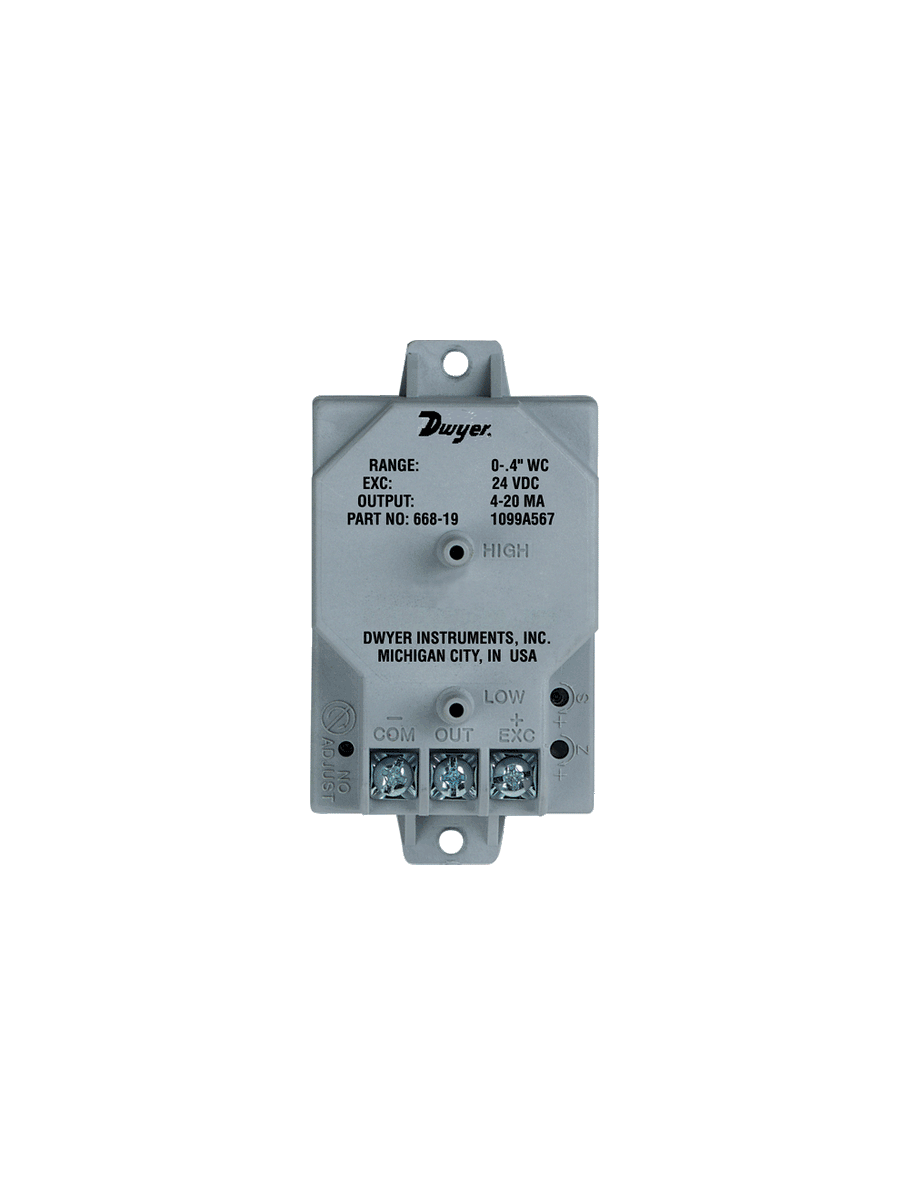

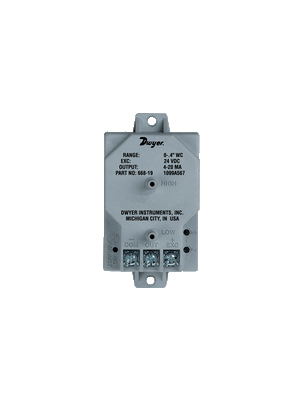

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 668-6

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 668-6 Documents

Instruction Manual Series 668 Catalog Page 668 More Info

Overview

Details for 668-6

Ensure Optimal Airflow with Dwyer Instruments NCO-668-6 Differential Pressure Transducer The Dwyer Instruments NCO-668-6 Differential Pressure Transducer provides precise airflow readings for industrial applications. This transducer is specifically designed to measure the pressure difference between two points in an airflow system, such as across a filter or fan. The NCO-668-6 features a durable construction, ensuring reliable operation in harsh environments. Key Features: * Accurate differential pressure measurement * Rugged design for industrial applications * Versatile compatibility with various gases and liquids * Measures pressure difference up to 5 inches of water column (WC) * Compact size for easy installation Whether you're fine-tuning airflow in an HVAC system or optimizing industrial processes, the Dwyer Instruments NCO-668-6 Differential Pressure Transducer offers a reliable and cost-effective solution. Our team at our HVAC supply store is committed to providing the best prices and fast shipping for all your industrial needs. Order your NCO-668-6 today and experience the precision and durability of Dwyer Instruments.

Series 668 Differential Pressure Transmitter

Ranges from 0 to 100" w.c., Overpressure Protection to 10 psig, ±1% Accuracy

Our low cost Series 668 Differential Pressure Transmitter is capable of measuring low pressures with a ±1% accuracy - ideally suited for proper building pressurization and air flow control. Transmitters can withstand up to 10 psig overpressure with no damage to the unit. Variable capacitance sensor design provides excellent sensitivity and long-term stability. Compact, lightweight design makes installation simple and easy. Units also feature reverse-polarity protection.

Calibration Option available under Accessories.

Product Applications

Variable air volume systems
HVAC
Building management

Good accuracy at low pressure ranges provides exceptional value for ensuring control and minimizing costly out of specification conditions
High overpressure rating eliminates possible damage to unit reducing unnecessary service time

Specifications

Series: 668 Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 668 Differential Pressure Transmitter
Service: Air and non-conductive gases.
Accuracy: ±1% FS (RSS); (includes non-linearity; hysteresis; and non-repeatability).
Temperature Limits: Operating: 0 to 150°F (-18 to 65°C); Storage: -40 to 185°F (-40 to 85°C).
Pressure Limits: 10 psig (0.69 bar).
Compensated Temperature Range: 0 to 150°F (-18 to 65°C).
Thermal Effects: 0.033% FS/°F (0.18% FS/°C).
Supply Voltage: 12 to 30 VDC.
Output: 4 to 20 mA; 2-wire.
Zero and Span Adjustment: ±1 mA; non-interactive.
Response Time: <60 msec.
Loop Resistance: 0 to 800 Ω.
Electrical Connection: Terminal strip.
Pressure Connection: 3/16" OD fitting for 1/4" ID tubing.
Housing: Fire retardant glass filled polyester.
Weight: 3 oz (85 g).
Agency Approval: CE.
