668-1 | Differential pressure transmitter | range 0-0.25" w.c. | Dwyer Instruments

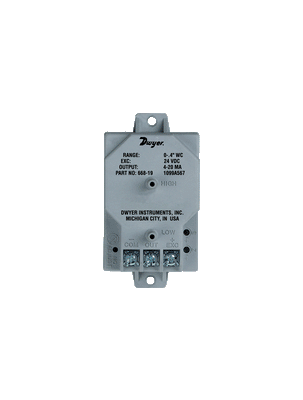

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 668-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 668-1 Documents

Instruction Manual Series 668 Catalog Page 668 More Info

Overview

Details for 668-1

Dwyer Instruments NCO-668-1 Differential Pressure Transmitter: The NCO-668-1 is a highly accurate and reliable differential pressure transmitter from Dwyer Instruments. It measures pressure differences in the range of 0-0.25" W.C., making it ideal for a wide range of industrial applications. The transmitter features a robust construction with a stainless steel sensor and aluminum housing, ensuring durability in harsh operating conditions. With its 4-20 mA output signal, the NCO-668-1 seamlessly integrates with various control systems. Its compact design allows for easy installation in space-constrained applications. The transmitter also boasts a high accuracy of Â±2.5% of full scale, providing precise and reliable pressure measurements. Industries such as automotive, pharmaceutical, chemical processing, and HVAC rely on the NCO-668-1 for monitoring and controlling pressure in various processes. Its suitability for clean or dry gas measurements makes it a versatile solution for a diverse range of applications. Our HVAC supply store offers the NCO-668-1 at competitive prices with fast shipping, ensuring timely delivery of this essential component for industrial and maintenance operations.

Series 668 Differential Pressure Transmitter

Ranges from 0 to 100" w.c., Overpressure Protection to 10 psig, ±1% Accuracy

Our low cost Series 668 Differential Pressure Transmitter is capable of measuring low pressures with a ±1% accuracy - ideally suited for proper building pressurization and air flow control. Transmitters can withstand up to 10 psig overpressure with no damage to the unit. Variable capacitance sensor design provides excellent sensitivity and long-term stability. Compact, lightweight design makes installation simple and easy. Units also feature reverse-polarity protection.

Calibration Option available under Accessories.

Product Applications

Variable air volume systems
HVAC
Building management

Good accuracy at low pressure ranges provides exceptional value for ensuring control and minimizing costly out of specification conditions
High overpressure rating eliminates possible damage to unit reducing unnecessary service time

Specifications

Series: 668 Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 668 Differential Pressure Transmitter
Service: Air and non-conductive gases.
Accuracy: ±1% FS (RSS); (includes non-linearity; hysteresis; and non-repeatability).
Temperature Limits: Operating: 0 to 150°F (-18 to 65°C); Storage: -40 to 185°F (-40 to 85°C).
Pressure Limits: 10 psig (0.69 bar).
Compensated Temperature Range: 0 to 150°F (-18 to 65°C).
Thermal Effects: 0.033% FS/°F (0.18% FS/°C).
Supply Voltage: 12 to 30 VDC.
Output: 4 to 20 mA; 2-wire.
Zero and Span Adjustment: ±1 mA; non-interactive.
Response Time: <60 msec.
Loop Resistance: 0 to 800 Ω.
Electrical Connection: Terminal strip.
Pressure Connection: 3/16" OD fitting for 1/4" ID tubing.
Housing: Fire retardant glass filled polyester.
Weight: 3 oz (85 g).
Agency Approval: CE.
