651A-10 | Temperature transmitter | Pt100 RTD input | range 32 to 212°F (0 to 100°C). | Dwyer Instruments

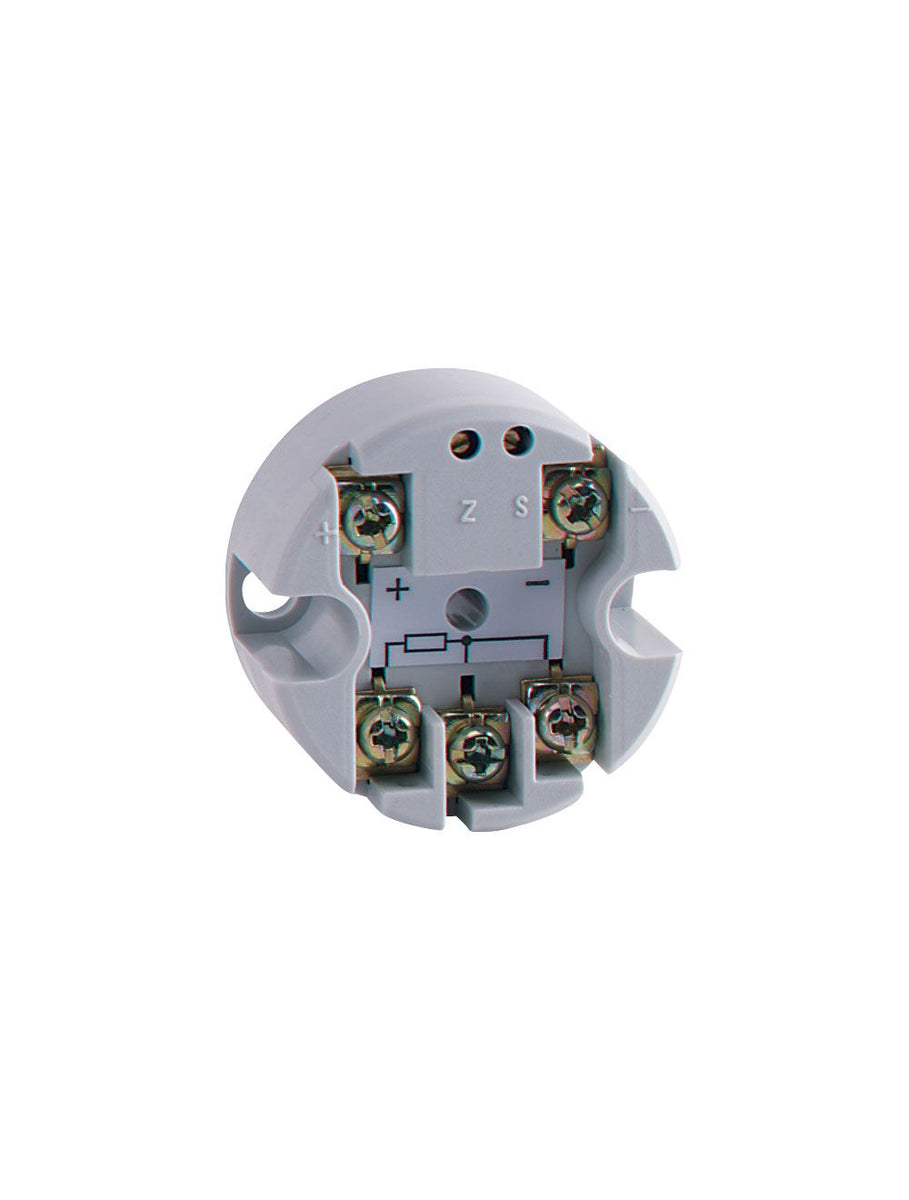

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 651A-10

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 651A-10 Documents

651 Series 651 Catalog Page More Info

Overview

Details for 651A-10

Accurately Measure Temperature in Demanding Applications: 651A-10 RTD Temperature Transmitter by Dwyer InstrumentsThe Dwyer Instruments 651A-10 is a 32/212F RTD Temp Transmitter designed to provide precise temperature measurement in demanding industrial applications. Key Features:- Accepts 100-ohm Platinum RTD input- 4 to 20 mA output signal- Accuracy of Â±0.1% of full scale- Dual-display shows process temperature and output signal- NEMA 4X/IP67 enclosure for protection in harsh environments- Compact design for easy installation and space-savingBenefits:- Accurate and reliable temperature measurement- Easy-to-read display for monitoring process conditions- Durable construction for longevity and minimal downtime- Versatile connectivity options for integration into various systems- Space-efficient design allows for installation in tight spaces Applications:The 651A-10 RTD Temp Transmitter is ideal for temperature measurement in various industrial settings, including:- HVAC systems- Process monitoring- Manufacturing- Power plants- Laboratories our HVAC supply store is your trusted source for Dwyer Instruments products and other industrial supplies. Contact us today to learn more about the 651A-10 RTD Temp Transmitter or to place an order. We offer competitive prices, fast shipping, and exceptional customer service. Choose our HVAC supply store for all your industrial supply needs.

Series 651 Temperature Transmitter

RTD or Thermocouple Input, Zero and Span Adjust, Linearized 4 to 20 mA Signal

The Series 651 Temperature Transmitter is designed for use with 2 or 3 wire Pt100RTDs or ungrounded Type K thermocouples. Thermocouple models 651TC are coldjunction compensated, automatic 32 to 160°F (0 to 70°C) with upscale burnout.

Product Applications

Process applications where a 4 to 20 mA signal is required

Various preset ranges available
Pt100 or K type thermocouple models
Standard temperature sensor head enclosure mounting

Specifications

Series: 651 Temperature Transmitter
Category/Type: Temperature
Type: Transmitters
Series: 651 Temperature Transmitter
Input: 2 or 3-wire Pt100 RTD (models 651A); or ungrounded Type K thermocouple (models 651TC).
Output: 4 to 20 mA DC; linearized.
Transmitter Type: 2-wire.
Output Impedance: 700 Ω @ 24 VDC.
Power Requirements: 10 to 32 VDC; reverse connection protected.
Accuracy: ±0.2°C plus 0.2% reading (models 651A); ±0.1% FS plus cold junction errors (models 651TC).
Temperature Drift: ZERO drift typical 0.02%/°C (0.09°F); SPAN typical 0.005%/°C 0.0036°F).
Temperature Limits: Ambient: 32 to 122°F (0 to 50°C).
Maximum Storage Temperature: 160°F (70°C).
Response Time: 10 to 90% in 200 ms (models 651A); 70% in 2 ms (models 651TC).
Agency Approvals: CE.
