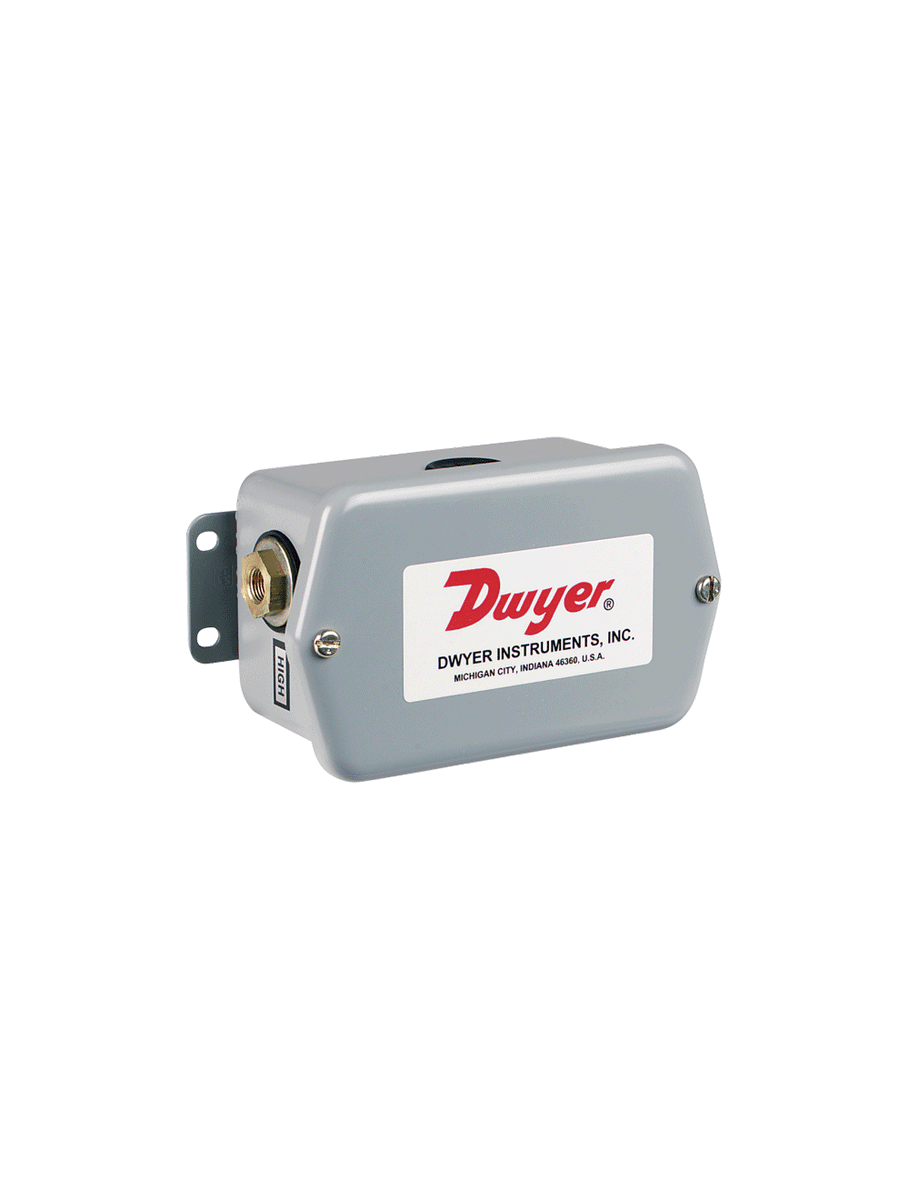

647-8 | Wet/wet differential pressure transmitter | range 0-30 psid. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 647-8

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 647-8 Documents

Instruction Manual Series 647 Catalog Page More Info

Overview

Details for 647-8

647-8 Nitrogen Cycling Oxygen Control by Dwyer InstrumentsThe 647-8 Nitrogen Cycling Oxygen Control by Dwyer Instruments is a highly sensitive and accurate device designed to monitor and regulate oxygen levels in various applications. It utilizes a unique nitrogen cycling method to provide precise control of oxygen concentrations. Crafted by the renowned Dwyer Instruments, the 647-8 features a rugged construction and durable components, ensuring reliable performance even in demanding industrial environments. Its compact size and ease of installation make it suitable for a wide range of applications. Key Features: Innovative Nitrogen Cycling Technology Precise Oxygen Concentration Control Rugged and Durable Construction Versatile Applications Applications: The 647-8 Nitrogen Cycling Oxygen Control is ideal for various industrial processes, including: Chemical and pharmaceutical manufacturing Environmental monitoring Food and beverage processing Medical and laboratory applications By utilizing the 647-8 Nitrogen Cycling Oxygen Control, you can enhance process efficiency, ensure product quality, and safeguard personnel safety. Our HVAC supply store offers exceptional pricing and swift shipping, making it the perfect destination for your industrial supply needs.

Series 647 Wet/Wet Differential Pressure Transmitter

±1.0% Accuracy, NEMA 4 (IP56) Enclosure, 2-Wire

Monitor differential pressure in air/liquid flow systems, HVAC automation, pneumatic systems and process control with the Series 647 Wet/Wet Differential Pressure Transmitter. Units are temperature compensated and provide a 4 to 20 mA output signal which can be interfaced with chart recorders, data loggers and computerized monitoring and control systems.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Flow
Process control
HVAC automation
Pneumatic systems

Versatile for liquid or gas supports designs requiring more precise measurements in support of application
Temperature compensated improves performance of device for accurate measurement under different operating environments
Output signal provides capability to interface with automation systems to centralize monitoring

Specifications

Series: 647 Wet/Wet Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 647 Wet/Wet Differential Pressure Transmitter
Service: Compatible gases or liquids on both pressure and reference sides.
Wetted Materials: Brass; vinyl; glass-filled polyester; silicon; and florosilicone.
Accuracy: ±1.0% FS.
Stability: ±1.5% FS output/year.
Temperature Limits: 32 to 122°F (0 to 50°C).
Pressure Limits: Ranges 1" w.c. to 5 psi; 20 psi; 15 psi range; 45 psi; 30 psi range; 60 psi.
Thermal Effects: Zero: ±0.05% FS/°F; Span: ±0.05% rdg/°F.
Power Requirements: 18 to 30 VDC.
Output Signal: 4 to 20 mA; 2-wire.
Zero and Span Adjustments: Adjustable; ±10%.
Loop Resistance: 400 Ω @ 18 VDC; 600 Ω @ 24 VDC; 1000 Ω @ 30 VDC.
Electrical Connection: Screw terminals; reverse polarity protected.
Process Connections: Two 1/8" female NPT.
Housing: Gasketed steel epoxy painted; NEMA 4 (IP56).
Weight: 14 oz (397 g).
