645-2 | Wet/wet differential pressure transmitter | range 0-5 psid. | Dwyer Instruments

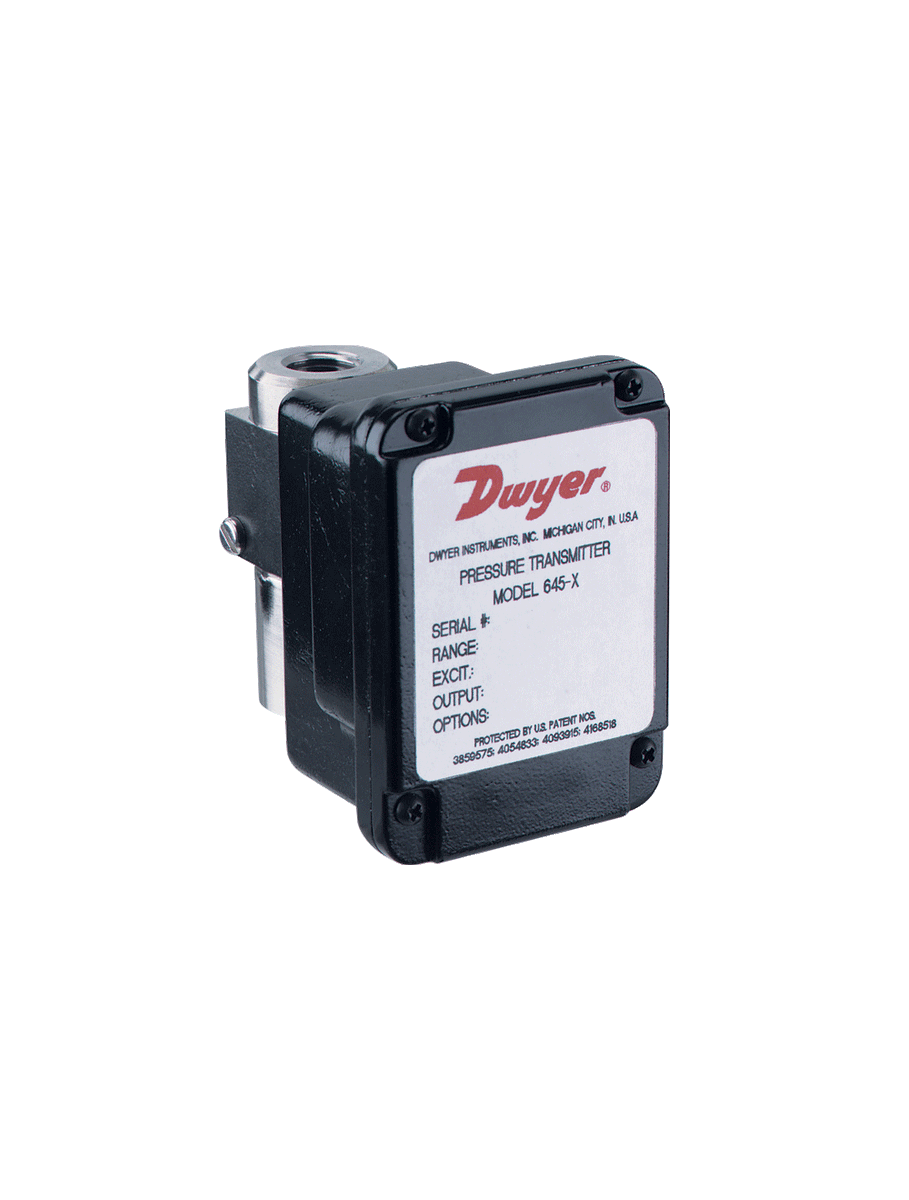

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 645-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 645-2 Documents

Instruction Manual Series 645 Catalog Page More Info

Overview

Details for 645-2

Dwyer Instruments NCO-645-2 0-5# Wet Pressure Transmitter The Dwyer Instruments NCO-645-2 is an industrial-grade pressure transmitter designed to measure wet pressure in various applications. It features a rugged construction with a corrosion-resistant stainless steel diaphragm and a brass body, ensuring durability and reliability in harsh environments. Key Features: * Pressure Range: 0-5# * Output Signal: 4-20 mA * Accuracy: Â±0.25% Full Scale * Output Type: Two-wire, loop-powered * Compact and lightweight design for easy installation * Suitable for measuring wet pressure in liquids or gases Benefits: * Precise and reliable pressure measurement * Durable and corrosion-resistant construction for extended service life * Loop-powered operation eliminates the need for an external power supply * Versatile applications, including water and gas pressure monitoring Applications: The NCO-645-2 pressure transmitter is ideal for a wide range of industrial applications, including: * Water treatment and distribution systems * Compressed air systems * Chemical and petrochemical processing * HVAC and refrigeration systems Shop our HVAC supply store today for the best prices and fast shipping on the Dwyer Instruments NCO-645-2 pressure transmitter!

Series 645 Wet/Wet Differential Pressure Transmitter

±0.25% Accuracy, Quick Response, 2-Wire Design

Series 645 Wet/Wet Differential Pressure Transmitters are designed for use with compatible gases and liquids which can be applied to both the pressure and reference ports. Quick response capacitance sensor delivers a 4 to 20 mA output signal proportional to differential pressure with ±.25% accuracy. The Series 645 transmitters are ideal for process control, filter condition monitoring, refrigeration equipment, pump speed control, HVAC equipment, and liquid level measurement. For ease of installation and maintenance, order optional 3-valve manifold assembly. Bleed ports allow for total elimination of air in the line and pressure cavities.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Process control
Filter monitoring
Refrigeration equipment
Pump speed control
HVAC equipment
Liquid level measurement

Versatile, high-accuracy device for liquid or gas supports designs requiring more precise measurements in support of application
Optional 3-way valve manifold supports simplifying installation or removal of transmitter without interrupting process

Specifications

Series: 645 Wet/Wet Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 645 Wet/Wet Differential Pressure Transmitter
Service: Compatible gases or liquidson both pressure and reference sides.
Wetted Materials: 17-4 PH stainless steel; 300 Series stainless steel;fluoroelastomer and silicone O-ringsand bleed screw seals.
Accuracy: ±0.25% FS (RSS).
Temperature Limits: Operating: 0 to175°F (-22 to 80°C); Storage: -65 to260°F (-54 to 126°C).
Pressure Limits: (High side) 1 to 5psi: 20 x FS; 10 to 25 psi: 10 x FS; 50psi: 5 x FS; 100 psi: 2.5 x FS; (lowside) 2.5 x FS.
Thermal Effects: (includes zero andspan) ±0.02% FS/°F; 30 to 150°F (-1 to65°C).
Power Requirements: 11 to 30 VDC.
Output Signal: 4 to 20 mA; 2-wire.
Zero and Span Adjustments: Adjustable; ±1 mA; non-interactive.
Response Time: 30 to 50 ms.
Loop Resistance: 0 to 1000Ω.
Electrical Connection: Barrier stripterminal block with conduit enclosureand .875" (22 mm) diameter conduitopening.
Process Connection: 1/4"-18 female NPT.
Housing: Stainless steel/aluminum;NEMA 4X (IP56).
Weight: 14.4 oz (0.4 kg).
Agency Approvals: CE.
: 3-Valve Manifold Assembly
Manifold: Brass.
Valve Type: 90° on/off.
Process Connection: 1/4"-18 female NPT.
