616WL-12-LCD | Differential pressure transmitter | range 0.25-0-0.25" w.c. | NEMA 4X housing | with LCD display. | Dwyer Instruments

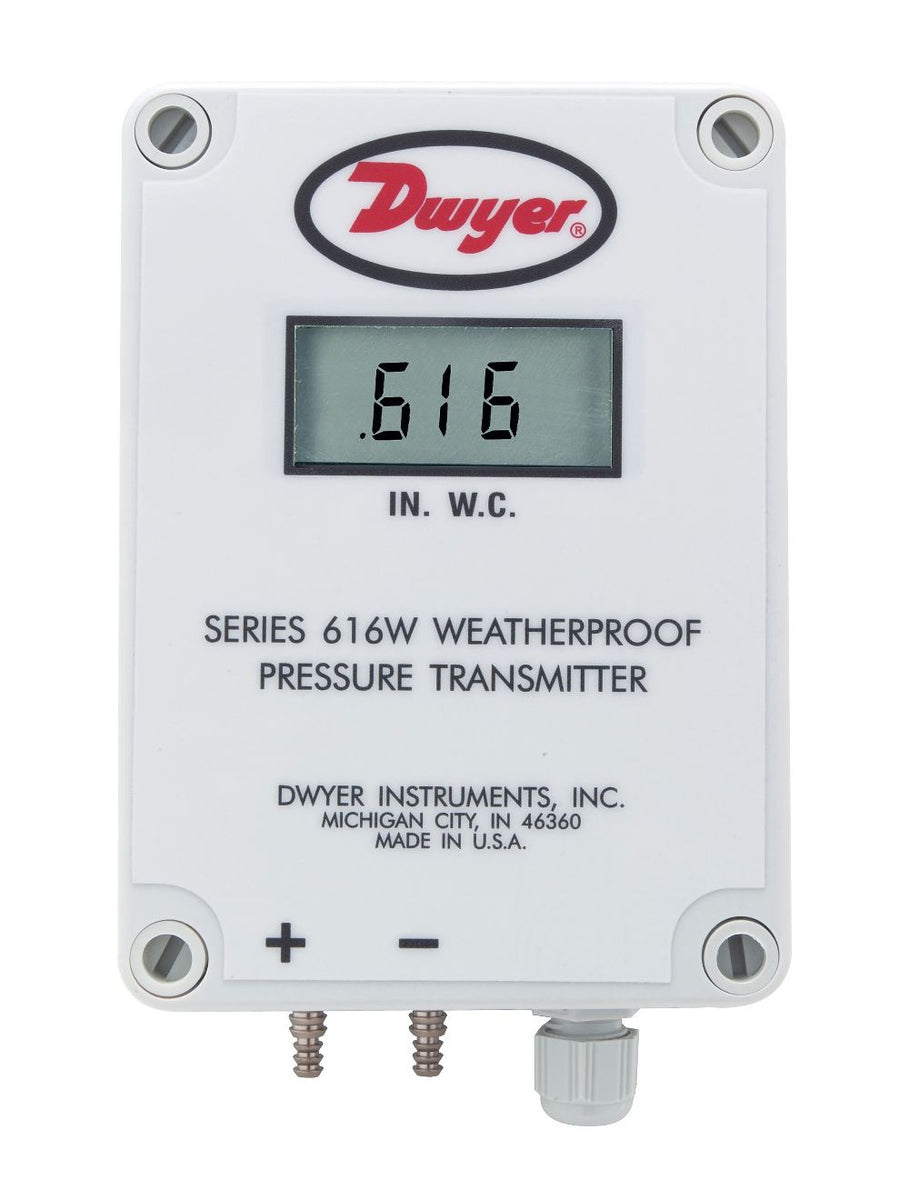

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 616WL-12-LCD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 616WL-12-LCD Documents

Instruction Manual Series 616WL Catalog Page More Info

Overview

Details for 616WL-12-LCD

Dwyer Instruments' NCO-616WL-12-LCD Differential Pressure Transmitter with LCD delivers precise pressure measurement in a compact and versatile design. Featuring a wide pressure range of 0.25-0.25"wc, it accurately measures differential pressure in various industrial and commercial applications. The large, easy-to-read LCD display provides real-time pressure readings, ensuring quick and convenient monitoring. Engineered to withstand harsh industrial environments, this transmitter is built with a robust construction and IP65 ingress protection, making it resistant to dust and water. Its 4-20 mA analog output allows for seamless integration with control systems and data loggers. Easy to install and configure, the NCO-616WL-12-LCD differential pressure transmitter empowers engineers and maintenance professionals with reliable and accurate pressure measurements essential for efficient system operation and maintenance. Shop our HVAC supply store for the NCO-616WL-12-LCD and get the best prices and fast shipping on all your industrial supply needs!

Series 616WL Differential Pressure Transmitter

Low Ranges Down to 0.25" w.c. (60 Pa), NEMA 4X Housing

The Series 616WL Differential Pressure Transmitter senses very low pressures of air and non-combustible, compatible gases and sends a standard 4-20 mA output signal. All models, including those featuring the 3 digit LCD digital read-out, are factory calibrated to specific ranges as listed in the chart below.

Positive, negative and differential pressures can be measured within a full span accuracy of ±0.50%. This weatherproof unit is enclosed in a polycarbonate case, designed to meet (IP66/NEMA 4X). Internal digital push button zero and span allow for quick and simple field calibration.

NIST CALIBRATION available in Product Configurator.

Product Applications

Low pressure applications
Outdoor HVAC
Dust collection
Roof-top equipment

NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Easy to read LCD display provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
Zero and span controls provides easy calibration checks and shorter installation time to get device running and monitoring
High precision accuracy at low pressure ranges provides exceptional accuracy for insuring tight-control and minimizing costly out of specification conditions

Specifications

Series: 616WL Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 616WL Differential Pressure Transmitter
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.50% F.S.; display accuracy ±0.5%.
Stability: ±1% F.S./yr.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Pressure Limits: See Catalog page.
Thermal Effect: ±0.02% F.S./°F (0.036% F.S./°C).
Power Requirements: 12 to 30 VDC (2-wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Digital; Push Button Adj.
Loop Resistance: DC; 0 to 900 Ω maximum.
Current Consumption: DC; 38 mA maximum.
Electrical Connections: Screw-type terminal block.
Process Connections: Barbed; dual size to fit 1/8" and 3/16" (3.12 and 4.76 mm) I.D. rubber or vinyl tubing.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Vertical; consult factory for other position orientations.
Weight: Without LCD 17 oz (482 g); with LCD 18 oz (510 g).
Agency Approvals: CE.
