616W-10B-LCD | Differential pressure transmitter | range 5-0-5" w.c. | max. pressure 10 psig. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 616W-10B-LCD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 616W-10B-LCD Documents

Instruction Manual - Old Design Instruction Manual - New Design Eff. 1.8.16 Series 616W Catalog Page 616W More Info

Overview

Details for 616W-10B-LCD

Dwyer Instruments 616W-10B-LCD Differential Pressure Transmitter with LCD Display The Dwyer Instruments 616W-10B-LCD is a differential pressure transmitter with a built-in LCD display, designed for precise and reliable pressure measurement in industrial applications. This transmitter features a rugged construction and advanced technology to provide accurate and stable readings. Key Features: * Differential pressure measurement range: 0 to 10 inches of water column (in WC) * LCD display for clear and easy readings * 4 to 20 mA output signal for compatibility with most industrial control systems * Accuracy: Â±1% of full scale * Compact and lightweight design for easy installation * Suitable for use with air, non-combustible gases, or compatible liquids Benefits: * Accurate and reliable pressure measurement * Easy-to-read LCD display for convenience * Industry-standard 4 to 20 mA output for easy integration * Versatile and suitable for various industrial applications * Durable construction for long-lasting performance Applications: The Dwyer Instruments 616W-10B-LCD differential pressure transmitter is ideal for use in a wide range of industrial applications, including: * HVAC systems * Airflow monitoring * Fluid flow measurement * Process control * Energy management Order your Dwyer Instruments 616W-10B-LCD differential pressure transmitter today from our HVAC supply store, your trusted source for industrial supplies. We offer competitive prices and fast shipping on all our products!

Series 616W Differential Pressure Transmitter

NEMA 4X Enclosure, 0.25% FS Accuracy

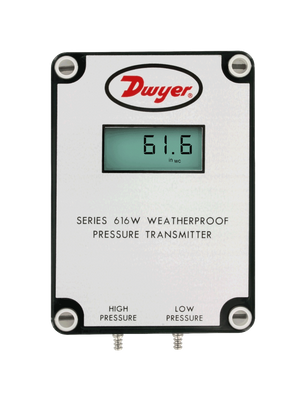

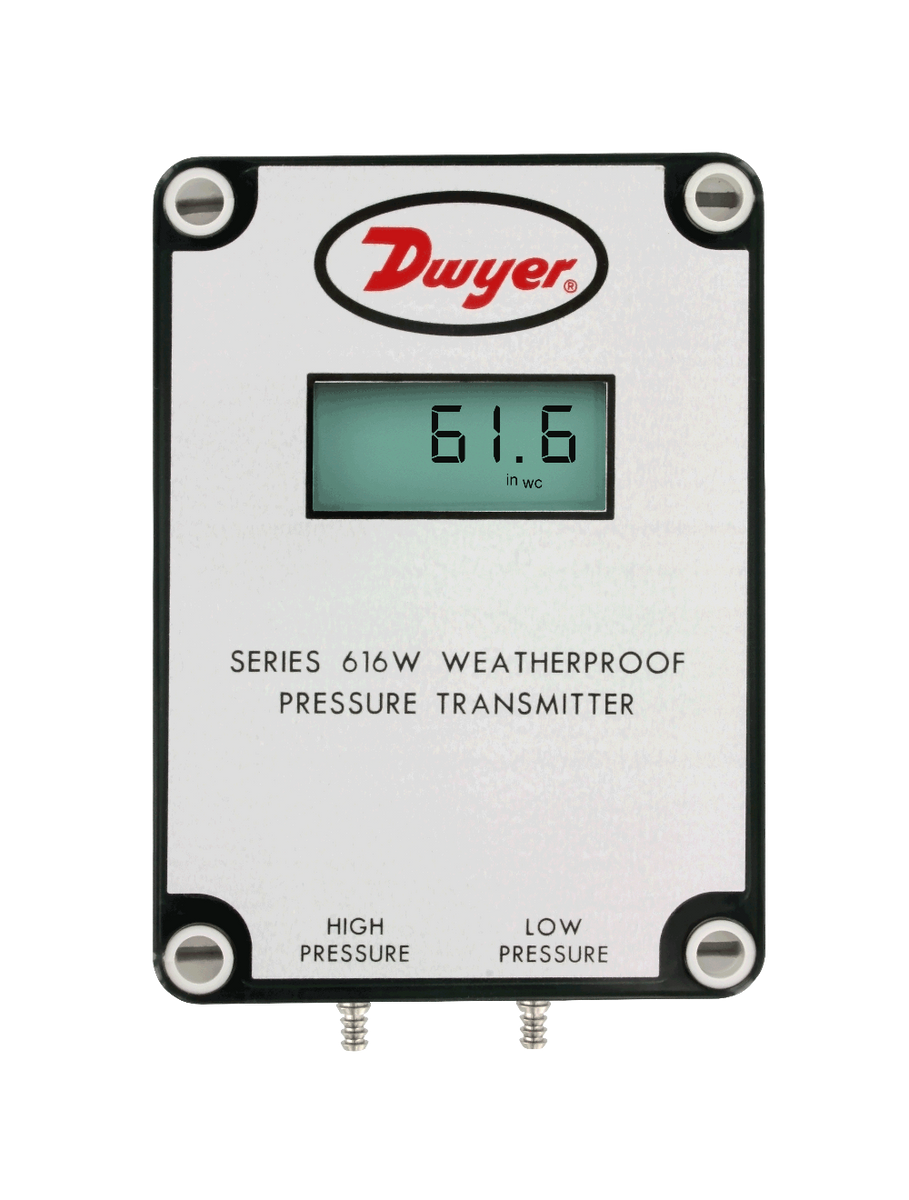

Positive, negative and differential pressures can be measured within a full span accuracy of ±0.25 with the Series 616W Differential Pressure Transmitter. Units are enclosed in a polycarbonate case, rated NEMA 4X (IP66) and operate by sensing the pressure of air and compatible gases then sending a standard 4-20 mA output signal. Design enables operation in 2-wire current loops. A wide range of models are available factory calibrated to specific ranges. The span and zero controls are for use when checking calibration. They are not intended for re-ranging to a significantly different span. The LCD display allows local indication of pressure.

NIST CALIBRATION available in Product Configurator.

Product Applications

Dust collection
Outdoor HVAC
Roof-top equipment

NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Easy to read LCD display provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
Zero and span controls provides easy calibration checks and shorter installation time to get device running and monitoring

Specifications

Series: 616W Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 616W Differential Pressure Transmitter
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.25% FS @ 77°F (25°C); display accuracy ±0.5%.
Stability: ±1% FS/yr.
Temperature Limits: 14 to 185°F (-10 to 85°C).
Pressure Limits: See Model chart on catalog page.
Power Requirements: 10 to 35 VDC (2-wire); 17 to 36 VDC; or isolated 21.6 to 33 VAC (3-wire).
Output Signal: 4 to 20 mA (2-wire); 0 to 5 VDC; or 0 to 10 VDC (3-wire).
Zero and Span Adjustments: Push buttons.
Loop Resistance: Current output: 0 to 1250 Ω max; Voltage output: Load resistance 1 kΩ (min).
Current Consumption: 40 mA (max).
Electrical Connections: 3-wire removable European style terminal block for 16 to 26 AWG.
Process Connections: Barbed; dual size to fit 1/8" and 3/16" (3.12 and 4.76 mm) ID rubber or vinyl tubing.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Any orientation.
Weight: Without LCD 8.8 oz (249 g); with LCD 9.6 oz (272 g).
Agency Approvals: CE.
