616KD-A-08 | Differential pressure transmitter | 0-40" w.c. | +/- 0.25% FS | 4-20 mA | Dwyer Instruments

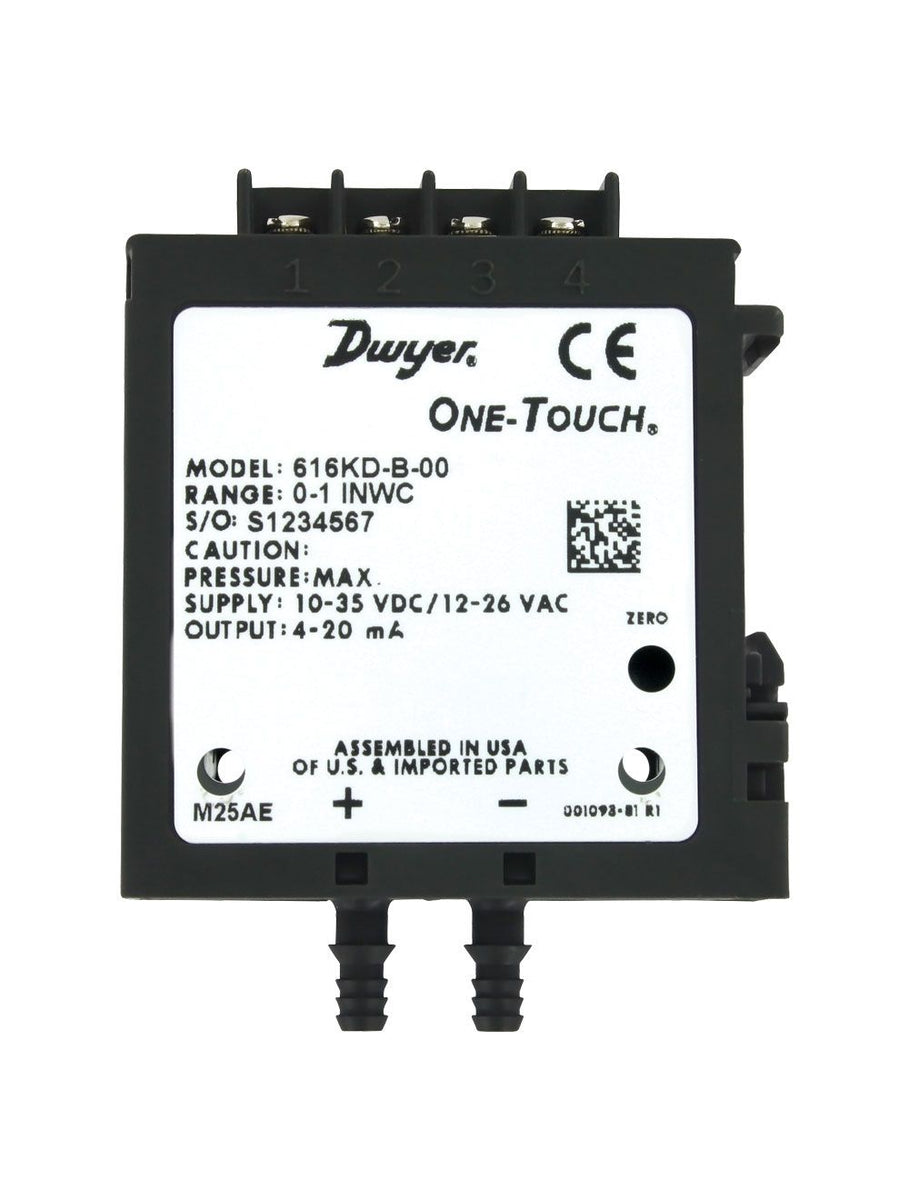

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 616KD-A-08

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 616KD-A-08 Documents

616KD (old models)616KD-A/B (new models)Series 616KD Catalog Page 616KD More Info

Overview

Details for 616KD-A-08

Accurate Differential Pressure Measurements: Dwyer 616KD-A-08 Pressure TransmitterThe Dwyer 616KD-A-08 differential pressure transmitter provides precise measurement of differential pressure in industrial settings. This transmitter is designed to meet the demands of engineers and maintenance professionals who require reliable and accurate pressure data. Versatile Operation: The 616KD-A-08 features a wide measurement range of 0-40" WC, allowing for versatility in monitoring pressure variations in various applications. The transmitter's high accuracy of Â±2% FS ensures precise and reliable readings. Rugged Construction: Housed in a durable aluminum enclosure, this transmitter withstands harsh industrial conditions. Its IP66 rating indicates protection against dust, moisture, and corrosion, making it suitable for outdoor and indoor use. Easy Installation: The transmitter comes with a wall-mount design for convenient installation. Its compact size allows for space optimization in crowded control panels or equipment rooms. Applications: The 616KD-A-08 pressure transmitter finds applications in various industries, including: - HVAC systems: Monitoring air pressure in ducts and filters - Industrial processes: Measuring differential pressure across filters and pumps - Energy management: Optimizing energy consumption by monitoring pressure in pipelines Choose our HVAC supply store for Unbeatable Deals and Swift Delivery: our HVAC supply store is your trusted source for industrial products, including the Dwyer 616KD-A-08 differential pressure transmitter. We offer competitive prices and fast shipping to keep your operations running smoothly. Contact us today to place your order!

Series 616KD Differential Pressure Transmitter

One-Touch® Digital Push-Button Calibration Technology, ±0.25, ±1, or ±2% Accuracy

The Series 616KD Differential Pressure Transmitters with One-Touch® Digital Push- Button Calibration Technology are designed for simplicity, making them the ideal choice for installers and maintenance professionals. These instruments not only alleviate cumbersome turn pots typically found in most transmitters, but eliminate entirely the need to span the instruments during calibration. With a single digital push button, both ZERO AND SPAN are calibrated properly, nothing else is required. No additional reference pressure sources or separate calibration devices are necessary.

NIST CALIBRATION available in Product Configurator.

For additional ranges, see Series 616KD-LR Differential Pressure Transmitter - Low Ranges.

Product Applications

Air handlers
Duct pressure
Variable air volume
Filter monitoring

Simple calibration push-button sets back zero and span, saving time installing and over the service life
Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
Ranges and accuracy selection cover a wide range of applications minimizing components and determining standardizing on design
Optional 1/8" NPT process connection allows for use with metal barbed fittings or compression fittings for use with metal tubing

Specifications

Series: 616KD Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 616KD Differential Pressure Transmitter
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Accuracy: 616KD-A: ±0.25% FS; 616KD-B: ±1% FS; 616KD: ±2% FS.
Stability: ±1% FS/year.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Range: 20 to 122°F (-6.67 to 50°C).
Pressure Limits: 2 psig (ranges 5" w.c. or lower); 5 psig (ranges 10 to 40" w.c.).
Thermal Effect: 616KD-A: ±0.02% FS/°F; 616KD-B: ±0.04% FS/°F; 616KD: ±0.06% FS/°F; includes zero and span.
Power Requirements: 4-20 mA output: 10 - 35 VDC (2 wire) or 12-26 VAC (4 wire); 5V output: 10 - 35 VDC (3 wire) or 12-26 VAC (4 wire); 10V output: 13 - 35 VDC (3 wire) or 12-26 VAC (4 wire) for 616KD A and B. 16 to 36 VDC (2 or 3 wire): 20 to 28 VAC (3 wire) for 616KD.
Output Signal: 4 to 20 mA or option with field selectable 0 to 10; 0 to 5; 2 to 10; 1 to 5 V.
Zero and Span Adjustments: Push button.
Loop Resistance: 4 to 20 mA output (DC): 0 to 1250 Ω max. Rmax = 50(VpsDC -10) Ω; 4 to 20 mA output (AC): 0 to 1200 Ω max. Rmax = 50(1.4 VpsAC -12) Ω; Voltage output: 5 KΩ minimum.
Current Consumption: 24 mA max for 616KD A and B. 21 mA max for 616KD.
Electrical Connections: Screw-type terminal block.
Process Connections: Barbed; dual size to fit 1/8" & 3/16" (3 mm and 5 mm) IDrubber or vinyl tubing.
Enclosure Rating: NEMA 1 (IP20).
Mounting Orientation: Vertical with pressure connections pointing down.
Weight: 1.8 oz (51 g).
Agency Approval: CE; UL Standard 2043.
