616KD-01 | Differential pressure transmitter | 0 to 2" w.c. | 4-20 mA. | Dwyer Instruments
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 616KD-01
Documents and manuals
Dwyer Instruments 616KD-01 Documents
Overview
Details for 616KD-01

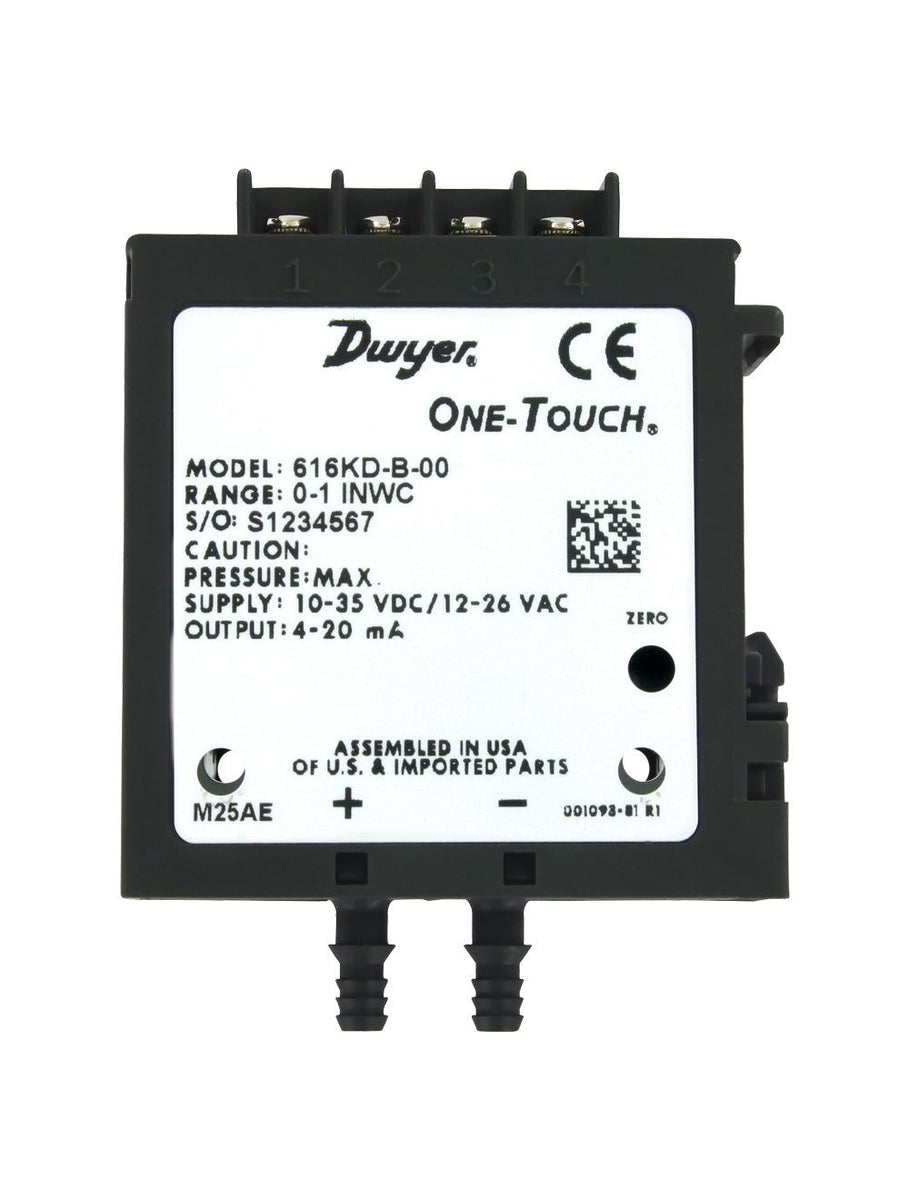

The Dwyer Instruments NCO-616KD-01 Differential Pressure Transmitter measures pressure differences from 0 to 2 inches of water column (wc). It features a 4-20 milliamp (mA) output signal for easy integration into control systems. The transmitter is constructed from durable materials to withstand harsh industrial environments and has a compact design for easy installation. Its key applications include monitoring pressure drops across filters, blowers, and fans, as well as measuring air velocity and flow rate. Shop our HVAC supply store today for the best prices and fast shipping on the NCO-616KD-01 Differential Pressure Transmitter!
Series 616KD Differential Pressure Transmitter
One-Touch® Digital Push-Button Calibration Technology, ±0.25, ±1, or ±2% Accuracy
The Series 616KD Differential Pressure Transmitters with One-Touch® Digital Push- Button Calibration Technology are designed for simplicity, making them the ideal choice for installers and maintenance professionals. These instruments not only alleviate cumbersome turn pots typically found in most transmitters, but eliminate entirely the need to span the instruments during calibration. With a single digital push button, both ZERO AND SPAN are calibrated properly, nothing else is required. No additional reference pressure sources or separate calibration devices are necessary.
NIST CALIBRATION available in Product Configurator.
For additional ranges, see Series 616KD-LR Differential Pressure Transmitter - Low Ranges.Product Applications
- Air handlers
- Duct pressure
- Variable air volume
- Filter monitoring
- Simple calibration push-button sets back zero and span, saving time installing and over the service life
- Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
- Ranges and accuracy selection cover a wide range of applications minimizing components and determining standardizing on design
- Optional 1/8" NPT process connection allows for use with metal barbed fittings or compression fittings for use with metal tubing
Specifications
- Series
- 616KD Differential Pressure Transmitter
- Category/Type
- Pressure
- Type
- Differential Pressure
- Series
- 616KD Differential Pressure Transmitter
- Service
- Air and non-combustible; compatible gases.
- Wetted Materials
- Consult factory.
- Accuracy
- 616KD-A: ±0.25% FS; 616KD-B: ±1% FS; 616KD: ±2% FS.
- Stability
- ±1% FS/year.
- Temperature Limits
- 0 to 140°F (-17.8 to 60°C).
- Compensated Temperature Range
- 20 to 122°F (-6.67 to 50°C).
- Pressure Limits
- 2 psig (ranges 5" w.c. or lower); 5 psig (ranges 10 to 40" w.c.).
- Thermal Effect
- 616KD-A: ±0.02% FS/°F; 616KD-B: ±0.04% FS/°F; 616KD: ±0.06% FS/°F; includes zero and span.
- Power Requirements
- 4-20 mA output: 10 - 35 VDC (2 wire) or 12-26 VAC (4 wire); 5V output: 10 - 35 VDC (3 wire) or 12-26 VAC (4 wire); 10V output: 13 - 35 VDC (3 wire) or 12-26 VAC (4 wire) for 616KD A and B. 16 to 36 VDC (2 or 3 wire): 20 to 28 VAC (3 wire) for 616KD.
- Output Signal
- 4 to 20 mA or option with field selectable 0 to 10; 0 to 5; 2 to 10; 1 to 5 V.
- Zero and Span Adjustments
- Push button.
- Loop Resistance
- 4 to 20 mA output (DC): 0 to 1250 Ω max. Rmax = 50(VpsDC -10) Ω; 4 to 20 mA output (AC): 0 to 1200 Ω max. Rmax = 50(1.4 VpsAC -12) Ω; Voltage output: 5 KΩ minimum.
- Current Consumption
- 24 mA max for 616KD A and B. 21 mA max for 616KD.
- Electrical Connections
- Screw-type terminal block.
- Process Connections
- Barbed; dual size to fit 1/8" & 3/16" (3 mm and 5 mm) IDrubber or vinyl tubing.
- Enclosure Rating
- NEMA 1 (IP20).
- Mounting Orientation
- Vertical with pressure connections pointing down.
- Weight
- 1.8 oz (51 g).
- Agency Approval
- CE; UL Standard 2043.
