Dwyer Instruments 616D-8: DIN Rail Differential Pressure Transmitter The Dwyer Instruments 616D-8 is a compact and reliable differential pressure transmitter designed for industrial applications. Featuring a 0/10# DIN rail mount design, this transmitter is ideal for monitoring pressure differences in various systems. With its precise and accurate readings, the 616D-8 ensures optimal performance and control. Key Features: * DIN rail mount for easy installation * 0/10# differential pressure range * 4-20mA output signal * Compact design for space-saving installation Benefits: * Accurate and reliable pressure monitoring * Easy integration into industrial systems * Durable construction for long-lasting performance * Suitable for a wide range of applications Applications: * HVAC systems * Industrial processes * Fluid dynamics * Aerospace testing * Environmental monitoring Our HVAC supply store: Your Trusted Source for Industrial Equipment Our HVAC supply store offers the best prices and fast shipping on the Dwyer Instruments 616D-8 and other industrial equipment. With our extensive inventory and knowledgeable staff, we're here to help you find the right products for your specific needs. Contact us today to learn more and place your order!

Series 616D Differential Pressure Transmitter

Mounts on 35 mm DIN Rail, ±0.25% Full Scale Accuracy

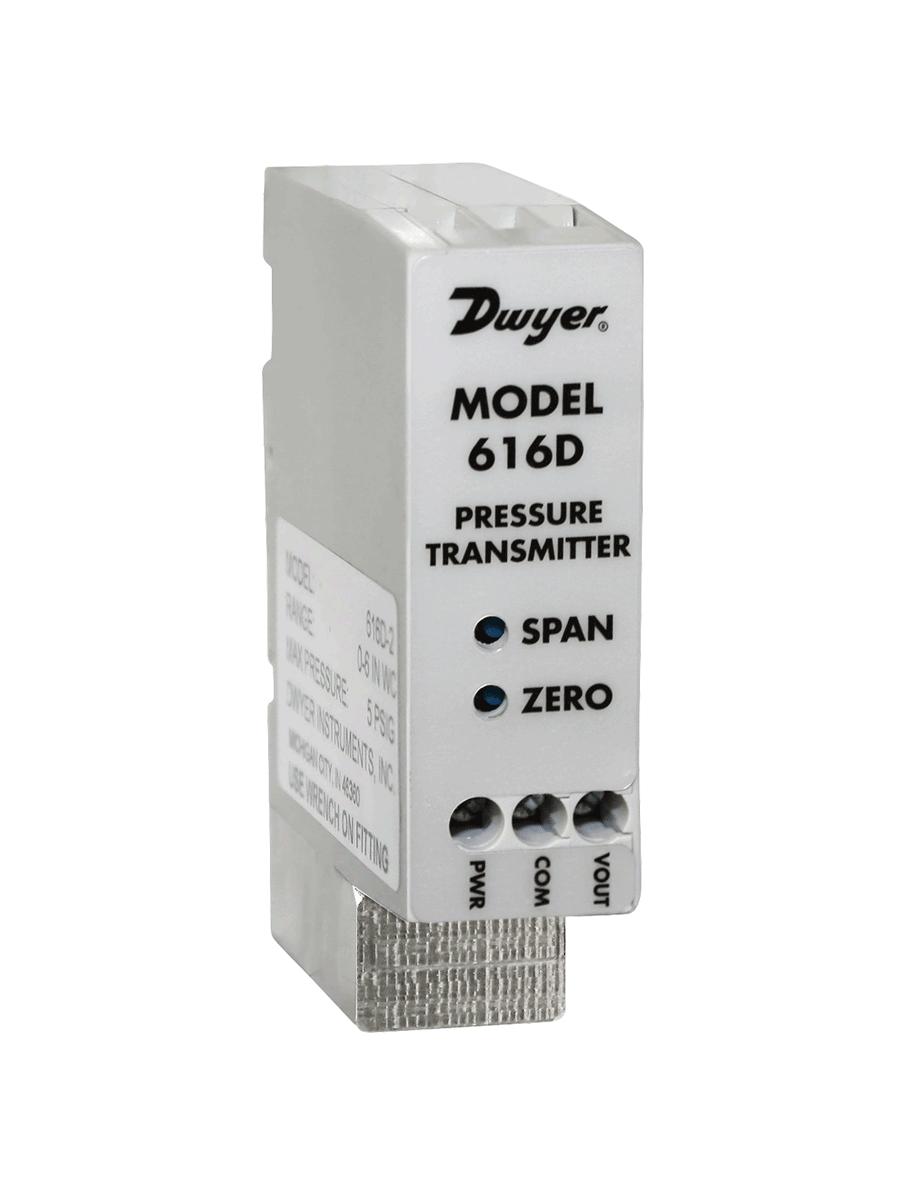

The Series 616D Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4 to 20 mA or 0 to 10 VDC output signal. The 616D enclosure is specifically designed to mount on a 35 mm DIN rail in a panel. This mounting style allows for several units to be mounted closely together reducing required space. The span and zero controls are for use when checking calibration. They are not intended for re-ranging. Versatile circuit design enables operation in 2-wire current loops.

NIST CALIBRATION available in Product Configurator.

Product Applications

Air handlers
Duct pressure
Variable air volume
Filter monitoring

Simple calibration push-buttons to set zero and span
Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key

Specifications

Series: 616D Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 616D Differential Pressure Transmitter
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.25 FS @ 77°F (25°C).
Thermal Effect: ±0.02% FS/°F (0.036% FS/°C).
Stability: ±1% FS/yr.
Temperature Limits: 14 to 185°F (-10 to 85°C).
Pressure Limits: See chart on catalog page.
Power Requirements: 10 to 35 VDC(2-wire); 17 to 36 VDC; or isolated 21.6to 33 VAC (3-wire).
Output Signal: 4 to 20 mA (2-wire); 0 to10 VDC (3-wire).
Zero and Span Adjustments: Push buttons.
Loop Resistance: Current output: 0to 1250 Ω max; Voltage output: Loadresistance 1 kΩ min.
Current Consumption: 40 mA max.
Electrical Connections: Screw-type terminal block.
Process Connections: 1/8" female NPT. Accessories included are 2 barbed fittings for 1/8" (3.12 mm) and 3/16" (4.77 mm) ID rubber or vinyl tubing.
Mounting Orientation: Vertical; on a 1.378" (35 mm) DIN rail.
Weight: 4.8 oz (136 g).
Agency Approvals: CE.
