610-01B-BDV | Low differential pressure transmitter | range ±1" w.c. | Dwyer Instruments

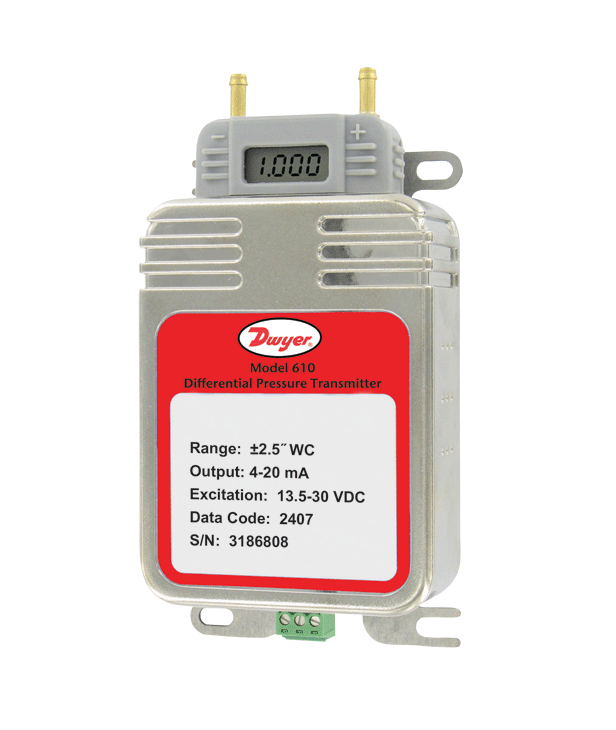

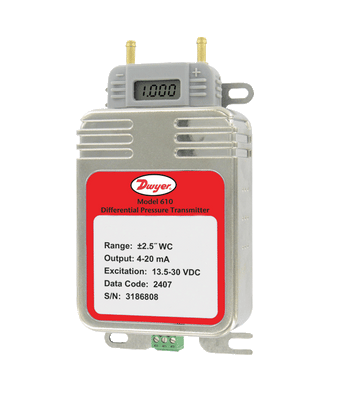

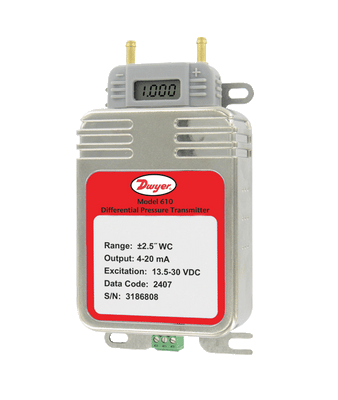

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 610-01B-BDV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 610-01B-BDV Documents

Instruction Manual Series 610 Catalog Page More Info

Overview

Details for 610-01B-BDV

The Dwyer Instruments NCO-610-01B-BDV differential pressure transmitter offers precise pressure measurement in a compact and economical package. Engineered with an accuracy of Â±1% of span, this transmitter delivers reliable readings even in challenging industrial environments. Its 4-20 mA output signal provides compatibility with most control systems, enabling easy integration for remote monitoring and control applications. Suitable for measuring differential pressures ranging from 0 to 10 inches of water column (WC), the NCO-610-01B-BDV is ideal for monitoring air pressure, flow, and level in ducts, cleanrooms, and other industrial settings. The rugged construction and NEMA 4 enclosure ensure durability and protection against harsh conditions. Our HVAC supply store offers this high-quality differential pressure transmitter at unbeatable prices, backed by our fast shipping services. Order now to enhance your industrial operations with accurate and reliable pressure measurement.

Series 610 Low Differential Pressure Transmitter

Ideal for Clean Rooms, Easy to Field Calibrate with Security Key

The Series 610 Low Differential Pressure Transmitters are capable of measuring the pressures and flow of air or non-conducting gases at high resolutions. Designed specifically for clean rooms, isolation rooms, and other critical environments, the Series 610 is ideal for situations when accurate and reliable pressure monitoring is essential. Easy access pressure ports and electrical connections, removable process heads, and detachable terminal blocks make for fast and easy installation. The Series 610 transmitters are available for air pressure ranges as low as 0.1 in w.c. full-scale. The Series 610 transmitters can be ordered as either ±0.25% or ±0.5% FS accuracy, base mount or din rail mount and the option of a digital read out display. In addition, a calibration key can be ordered that allows the user to set zero and span. One key will work on multiple transmitters.

Calibration Option available under Accessories.

Ranges down to 0.1" w.c. with 0.25% or 0.5% F.S. accuracy
Removable process head for simplified installation
Secure operation ensured with calibration only possible via separate calibration key
Calibration certificate included with ± 0.25% accuracy models

Specifications

Series: 610 Low Differential Pressure Transmitter
freeship
Category/Type: Pressure
Type: Differential Pressure
Series: 610 Low Differential Pressure Transmitter
Service: Air or similar non-conducting gases.
Accuracy: ±0.25% or ±0.5% F.S.
Stability: ±0.5%/yr.
Temperature Limits: -20 to 160°F (-29 to 71°C).
Pressure Limits: 2 psi (0.137 bar).
Thermal Effect: 0.5% FS.
Power Requirements: 13.5 to 30 VDC.
Output: 4 to 20 mA.
Loop Resistance: 800 ohms max.
Current Consumption: 25 mA.
Zero and Span Adjustments: External security key pendant.
Response Time: 0.02 to 0.04 seconds.
Electrical Connections: Detachable screw terminal connector.
Process Connections: 3/16" O.D. barbed brass fittings on removable process head.
Enclosure Rating: Fire retardant ABS.
Mounting Orientation: Vertical.
Weight: 9 oz (255 g).
Agency Approvals: CE.
