607-4B | Differential pressure transmitter | range 2.0-0-2.0" w.c. | Dwyer Instruments

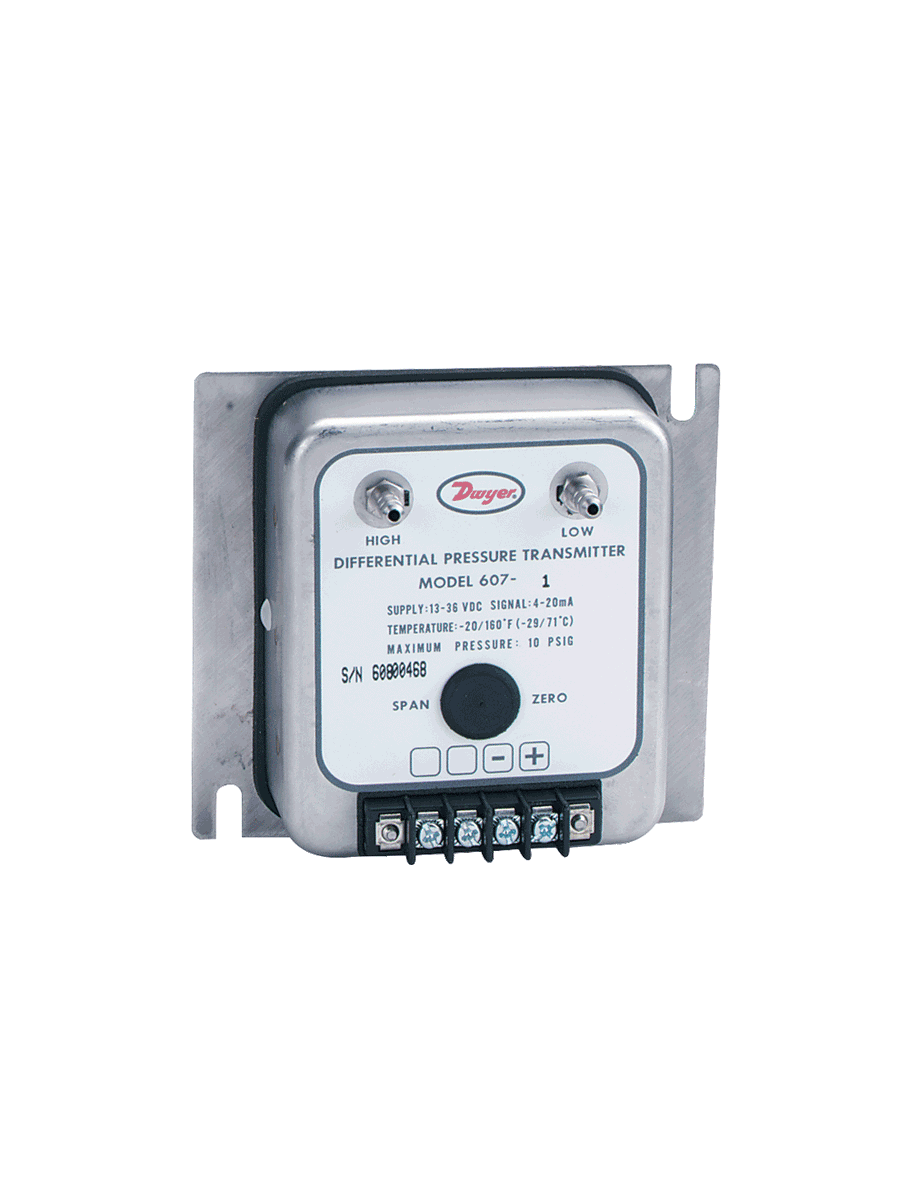

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 607-4B

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 607-4B Documents

Instruction Manual Series 607 Catalog Page More Info

Overview

Details for 607-4B

The Dwyer Instruments NCO-607-4B is a 2-0-2" DIFF # TRANSMITTER, designed for accurate and reliable pressure measurement in industrial applications. This transmitter features a rugged construction with a NEMA 4 enclosure, ensuring protection against dust, water, and other harsh conditions. The differential pressure range of 0-2" W.C. makes it suitable for a wide range of applications, such as measuring pressure drop across filters, monitoring air flow, or controlling pressure in ducts and pipes. With its 4-20mA output signal, the NCO-607-4B can easily integrate with control systems and data acquisition devices. The transmitter's compact size and lightweight design allow for flexible installation in tight spaces. Key Features: * Differential pressure range: 0-2" W.C. * NEMA 4 enclosure for protection against harsh environments * 4-20mA output signal for easy integration with control systems * Compact size and lightweight design for flexible installation Benefits: * Accurate and reliable pressure measurement * Suitable for a wide range of industrial applications * Durable construction for long-lasting performance * Easy integration with control systems and data acquisition devices Shop our HVAC supply store for the NCO-607-4B from Dwyer Instruments. We offer the best prices and fast shipping for your industrial supply needs!

Series 607 Differential Pressure Transmitter

±0.25% or ±0.5% FS Accuracy, Ranges from 0 to 25" w.c.

Series 607 Differential Pressure Transmitter combines very low ranges with exceptional stability, reliability and either ±0.25% or ±0.5% accuracy for the most demanding applications. Ranges from 0-0.1" to 0-25" w.c. Ultra thin glass clad silicon diaphragm design resists shock and vibration, practically eliminates drift. Certification to NIST standards is included with each unit. Tough stainless steel housing is NEMA 2 rated to protect against moisture and dirt. Use with air and other compatible gases.

Product Applications

Leak Detection
Clean Room Control
Lab and Fume Hood Pressure Control

High stability at low pressure ranges provides exceptional accuracy for ensuring tight-control and minimizing costly out of specification conditions
Provides sensitivity to pressure changes but resists vibration preventing drift and less accurate readings
Stainless steel housing meets standards for lab and clean room applications

Specifications

Series: 607 Differential Pressure Transmitter
freeship
Category/Type: Pressure
Type: Differential Pressure
Series: 607 Differential Pressure Transmitter
Service: Air and non-conductive; non-corrosive gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% or ±0.25% FS.
Stability: ±0.5% FS/yr.
Temperature Limits: -20 to 160°F (-29 to 71°C); 10 to 95% RH.
Pressure Limits: 10 psig (0.69 bar).
Compensated Temperature Range: 35 to 135°F (2 to 57°C).
Thermal Effects: ±0.015% F.S./°F (zero and span).
Power Requirements: 12 to 36 VDC.
Output Signal: 4 to 20 mA DC; 2-wire.
Zero and Span Adjustments: Externally accessible potentiometers; non-interactive; ±10% F.S. adjustment.
Response Time: 250 ms max.
Loop Resistance: 0 to 1045 ohms Vmin=12V+[(.22A)(RL)].
Current Consumption: 3.6 mA (min).
Electrical Connections: Screw terminals.
Process Connections: Barbed stainless steel for 3/16" I.D. tubing.
Housing: 300 Series stainless steel (NEMA 2).
Weight: 1.04 lb (472 g).
Agency Approvals: CE.
