607-4 | Differential pressure transmitter | range 0-2.0" w.c. | Dwyer Instruments

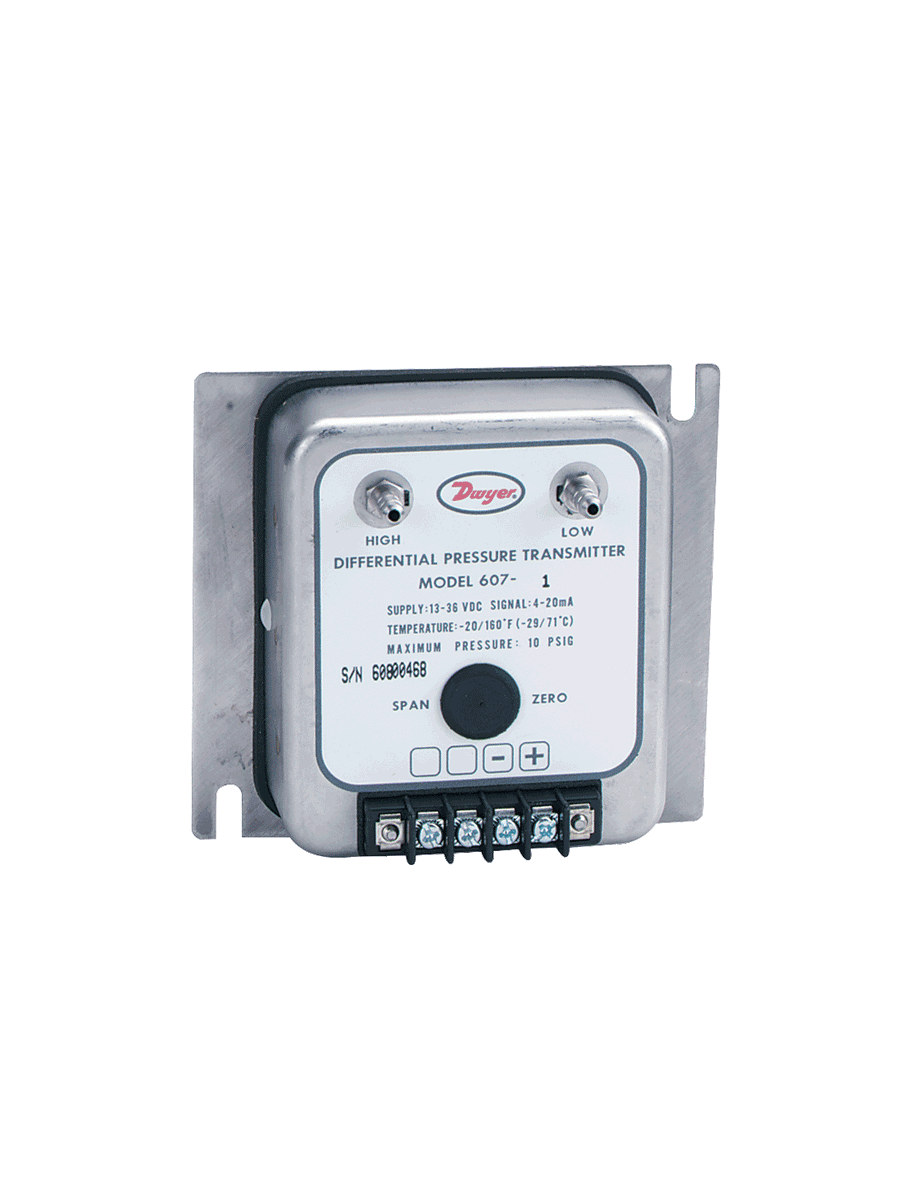

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 607-4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 607-4 Documents

Instruction Manual Series 607 Catalog Page More Info

Overview

Details for 607-4

0-2" Differential Pressure Transmitter (Model NCO-607-4) by Dwyer Instruments Dwyer Instruments' NCO-607-4 differential pressure transmitter provides precise measurement and transmission of pressure differences in industrial applications. With a range of 0-2" w.c., this transmitter accurately detects and transmits pressure variations, making it suitable for various monitoring and control systems. The NCO-607-4 features a rugged stainless steel body, ensuring durability and resistance to harsh industrial environments. Its compact design allows for easy installation in space-limited areas. Additionally, the transmitter's electrical connections are securely protected within a NEMA 4 enclosure, providing reliable operation in challenging conditions. Benefiting from solid-state sensor technology, the NCO-607-4 provides stable and reliable pressure readings. Its 4-20 mA analog output signal enables direct integration with control systems, allowing for precise monitoring and control of pressure parameters. With its high accuracy, durability, and ease of use, the NCO-607-4 differential pressure transmitter by Dwyer Instruments is an ideal solution for a wide range of industrial applications, including: HVAC systems Airflow measurement and control Filtration monitoring Process control systems And many more Choose our HVAC supply store for the best prices and fast shipping on all your industrial needs. Contact us today to learn more about the NCO-607-4 differential pressure transmitter and other Dwyer Instruments products!

Series 607 Differential Pressure Transmitter

±0.25% or ±0.5% FS Accuracy, Ranges from 0 to 25" w.c.

Series 607 Differential Pressure Transmitter combines very low ranges with exceptional stability, reliability and either ±0.25% or ±0.5% accuracy for the most demanding applications. Ranges from 0-0.1" to 0-25" w.c. Ultra thin glass clad silicon diaphragm design resists shock and vibration, practically eliminates drift. Certification to NIST standards is included with each unit. Tough stainless steel housing is NEMA 2 rated to protect against moisture and dirt. Use with air and other compatible gases.

Product Applications

Leak Detection
Clean Room Control
Lab and Fume Hood Pressure Control

High stability at low pressure ranges provides exceptional accuracy for ensuring tight-control and minimizing costly out of specification conditions
Provides sensitivity to pressure changes but resists vibration preventing drift and less accurate readings
Stainless steel housing meets standards for lab and clean room applications

Specifications

Series: 607 Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 607 Differential Pressure Transmitter
Service: Air and non-conductive; non-corrosive gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% or ±0.25% FS.
Stability: ±0.5% FS/yr.
Temperature Limits: -20 to 160°F (-29 to 71°C); 10 to 95% RH.
Pressure Limits: 10 psig (0.69 bar).
Compensated Temperature Range: 35 to 135°F (2 to 57°C).
Thermal Effects: ±0.015% F.S./°F (zero and span).
Power Requirements: 12 to 36 VDC.
Output Signal: 4 to 20 mA DC; 2-wire.
Zero and Span Adjustments: Externally accessible potentiometers; non-interactive; ±10% F.S. adjustment.
Response Time: 250 ms max.
Loop Resistance: 0 to 1045 ohms Vmin=12V+[(.22A)(RL)].
Current Consumption: 3.6 mA (min).
Electrical Connections: Screw terminals.
Process Connections: Barbed stainless steel for 3/16" I.D. tubing.
Housing: 300 Series stainless steel (NEMA 2).
Weight: 1.04 lb (472 g).
Agency Approvals: CE.
