607-3 | Differential pressure transmitter | range 0-1.0" w.c. | Dwyer Instruments

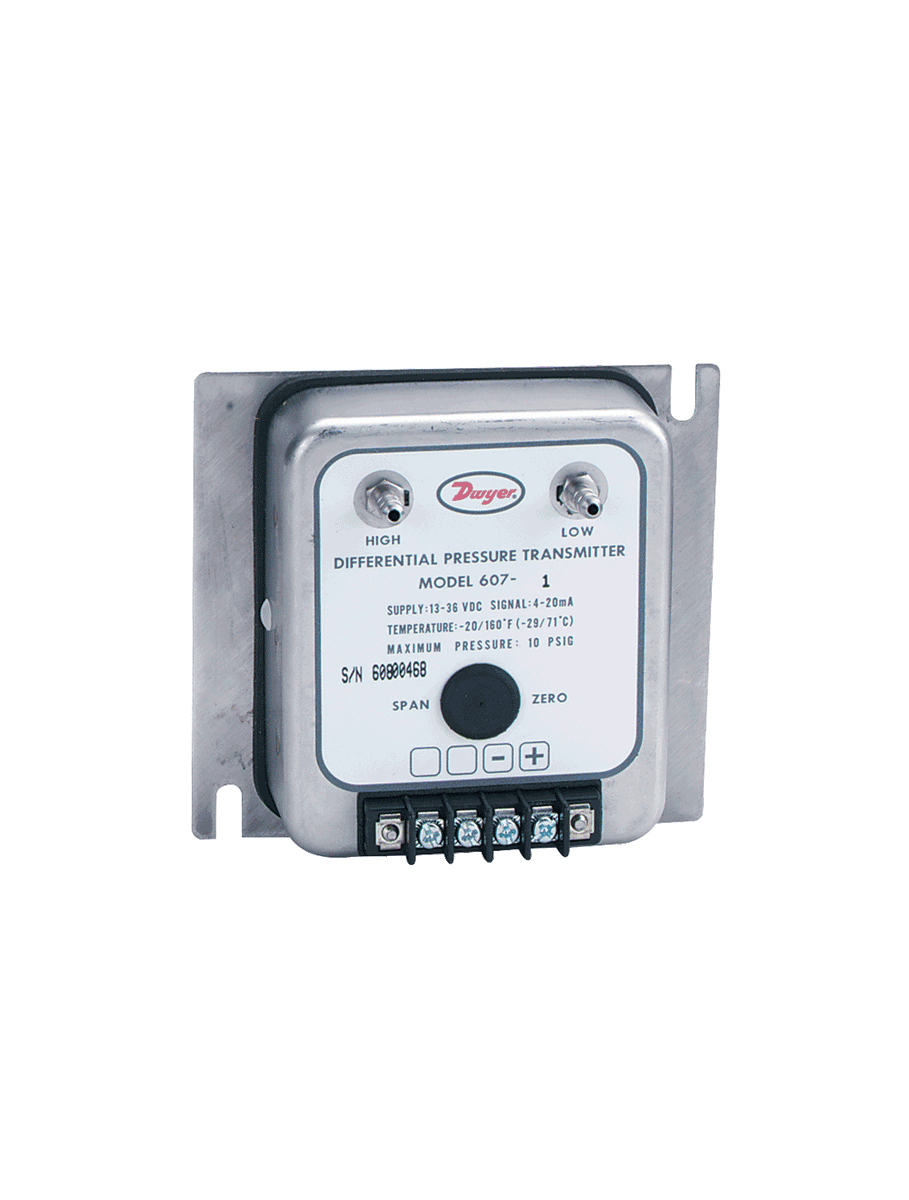

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 607-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 607-3 Documents

Instruction Manual Series 607 Catalog Page More Info

Overview

Details for 607-3

0/1" Diff # TransmitterDwyer Instruments' 607-3 0/1" Diff # Transmitter is an accurate and reliable instrument for measuring differential pressure in HVAC systems. It features a rugged construction with a cast aluminum housing and a stainless steel diaphragm, making it ideal for use in harsh environments. The 607-3's compact size and low weight make it easy to install, even in tight spaces. The 607-3 has a wide range of applications, including: Measuring pressure drop across filters Monitoring fan performance Verifying ductwork integrity Calibrating other pressure instruments The 607-3 is backed by Dwyer Instruments' reputation for quality and reliability. It comes with a 1-year warranty and is available for immediate shipment from our HVAC supply store. Order your 607-3 today!

Series 607 Differential Pressure Transmitter

±0.25% or ±0.5% FS Accuracy, Ranges from 0 to 25" w.c.

Series 607 Differential Pressure Transmitter combines very low ranges with exceptional stability, reliability and either ±0.25% or ±0.5% accuracy for the most demanding applications. Ranges from 0-0.1" to 0-25" w.c. Ultra thin glass clad silicon diaphragm design resists shock and vibration, practically eliminates drift. Certification to NIST standards is included with each unit. Tough stainless steel housing is NEMA 2 rated to protect against moisture and dirt. Use with air and other compatible gases.

Product Applications

Leak Detection
Clean Room Control
Lab and Fume Hood Pressure Control

High stability at low pressure ranges provides exceptional accuracy for ensuring tight-control and minimizing costly out of specification conditions
Provides sensitivity to pressure changes but resists vibration preventing drift and less accurate readings
Stainless steel housing meets standards for lab and clean room applications

Specifications

Series: 607 Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 607 Differential Pressure Transmitter
Service: Air and non-conductive; non-corrosive gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% or ±0.25% FS.
Stability: ±0.5% FS/yr.
Temperature Limits: -20 to 160°F (-29 to 71°C); 10 to 95% RH.
Pressure Limits: 10 psig (0.69 bar).
Compensated Temperature Range: 35 to 135°F (2 to 57°C).
Thermal Effects: ±0.015% F.S./°F (zero and span).
Power Requirements: 12 to 36 VDC.
Output Signal: 4 to 20 mA DC; 2-wire.
Zero and Span Adjustments: Externally accessible potentiometers; non-interactive; ±10% F.S. adjustment.
Response Time: 250 ms max.
Loop Resistance: 0 to 1045 ohms Vmin=12V+[(.22A)(RL)].
Current Consumption: 3.6 mA (min).
Electrical Connections: Screw terminals.
Process Connections: Barbed stainless steel for 3/16" I.D. tubing.
Housing: 300 Series stainless steel (NEMA 2).
Weight: 1.04 lb (472 g).
Agency Approvals: CE.
