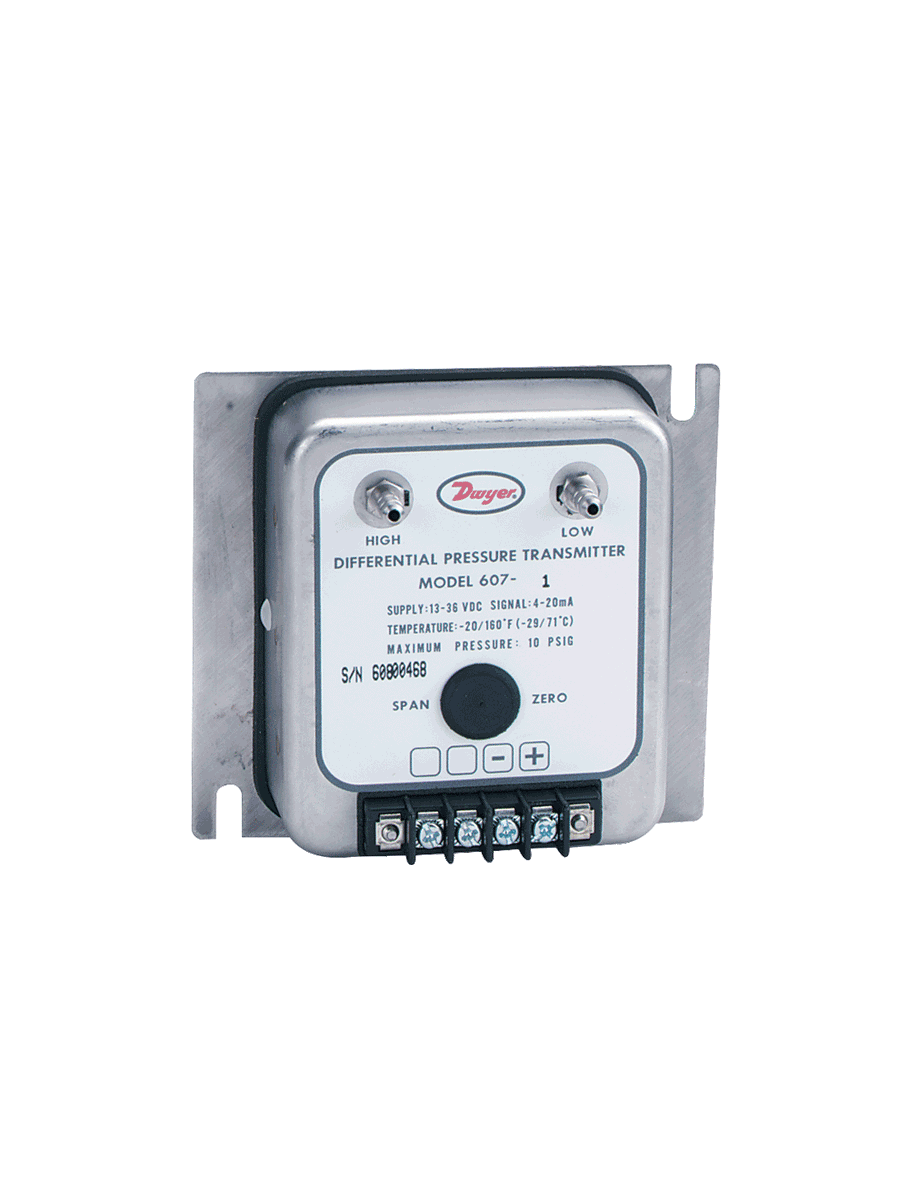

607-0 | Differential pressure transmitter | range 0-.10" w.c. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 607-0

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 607-0 Documents

Instruction Manual Series 607 Catalog Page More Info

Overview

Details for 607-0

Dwyer Instruments NCO-607-0 Differential Pressure Transmitter: Trusted Precision for Industrial ApplicationsThe Dwyer Instruments NCO-607-0 Differential Pressure Transmitter is an exceptional choice for industrial engineers and maintenance professionals seeking highly accurate and reliable pressure measurements. This robust transmitter provides precise measurement of differential pressure within a range of 0-10" w.c. With its advanced design and durable construction, the NCO-607-0 ensures consistent performance even in harsh industrial environments. Key Features:-- High Accuracy: Delivers accurate and reliable pressure readings with a full-scale accuracy of Â±0.25%.-- Adjustable Zero and Span: Allows for on-site calibration and customization to meet specific application requirements.-- Analog Output: Provides a 4-20 mA output signal, compatible with most data acquisition systems and PLCs.-- Rugged Construction: Built to withstand demanding conditions, with a rugged housing and stainless steel sensor for enhanced durability.-- Compact Design: Its compact size enables installation in space-constrained areas.-- Applications: Ideal for measuring differential pressure in various industrial applications, including HVAC, process control, and environmental monitoring. By choosing the Dwyer Instruments NCO-607-0 Differential Pressure Transmitter, you invest in a high-quality and reliable solution for your pressure measurement needs. Trust our HVAC supply store for the best prices and fast shipping on all your industrial supply requirements!

Series 607 Differential Pressure Transmitter

±0.25% or ±0.5% FS Accuracy, Ranges from 0 to 25" w.c.

Series 607 Differential Pressure Transmitter combines very low ranges with exceptional stability, reliability and either ±0.25% or ±0.5% accuracy for the most demanding applications. Ranges from 0-0.1" to 0-25" w.c. Ultra thin glass clad silicon diaphragm design resists shock and vibration, practically eliminates drift. Certification to NIST standards is included with each unit. Tough stainless steel housing is NEMA 2 rated to protect against moisture and dirt. Use with air and other compatible gases.

Product Applications

Leak Detection
Clean Room Control
Lab and Fume Hood Pressure Control

High stability at low pressure ranges provides exceptional accuracy for ensuring tight-control and minimizing costly out of specification conditions
Provides sensitivity to pressure changes but resists vibration preventing drift and less accurate readings
Stainless steel housing meets standards for lab and clean room applications

Specifications

Series: 607 Differential Pressure Transmitter
freeship
Category/Type: Pressure
Type: Differential Pressure
Series: 607 Differential Pressure Transmitter
Service: Air and non-conductive; non-corrosive gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% or ±0.25% FS.
Stability: ±0.5% FS/yr.
Temperature Limits: -20 to 160°F (-29 to 71°C); 10 to 95% RH.
Pressure Limits: 10 psig (0.69 bar).
Compensated Temperature Range: 35 to 135°F (2 to 57°C).
Thermal Effects: ±0.015% F.S./°F (zero and span).
Power Requirements: 12 to 36 VDC.
Output Signal: 4 to 20 mA DC; 2-wire.
Zero and Span Adjustments: Externally accessible potentiometers; non-interactive; ±10% F.S. adjustment.
Response Time: 250 ms max.
Loop Resistance: 0 to 1045 ohms Vmin=12V+[(.22A)(RL)].
Current Consumption: 3.6 mA (min).
Electrical Connections: Screw terminals.
Process Connections: Barbed stainless steel for 3/16" I.D. tubing.
Housing: 300 Series stainless steel (NEMA 2).
Weight: 1.04 lb (472 g).
Agency Approvals: CE.
