605-6 | Differential pressure indicating transmitter | range 0-6.0" w.c. | max. pressure 2 psi (13.79 kPa) | ±0.5% electrical accuracy | ±2% mechanical accuracy. | Dwyer Instruments

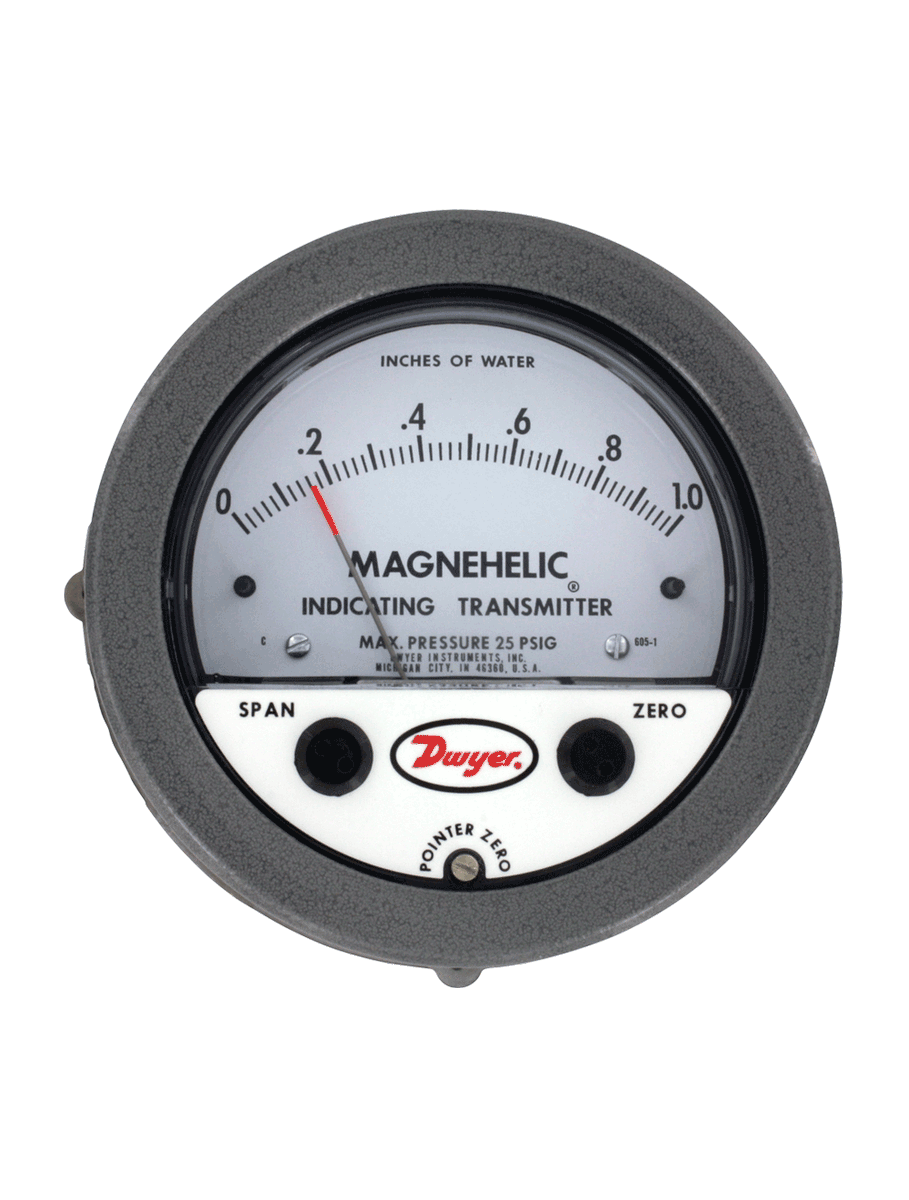

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 605-6

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 605-6 Documents

Instruction Manual Series 605 Catalog Page 605 More Info

Overview

Details for 605-6

Accurate and Reliable Pressure Measurement: Dwyer Instruments NCO-605-6 Pressure Transmitter The Dwyer Instruments NCO-605-6 is an industrial-grade pressure transmitter designed to provide accurate and reliable pressure measurements in various industrial applications. This 0-6-inch water column pressure transmitter features a rugged construction and is ideal for measuring pressure in HVAC systems, clean rooms, and other industrial environments. Key Features and Benefits: - Accurate and reliable pressure measurement - Compact and rugged design - Easy installation and maintenance - Field-adjustable zero and span - 0-6 inch water column measurement range Technical Specifications: - Brand: Dwyer Instruments - Model: NCO-605-6 - Measurement Range: 0-6" WC - Output Signal: 4-20 mA - Accuracy: Â±0.5% FS - Operating Temperature: -40Â°F to 150Â°F - Ingress Protection: IP65 Applications: The NCO-605-6 pressure transmitter is widely used in a variety of industrial applications, including: - HVAC systems - Clean rooms - Pressure monitoring - Liquid level measurement - Leak detection Choose our HVAC supply store for the Best Prices and Fast Shipping on Dwyer Instruments NCO-605-6 Pressure Transmitters and More!

Series 605 Magnehelic® Differential Pressure Indicating Transmitter

Same Size as Standard Magnehelic® Differential Pressure Gage

The Series 605 Magnehelic® Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system. The easily read dial gage is complimented by the two-wire, 4 to 20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The two-wire design with terminal strip on the rear simplifies connection in any 4 to 20 mA control loop powered by a 10 to 35 VDC supply.

NIST CALIBRATION available in Product Configurator.

Please see Series AT-605 for ATEX approved.

Product Applications

Monitor pressures in ducts, rooms, or total building pressures
Filter monitoring
Local indication of clean room pressures with process signal sent to control room

Easy to read gage permits viewing from far away
Patented design provides quick response to pressure changes means no delay in signaling and alerting to critical situations
Durable and rugged housing and high-quality components combined provides long-service life and minimized down-time
Optional stainless steel bezel is the same installation diameter as Magnehelic® gage and simplifies field upgrade to 605 indicating transmitter

Specifications

Series: 605 Magnehelic® Differential Pressure Indicating Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 605 Magnehelic® Differential Pressure Indicating Transmitter
: GAGE SPECIFICATIONS
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Accuracy: See Ordering page.
Stability: ±1% FS/yr.
Pressure Limits: See Ordering page.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Process Connections: 1/8" female NPT.
Size: 4" (101.6 mm) dial face; 5" (127 mm) OD x 2-11/16" (68.3 mm).
Weight: 1 lb; 12.6 oz (811 g).
Agency Approvals: CE.
: TRANSMITTER SPECIFICATIONS
Accuracy: See Ordering page (includes linearity; hysteresis; and repeatability).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Compensated Temperature Range: 32 to 120°F (0 to 48.9°C).
Thermal Effect: ±0.025% FS/°F (0.045% FS/°C).
Power Requirements: 10 to 35 VDC (2-wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Protected potentiometers.
Loop Resistance: DC: 0 to 1250 Ω maximum.
Current Consumption: DC: 38 mA maximum.
Electrical Connections: Screw terminal block.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
