605-500PA | Differential pressure indicating transmitter | range 0-500 Pa | max. pressure 2 psi (13.79 kPa) | ±0.5% electrical accuracy | ±2% mechanical accuracy. | Dwyer Instruments

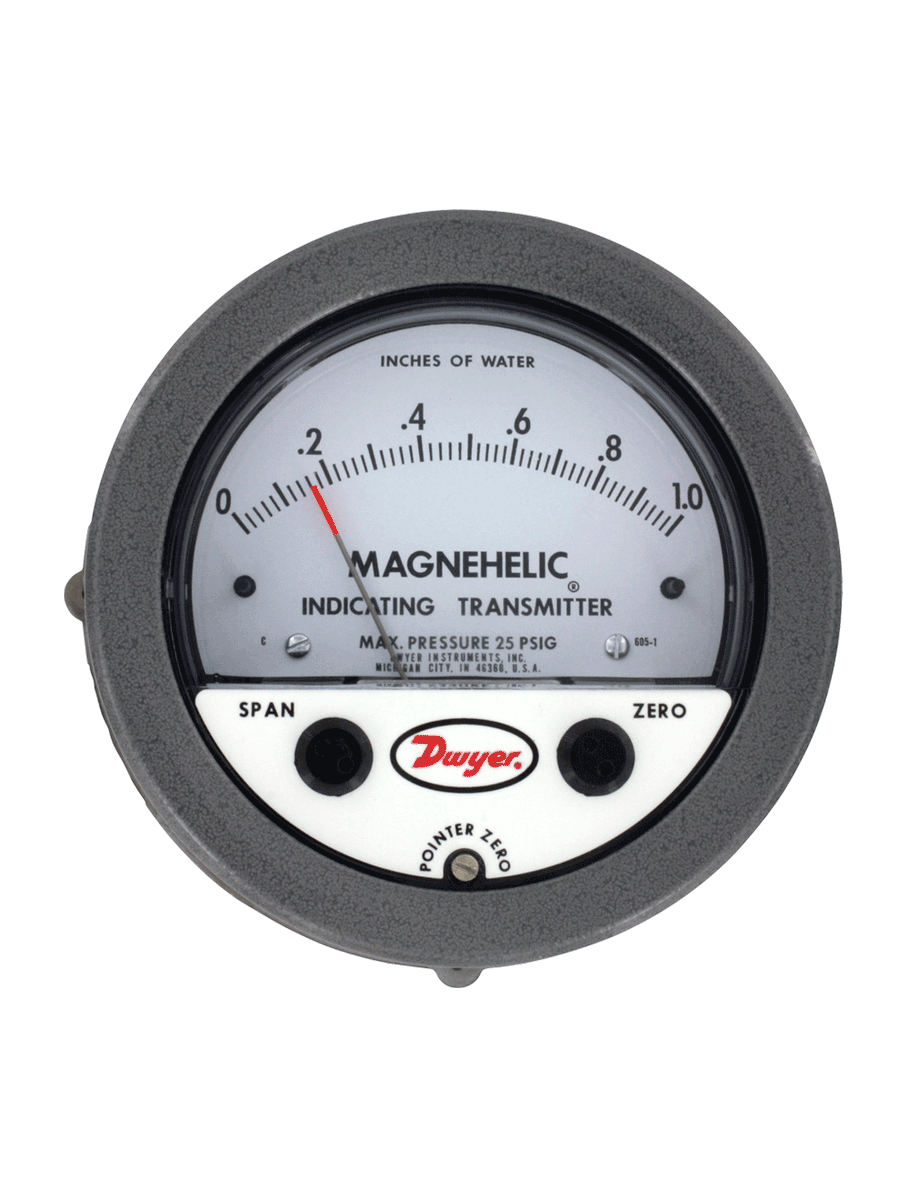

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 605-500PA

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 605-500PA Documents

Instruction Manual Series 605 Catalog Page 605 More Info

Overview

Details for 605-500PA

The Dwyer NCO-605-500PA Differential Pressure Transmitter is a highly accurate and reliable instrument designed to measure and transmit pressure differences in various industrial applications. With its rugged construction and advanced technology, this transmitter offers exceptional performance and durability, making it an ideal choice for demanding environments. Key Features: * Pressure Range: 0-500 PA * Output Signal: 4-20 mA * Non-Linearity: <Â±0.5% FS * Hysteresis: <Â±0.2% FS * Repeatability: <Â±0.1% FS * Temperature Compensation: 30-120Â°F * Ingress Protection: IP67 * NPT Pressure Ports: 1/4" Benefits: * Accurate and reliable pressure measurement * Versatile output signal for easy integration * High precision and repeatability for consistent readings * Wide temperature range for use in various environments * Robust housing for harsh industrial applications Applications: * HVAC systems * Pneumatic conveying * Differential pressure monitoring * Cleanroom monitoring * Medical equipment Our HVAC supply store offers this exceptional Dwyer differential pressure transmitter at the most competitive prices and with fast shipping. Contact us today to experience the best in industrial supply solutions!

Series 605 Magnehelic® Differential Pressure Indicating Transmitter

Same Size as Standard Magnehelic® Differential Pressure Gage

The Series 605 Magnehelic® Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system. The easily read dial gage is complimented by the two-wire, 4 to 20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The two-wire design with terminal strip on the rear simplifies connection in any 4 to 20 mA control loop powered by a 10 to 35 VDC supply.

NIST CALIBRATION available in Product Configurator.

Please see Series AT-605 for ATEX approved.

Product Applications

Monitor pressures in ducts, rooms, or total building pressures
Filter monitoring
Local indication of clean room pressures with process signal sent to control room

Easy to read gage permits viewing from far away
Patented design provides quick response to pressure changes means no delay in signaling and alerting to critical situations
Durable and rugged housing and high-quality components combined provides long-service life and minimized down-time
Optional stainless steel bezel is the same installation diameter as Magnehelic® gage and simplifies field upgrade to 605 indicating transmitter

Specifications

Series: 605 Magnehelic® Differential Pressure Indicating Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 605 Magnehelic® Differential Pressure Indicating Transmitter
: GAGE SPECIFICATIONS
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Accuracy: See Ordering page.
Stability: ±1% FS/yr.
Pressure Limits: See Ordering page.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Process Connections: 1/8" female NPT.
Size: 4" (101.6 mm) dial face; 5" (127 mm) OD x 2-11/16" (68.3 mm).
Weight: 1 lb; 12.6 oz (811 g).
Agency Approvals: CE.
: TRANSMITTER SPECIFICATIONS
Accuracy: See Ordering page (includes linearity; hysteresis; and repeatability).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Compensated Temperature Range: 32 to 120°F (0 to 48.9°C).
Thermal Effect: ±0.025% FS/°F (0.045% FS/°C).
Power Requirements: 10 to 35 VDC (2-wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Protected potentiometers.
Loop Resistance: DC: 0 to 1250 Ω maximum.
Current Consumption: DC: 38 mA maximum.
Electrical Connections: Screw terminal block.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
