605-3 | Differential pressure indicating transmitter | range 0-3.0
$480.56
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Dwyer InstrumentsSKU: 605-3
$480.56
Availability: IN STOCK
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
The product is not cancelable or returnable unless found defective
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

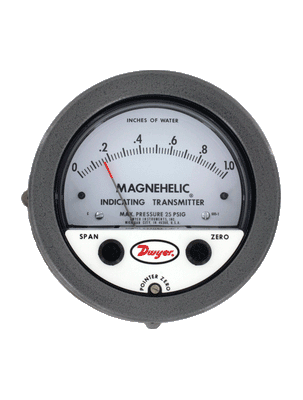

605-3 | Differential pressure indicating transmitter | range 0-3.0" w.c. | max. pressure 2 psi (13.79 kPa) | ±0.5% electrical accuracy | ±2% mechanical accuracy. | Dwyer Instruments

Dwyer Instruments | 605-3
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 605-3

Documents and manuals

Dwyer Instruments 605-3 Documents

Overview

Details for 605-3

Dwyer Instruments NCO-605-3: Precise Pressure Measurement for Industrial Applications The Dwyer Instruments NCO-605-3 is a highly accurate and reliable 0-3" indicating # transmitter designed to provide precise pressure measurement in demanding industrial environments. Its compact and rugged design makes it ideal for use in a wide range of applications, including: * HVAC systems * Compressors and pumps * Process control and monitoring * Air and gas flow measurement Key Features: * Calibrated accuracy of +/- 2% of full scale * Rugged aluminum housing for durability and corrosion resistance * Diaphragm-actuated sensor for high sensitivity and long life * Two wire operation for easy installation and maintenance * 4-20 mA output for compatibility with most monitoring and control systems Benefits: * Accurate and reliable pressure measurement ensures optimal system performance * Durable construction withstands harsh industrial conditions * Easy installation and maintenance saves time and resources * Versatile output signal provides seamless integration with monitoring and control systems Upgrade your industrial equipment with the Dwyer Instruments NCO-605-3 and experience precise pressure measurement. Our HVAC supply store offers the best prices and fast shipping for all your industrial supply needs. Shop now!

Series 605 Magnehelic® Differential Pressure Indicating Transmitter

Same Size as Standard Magnehelic® Differential Pressure Gage

The Series 605 Magnehelic® Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system. The easily read dial gage is complimented by the two-wire, 4 to 20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The two-wire design with terminal strip on the rear simplifies connection in any 4 to 20 mA control loop powered by a 10 to 35 VDC supply.

NIST CALIBRATION available in Product Configurator.

Please see Series AT-605 for ATEX approved.

Product Applications

  • Monitor pressures in ducts, rooms, or total building pressures
  • Filter monitoring
  • Local indication of clean room pressures with process signal sent to control room
  • Easy to read gage permits viewing from far away
  • Patented design provides quick response to pressure changes means no delay in signaling and alerting to critical situations
  • Durable and rugged housing and high-quality components combined provides long-service life and minimized down-time
  • Optional stainless steel bezel is the same installation diameter as Magnehelic® gage and simplifies field upgrade to 605 indicating transmitter

Specifications

Series
605 Magnehelic® Differential Pressure Indicating Transmitter
Category/Type
Pressure
Type
Differential Pressure
Series
605 Magnehelic® Differential Pressure Indicating Transmitter
GAGE SPECIFICATIONS
Service
Air and non-combustible; compatible gases.
Wetted Materials
Consult factory.
Accuracy
See Ordering page.
Stability
±1% FS/yr.
Pressure Limits
See Ordering page.
Temperature Limits
20 to 120°F (-6.67 to 48.9°C).
Process Connections
1/8" female NPT.
Size
4" (101.6 mm) dial face; 5" (127 mm) OD x 2-11/16" (68.3 mm).
Weight
1 lb; 12.6 oz (811 g).
Agency Approvals
CE.
TRANSMITTER SPECIFICATIONS
Accuracy
See Ordering page (includes linearity; hysteresis; and repeatability).
Temperature Limits
20 to 120°F (-6.67 to 48.9°C).
Compensated Temperature Range
32 to 120°F (0 to 48.9°C).
Thermal Effect
±0.025% FS/°F (0.045% FS/°C).
Power Requirements
10 to 35 VDC (2-wire).
Output Signal
4 to 20 mA.
Zero and Span Adjustments
Protected potentiometers.
Loop Resistance
DC: 0 to 1250 Ω maximum.
Current Consumption
DC: 38 mA maximum.
Electrical Connections
Screw terminal block.
Mounting Orientation
Diaphragm in vertical position. Consult factory for other position orientations.
