605-0 | Differential pressure indicating transmitter | range 0-.50" w.c. | max. pressure 10 psi (1.7 bar) | ±2% electrical accuracy | ±3% mechanical accuracy. | Dwyer Instruments

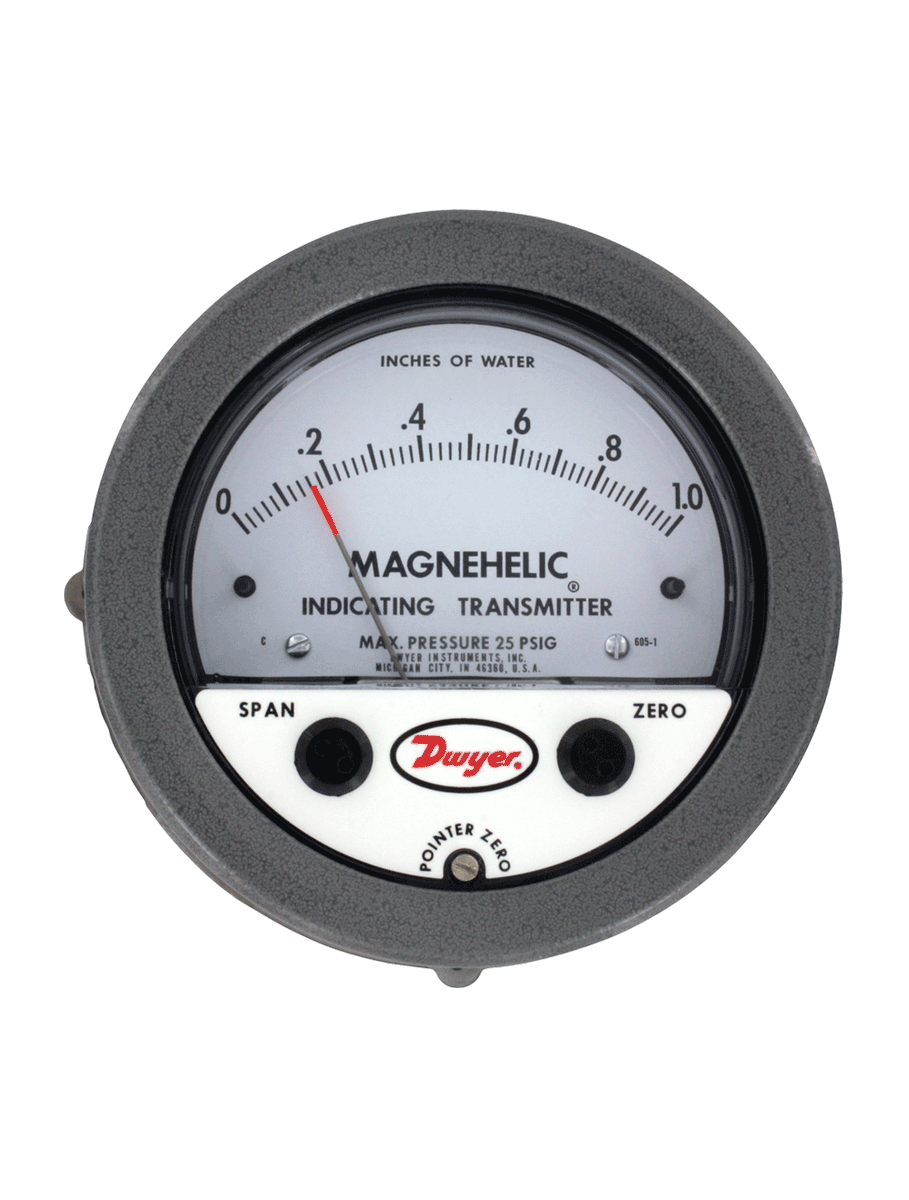

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 605-0

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 605-0 Documents

Instruction Manual Series 605 Catalog Page 605 More Info

Overview

Details for 605-0

Dwyer Instruments NCO-605-0: 0/.5" Indicating # Transmitter The Dwyer Instruments NCO-605-0 is a 0/.5" indicating pressure transmitter designed to provide accurate and reliable pressure measurements in a wide range of industrial applications. This compact and versatile transmitter features a rugged construction with a stainless steel diaphragm, providing excellent durability and resistance to harsh environments. The NCO-605-0 utilizes a piezoresistive sensor to convert pressure into an electrical signal, ensuring high accuracy and stability. Its 4-20mA output allows for easy integration into various control systems, enabling remote monitoring and data acquisition. The bright LED display provides clear and precise pressure readings even in low-light conditions. This transmitter is ideal for monitoring pressure in various applications, including process control, HVAC systems, pump control, and fluid power systems. Its compact size and NPT-style process connection make it easy to install in tight spaces, while its wide pressure range of 0-500 psi covers a wide range of industrial needs. With its robust construction, accurate performance, and versatile design, the Dwyer Instruments NCO-605-0 0/.5" Indicating # Transmitter is an exceptional choice for pressure measurement in demanding industrial environments. Our HVAC supply store is your trusted source for Dwyer Instruments products. We offer competitive prices, fast shipping, and expert technical support. Contact us today for more information or to place an order.

Series 605 Magnehelic® Differential Pressure Indicating Transmitter

Same Size as Standard Magnehelic® Differential Pressure Gage

The Series 605 Magnehelic® Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system. The easily read dial gage is complimented by the two-wire, 4 to 20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The two-wire design with terminal strip on the rear simplifies connection in any 4 to 20 mA control loop powered by a 10 to 35 VDC supply.

NIST CALIBRATION available in Product Configurator.

Please see Series AT-605 for ATEX approved.

Product Applications

Monitor pressures in ducts, rooms, or total building pressures
Filter monitoring
Local indication of clean room pressures with process signal sent to control room

Easy to read gage permits viewing from far away
Patented design provides quick response to pressure changes means no delay in signaling and alerting to critical situations
Durable and rugged housing and high-quality components combined provides long-service life and minimized down-time
Optional stainless steel bezel is the same installation diameter as Magnehelic® gage and simplifies field upgrade to 605 indicating transmitter

Specifications

Series: 605 Magnehelic® Differential Pressure Indicating Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 605 Magnehelic® Differential Pressure Indicating Transmitter
: GAGE SPECIFICATIONS
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Accuracy: See Ordering page.
Stability: ±1% FS/yr.
Pressure Limits: See Ordering page.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Process Connections: 1/8" female NPT.
Size: 4" (101.6 mm) dial face; 5" (127 mm) OD x 2-11/16" (68.3 mm).
Weight: 1 lb; 12.6 oz (811 g).
Agency Approvals: CE.
: TRANSMITTER SPECIFICATIONS
Accuracy: See Ordering page (includes linearity; hysteresis; and repeatability).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Compensated Temperature Range: 32 to 120°F (0 to 48.9°C).
Thermal Effect: ±0.025% FS/°F (0.045% FS/°C).
Power Requirements: 10 to 35 VDC (2-wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Protected potentiometers.
Loop Resistance: DC: 0 to 1250 Ω maximum.
Current Consumption: DC: 38 mA maximum.
Electrical Connections: Screw terminal block.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
